Software Highlight

5-Axis CMM Scan Paths

Technique:  Helical Scan

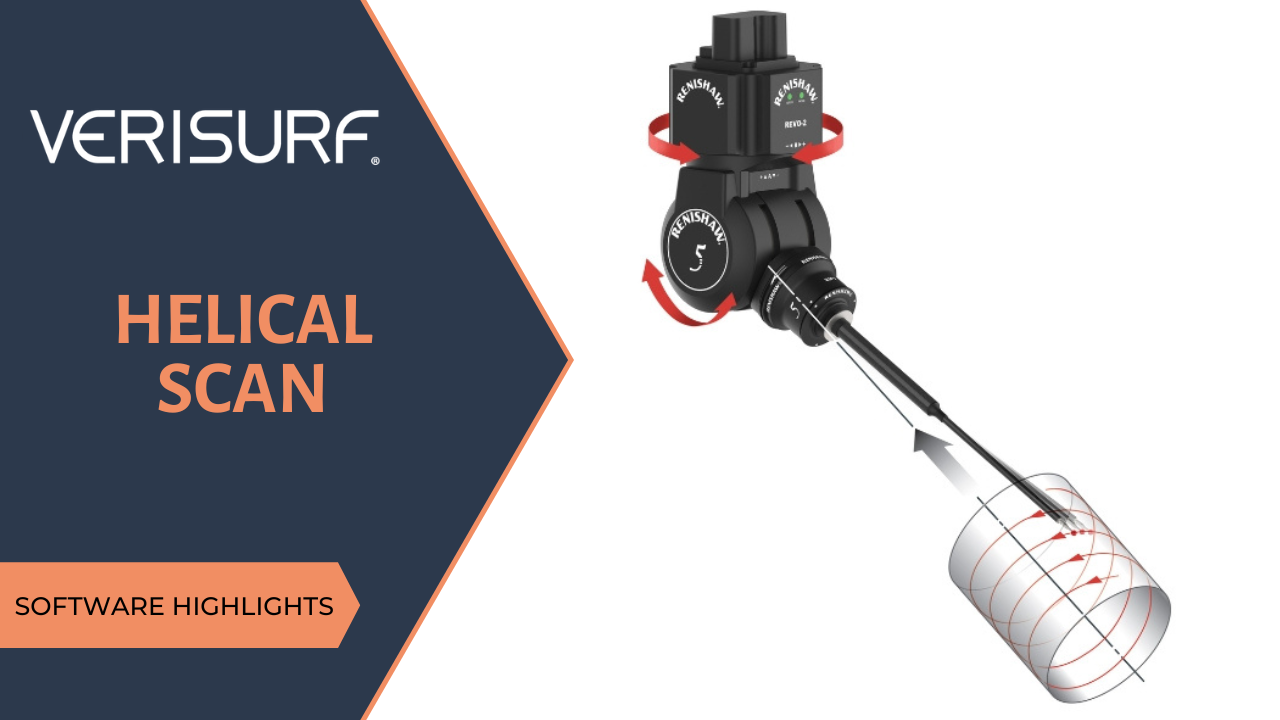

HELICAL SCAN is a 5-axis CMM tactile scanning technique. It is designed to move along the axis of an inside or outside cylinder or cone. During the scanning process, the helical scan traverses along the axis at a uniform length per revolution. The effect is a helical path capturing a large data point set over the full defined length.

This scan type is another productivity-enhancing method that allows higher speed tactile scanning without reducing the accuracy typically associated with higher speeds. The inner bore of the propeller presents an excellent application of the HELICAL SCAN.

3D Metrology Software, Training and CMMs

Path programming and editing of this technique is intuitive and easy. Both cycle times as well as programming time are reduced with HELICAL SCAN and Verisurf.

3D Metrology Software, Training and CMMs

Verisurf’s Full-Featured CAD Enhances CMM Pathing

Verisurf’s CAD foundation enables us to better recognize surfaces and create complex CMM scanning paths to gain superior performance from 5-axis CMM scanning technology.
