Scanning Inspection & Reverse Engineering with the Scantech KSCAN-MAGIC and Verisurf Software

3D Metrology Software, Training and CMMs

THE COMPLETE SOLUTION

3D Scanning Inspection & Reverse Engineering of Small to Large Objects with the Scantech KSCAN-MAGIC and Verisurf Software

The Scantech KSCAN-MAGIC powered by Verisurf Scan Data Suite of software, and optimized by Verisurf Training Services is the perfect and complete solution for the scanning of small to large objects and similar measurement projects. KSCAN-Magic, the cutting-edging composite 3D scanner that integrates infrared and blue lasers in one versatile instrument, excels at a wide range of use-cases. Verisurf, as the original cross-platform, enterprise metrology software, has been optimized for portable systems in real-world applications, making it the most complete and user-centric solution available.

This composite 3D scanner boasts five standard operating modes: large-area scanning with parallel infrared lasers, ultra-fast scanning with blue laser crosses, hyperfine scanning with blue parallel lasers, deep-hole scanning with a single blue laser, and a built-in large-area photogrammetry system.

3D Metrology Software, Training and CMMs

Verisurf software is as portable-friendly as it gets. The combination of the Verisurf software with the KSCAN-MAGIC will be delivered with full and fast integration within your manufacturing and quality regimes by Verisurf custom training. From years of development and customer feedback in all aspects of portable metrology, Verisurf optimizes the KSCAN-MAGIC with many features and special tools for the solo operator. Even those with minimal training can be productive quickly.

3D Metrology Software, Training and CMMs
3D Metrology Software, Training and CMMs

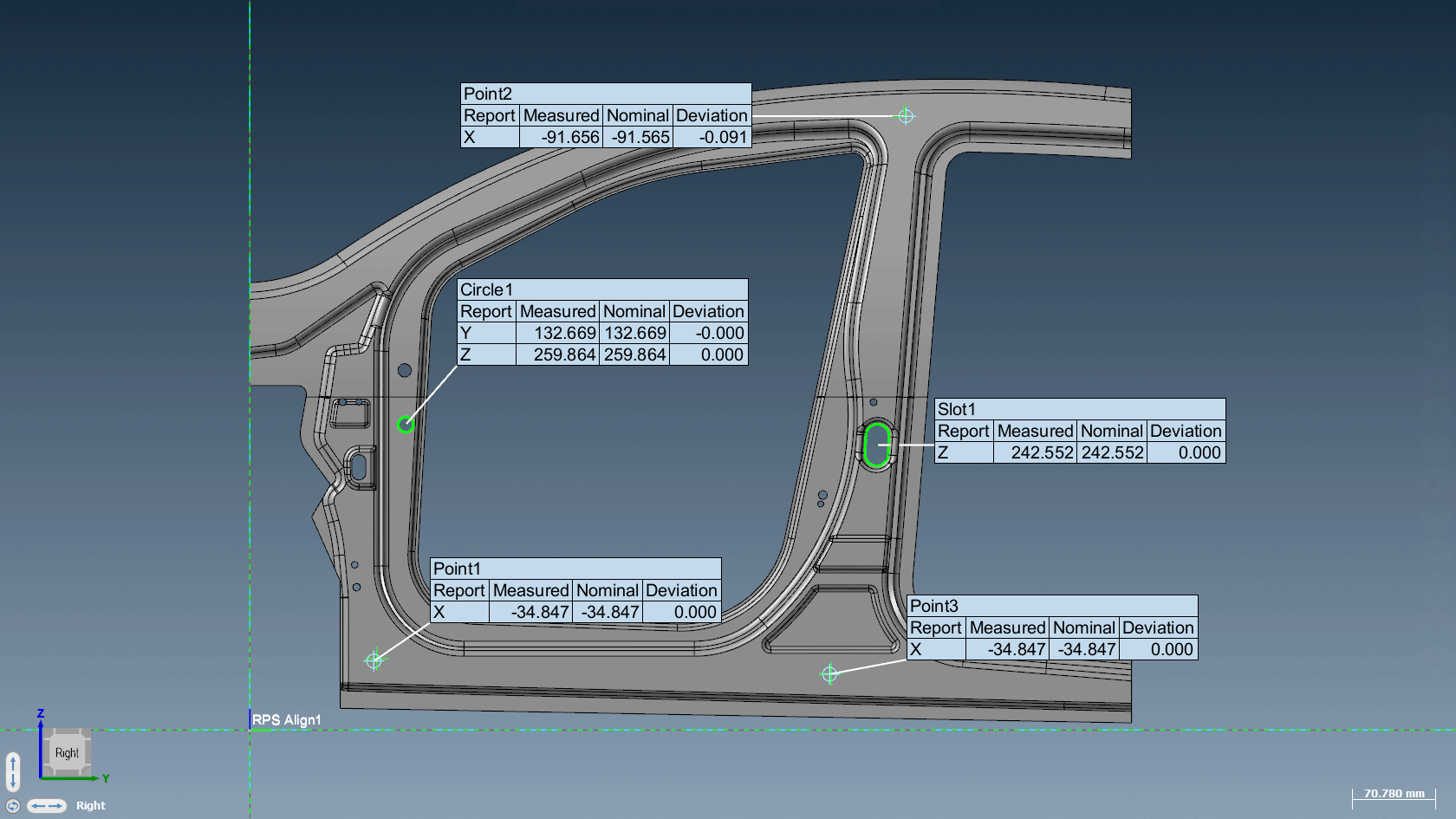

Read our article on RPS Alignment, especially relevant in the automotive industry.

KSCAN-MAGIC Basic Specifications

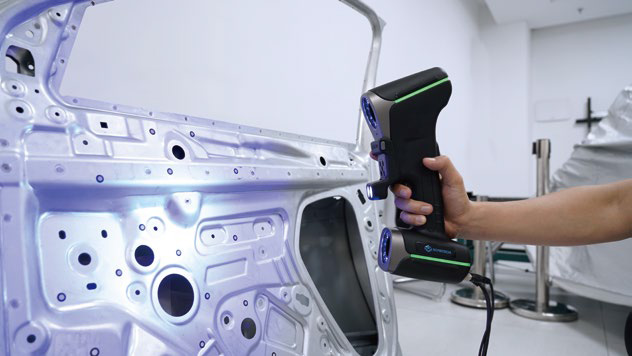

KSCAN-Magic is lightweight and portable and can conduct 3D measurements anywhere and anytime regardless of vibration, temperature, and humidity. Moreover, it is capable of 3D scanning various surfaces to capture precise 3D data, and it performs well even in 3D scanning reflective and black surfaces. KSCAN-Magic incorporates a multi-spectrum 3D scanning and calibration technique, combining exceptional efficiency and uncompromising accuracy. It features fast scanning speed, high accuracy, great detail capturing, large scanning area, and extended depth-of-field that greatly optimize the 3D measurement workflows.

  • Metrology-grade measuring
  • Scanning accuracy to 0.020 mm (0.0008 in.) [volumetric accuracy 0.015 mm + 0.012 mm/m (0.0006 in + 0.0005 in) with integrated photogrammetry]
  • Scanning rate up to 4,150,000 measurements per second
  • Depth of field of 925 mm (36 inches)
  • Five operating modes
  • Built-in, large-area photogrammetry
  • Multi-spectrum 3D scanning
  • Deep hole scanning
  • Capture fine detail with max. resolution of 0.010 mm
3D Metrology Software, Training and CMMs

Verisurf SCAN DATA SUITE

The Verisurf SCAN DATA SUITE is the ideal optimizer for handheld 3D scanners and similar technologies. Users benefit from a complete toolbox for both reverse engineering and profile inspection, especially suited to complex contours. Full-powered CAD in a comprehensive but easy to learn interface, and workflows streamlined for today’s operators, provide the user experience that technical professionals want.

  • Fast import of large point clouds, meshes, and CAD models in any industry-standard format. Even large datasets and files import quickly.
  • Precise rendering of scan data quickly identifies voids and outliers for easy cleanup and decimation.
  • Scan data alignment and mesh editing tools, preparation for inspection analysis.
  • Best-fit data to CAD with extensive features to control the fit to suit your needs.
  • Project/compare data to any CAD entity type for precision deviation analysis of measurement profile and position.
  • Create brilliant color map images and detailed analysis inspection reports in any desired output format.

(Includes modules: CAD + REVERSE + ANALYSIS)

Verisurf Training & Support Services

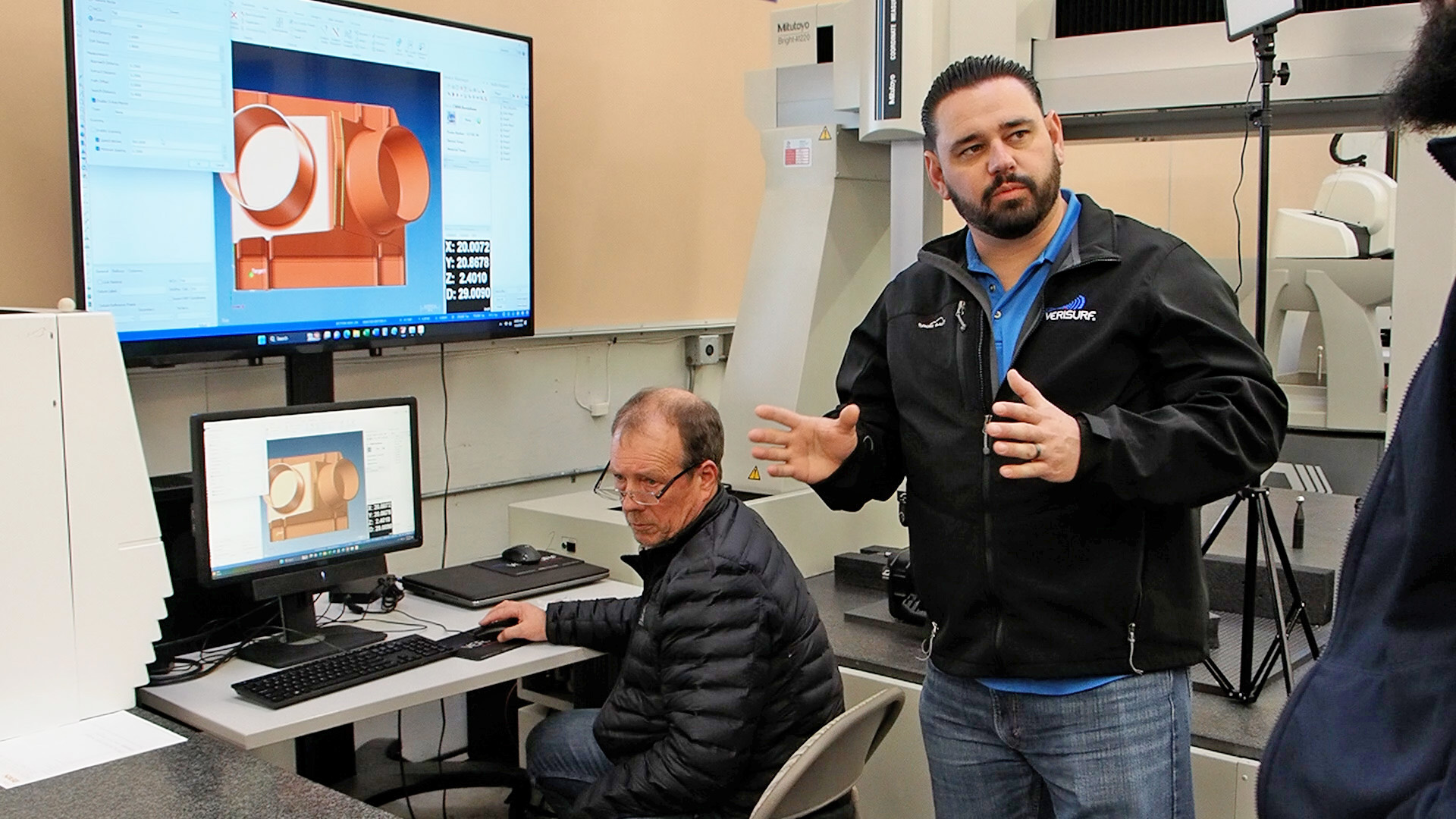

Verisurf live training classes are taught by experienced dimensional metrologists skilled in the application of CMMs, portable CMM arms and laser trackers, scanners, and Verisurf to a wide variety of 3D measurement applications including: inspection automation, tool building, 3D scanning and reverse engineering.

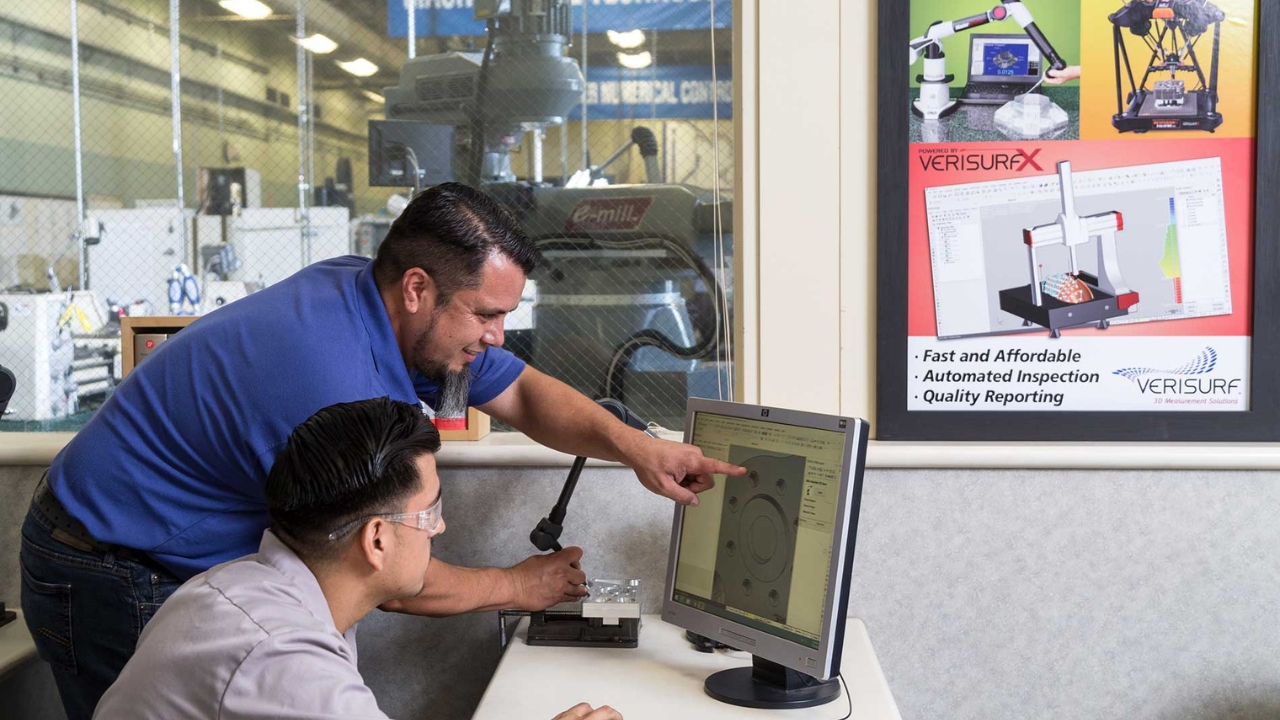

Verisurf instructor-lead training classes are customized to each customer’s applications, parts, processes and people. Courses are held at your choice of either the Verisurf corporate training center or onsite at your facility. Training is also backed up with self-paced learning options to help sustain evolving staff and circumstances.

Our technical support professionals and our customer-service representatives provide an attentive, personal experience. We came from industry so we know what our customers face and we won’t leave you hanging.
