Connecting Metrology & Manufacturing for Global Success

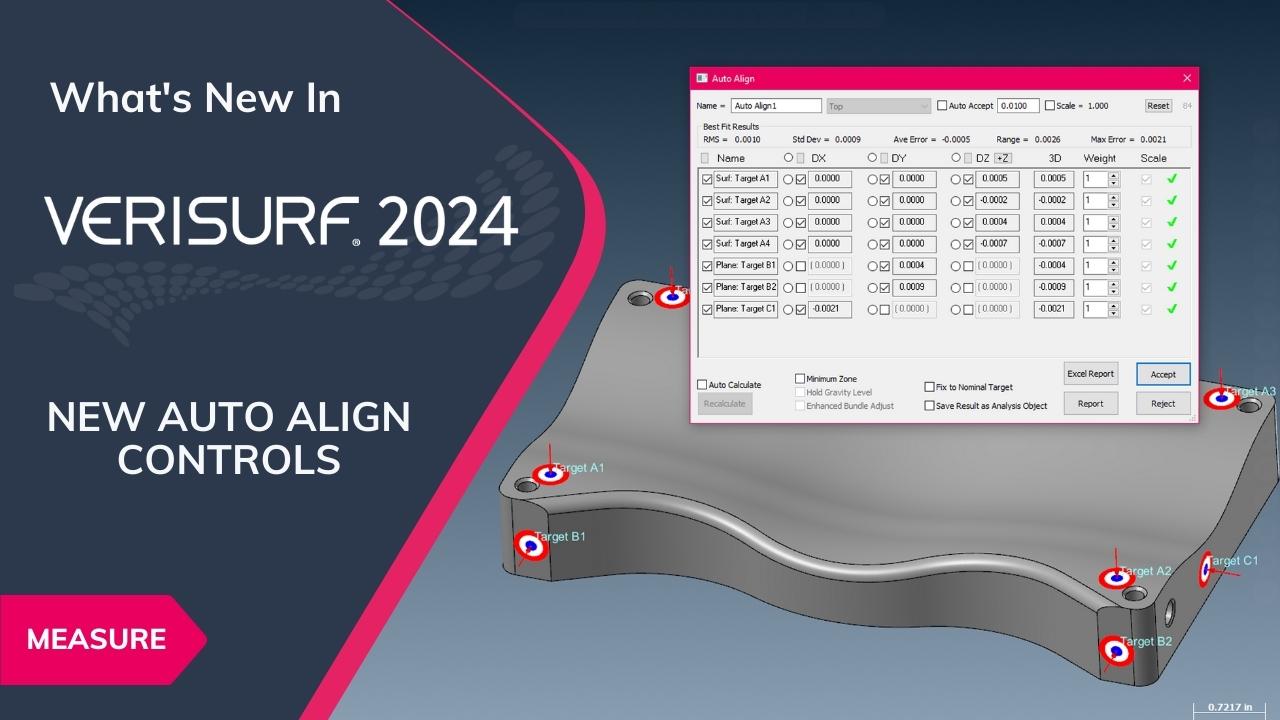

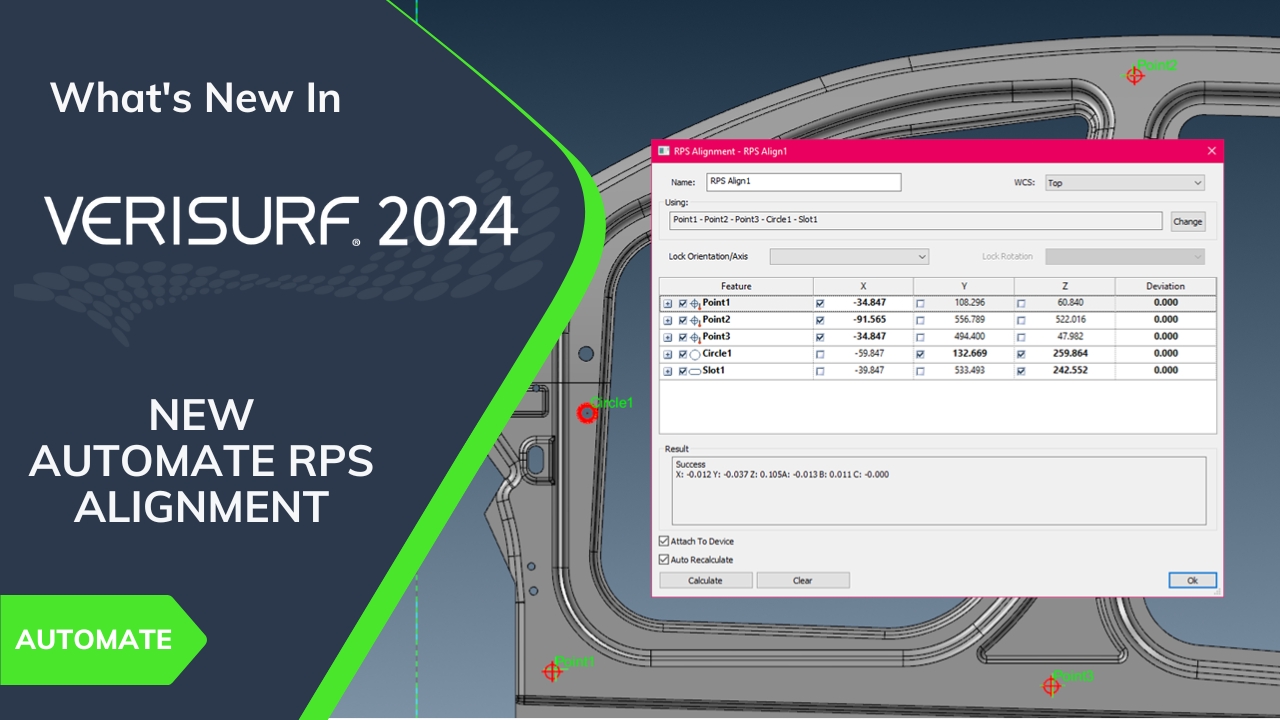

- Automate alignments from points, features, constructs, and surface points
- Advanced control for orientation, rotation, position, weight, and target type
- Simplifies alignment strategies required by the automotive industry and more

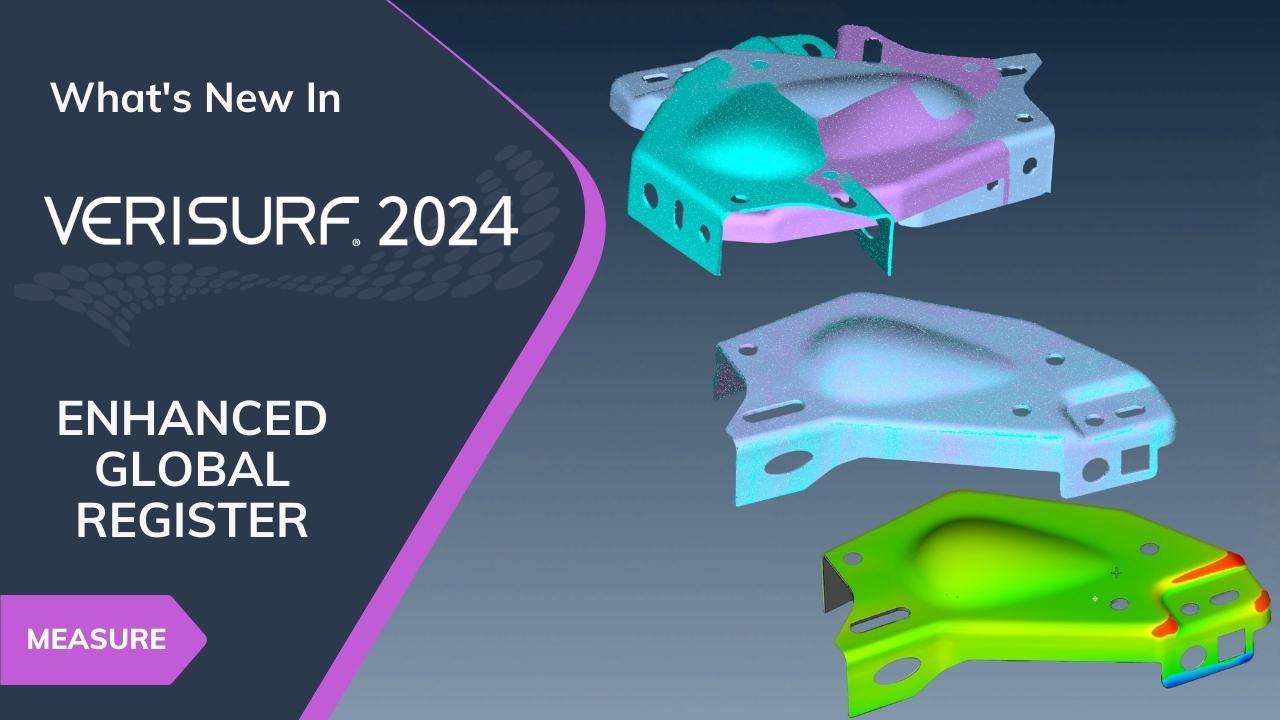

- Rapid sampling for fast registration of cloud to cloud, cloud to mesh, mesh to mesh, cloud and mesh to CAD
- Refine registration for improved alignment between datasets
- Supports manual inspections and automated inspection plans

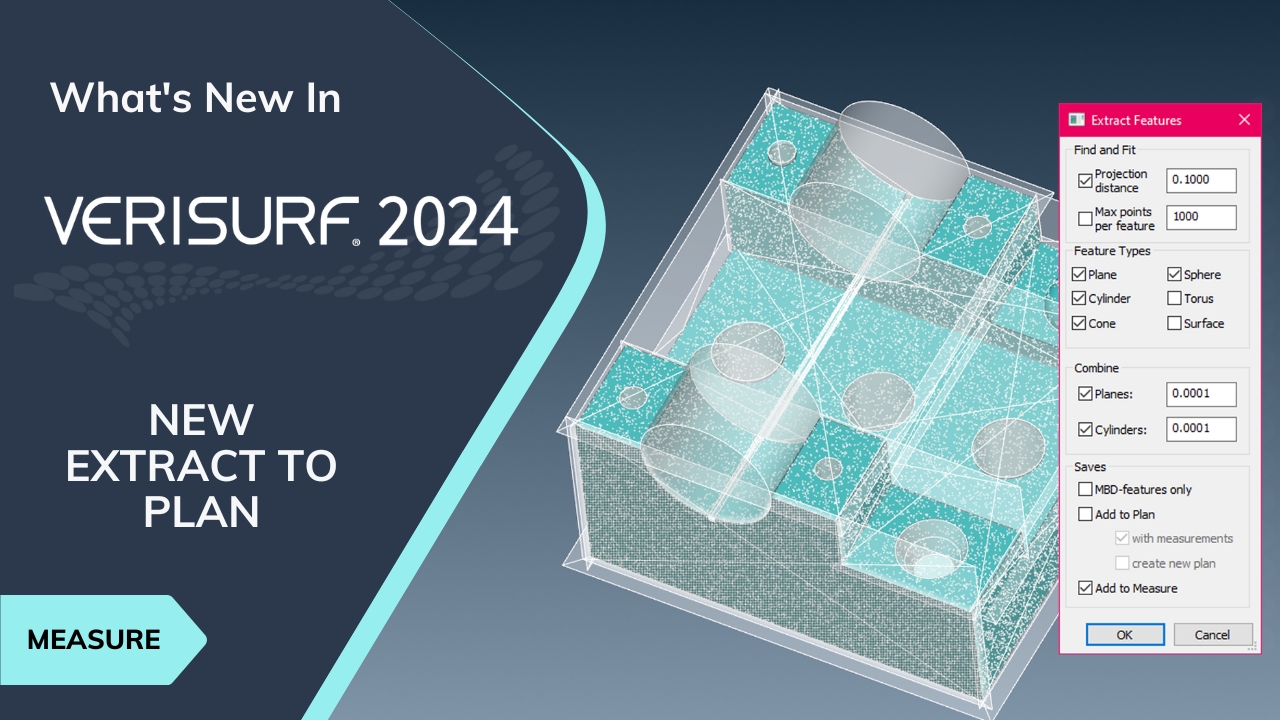

- Easy, fast, and reliable feature extraction from clouds and meshes
- Auto feature and nominal recognition from CAD
- Extract all, selected, or features defined by MBD

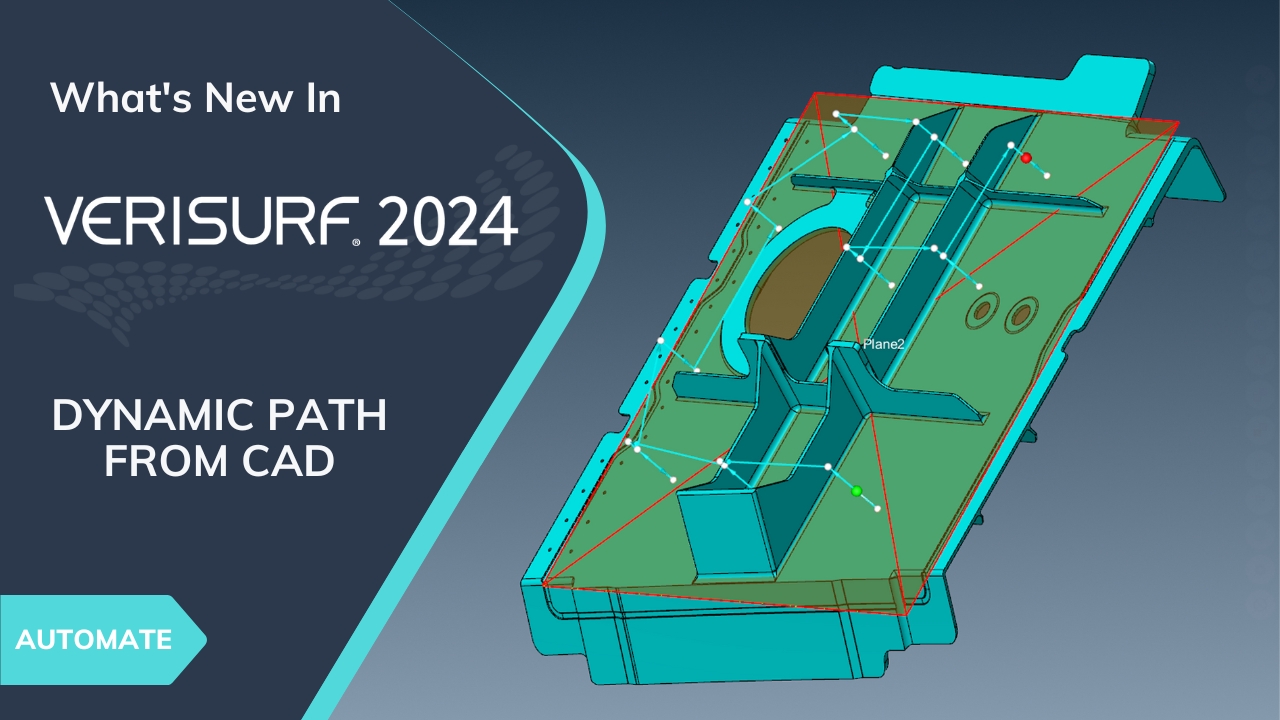

- Dynamically create or add path points to any object
- Automatic in-path collision avoidance
- Supports 3-axis and 5-axis systems

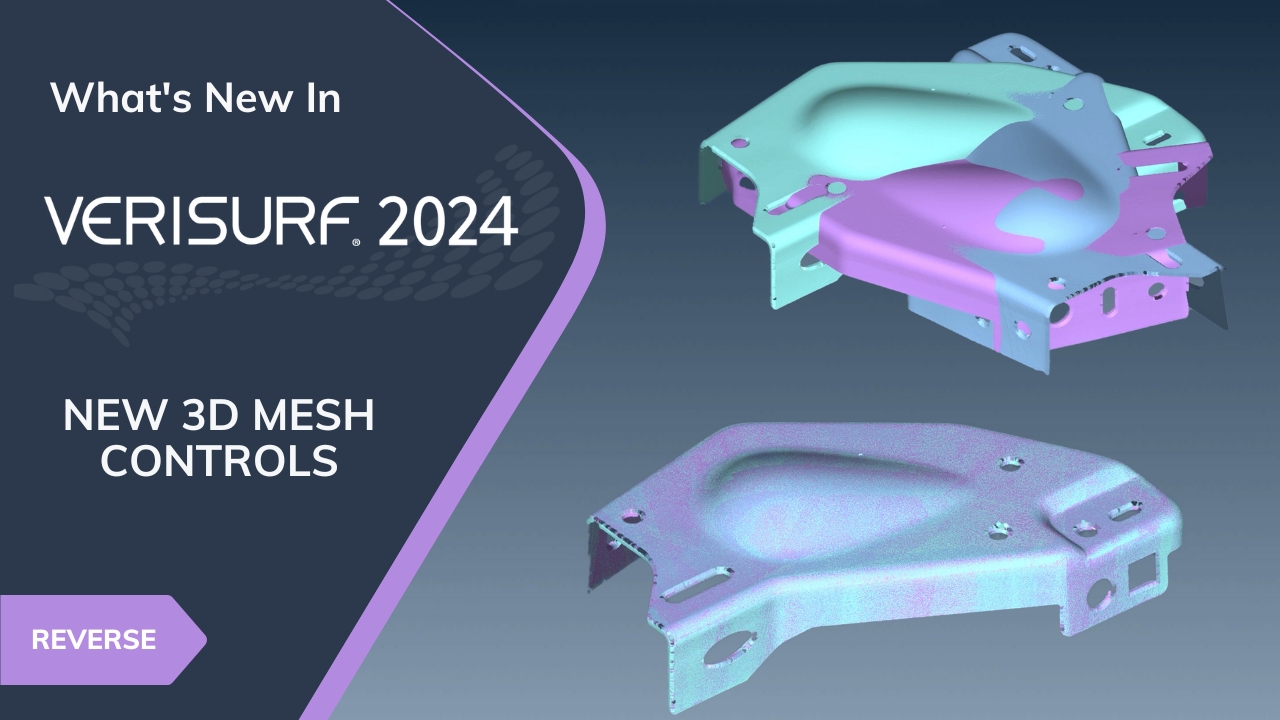

- Register selection to align multiple clouds for quality meshing
- Use cloud normals improves mesh speed and orientation
- Added Power Mesh to 3D Mesh Controls to improve the user experience

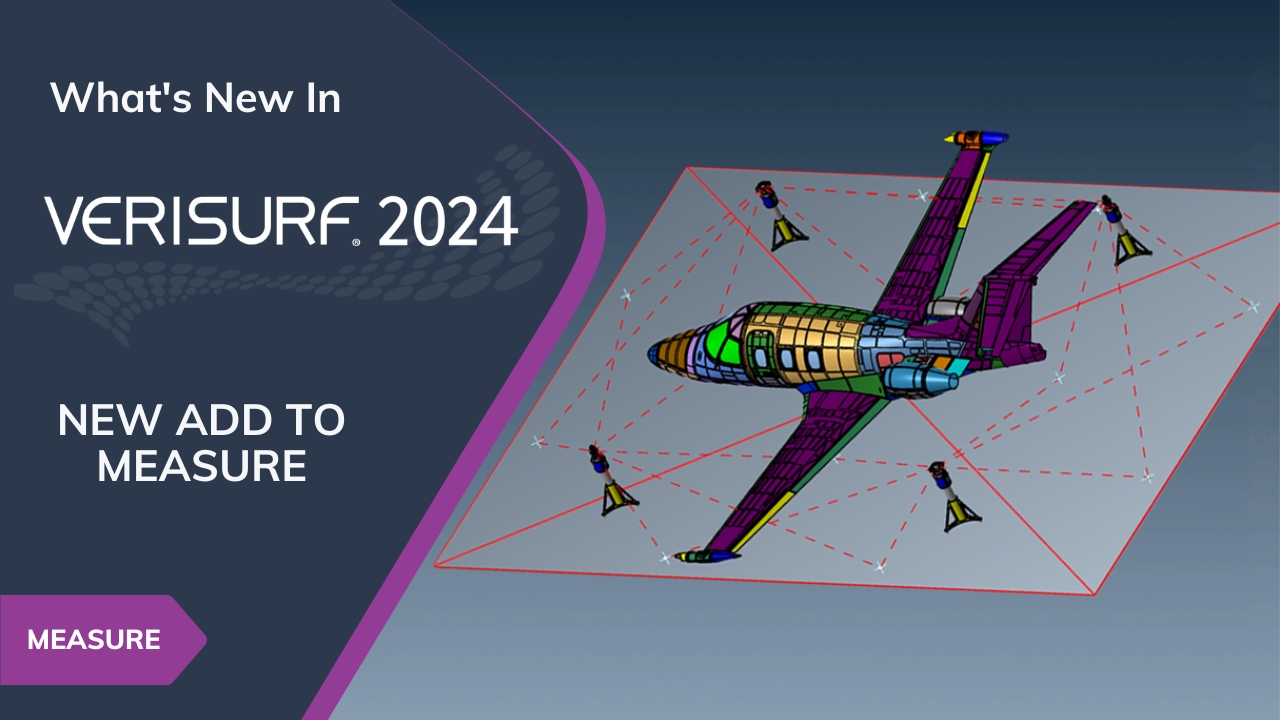

- Add points to existing features
- Add points from multiple stations
- Supports all measurement devices

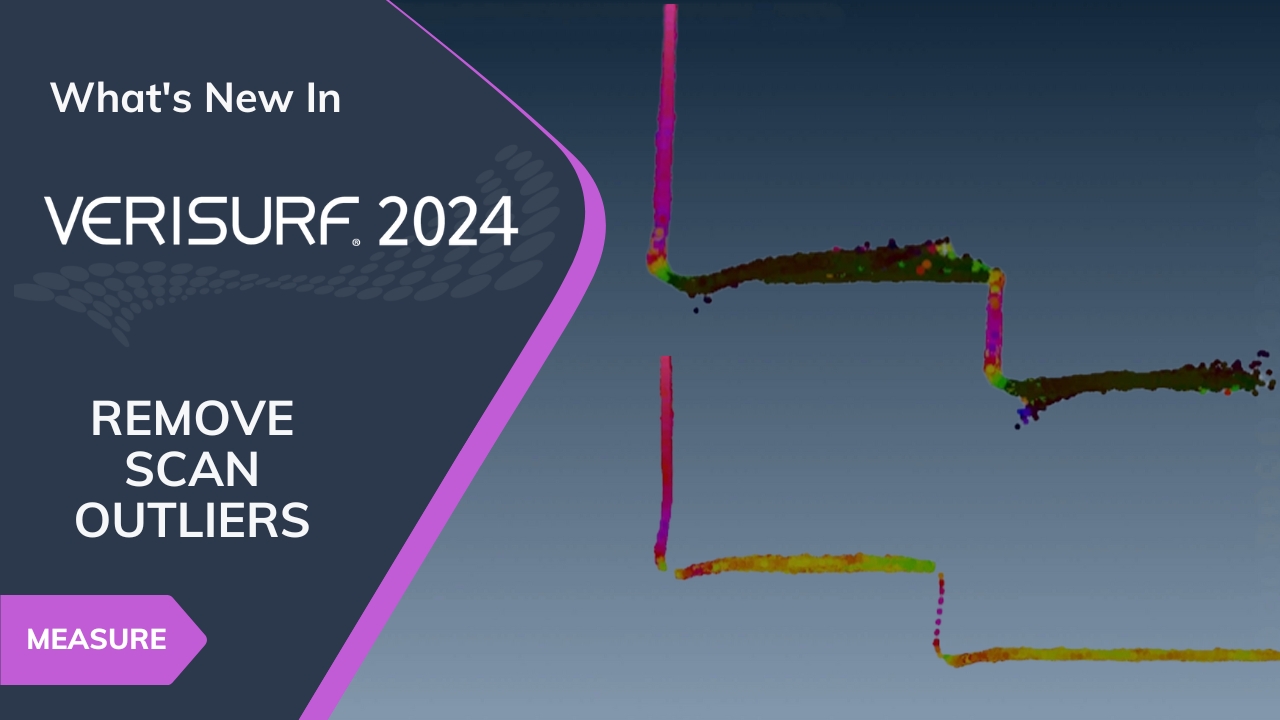

- Real-time outlier removal from laser line scanners
- Supports more than 1.2 million points per second
- Improve scan quality for inspection and reverse engineering

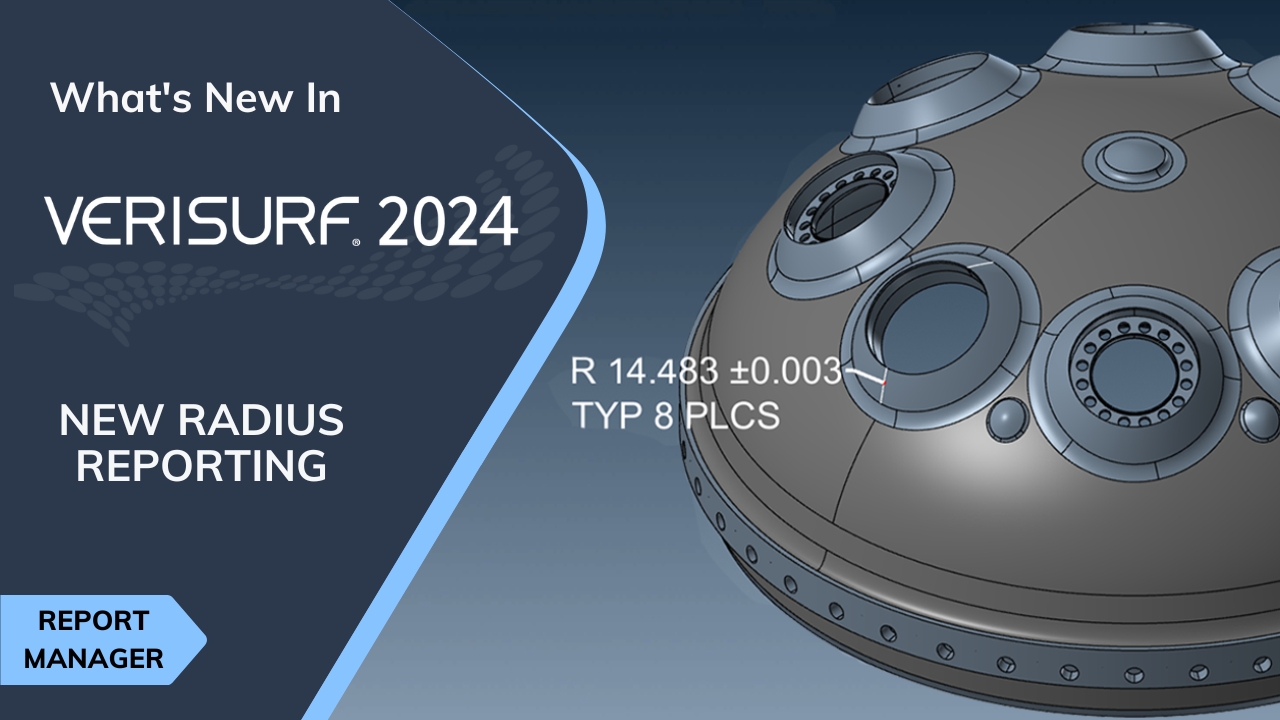

- Simplified min/max reporting of small arc sections of radius dimensions
- Supports manual inspection and automated inspection plans
- Supports circles, cylinders, and spheres

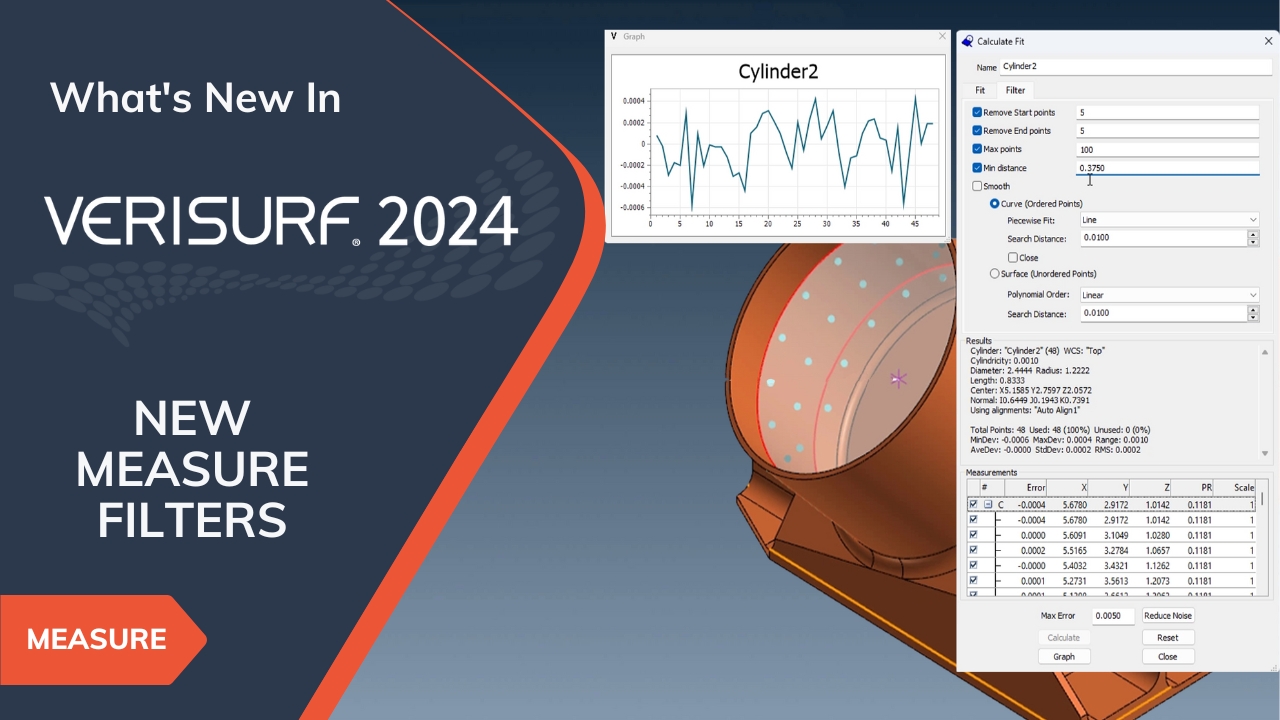

- Interactive feature-fitting filters
- High-frequency noise removal from tactile scanning
- Remove the start and end data from tactile scanning to reduce errors from acceleration and deceleration

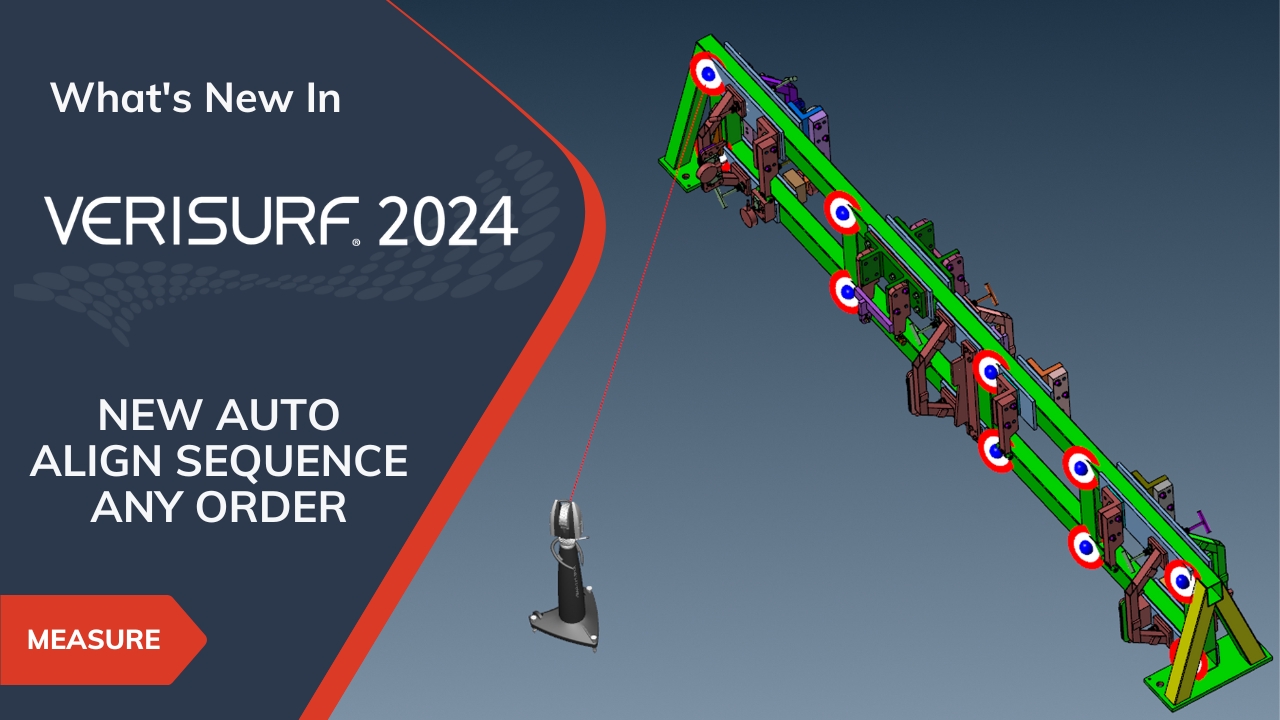

- Align to targets in any order
- Supports points, surfaces, and features
- Simplifies alignment of portable arms and laser trackers
- Hold Gravity Level for laser tracker applications
- Intelligent axis component controls to achieve desired alignment strategy
- Set highest point, to constrain the alignment to the highest Z measurement when aligning to a freeform surface as a primary datum

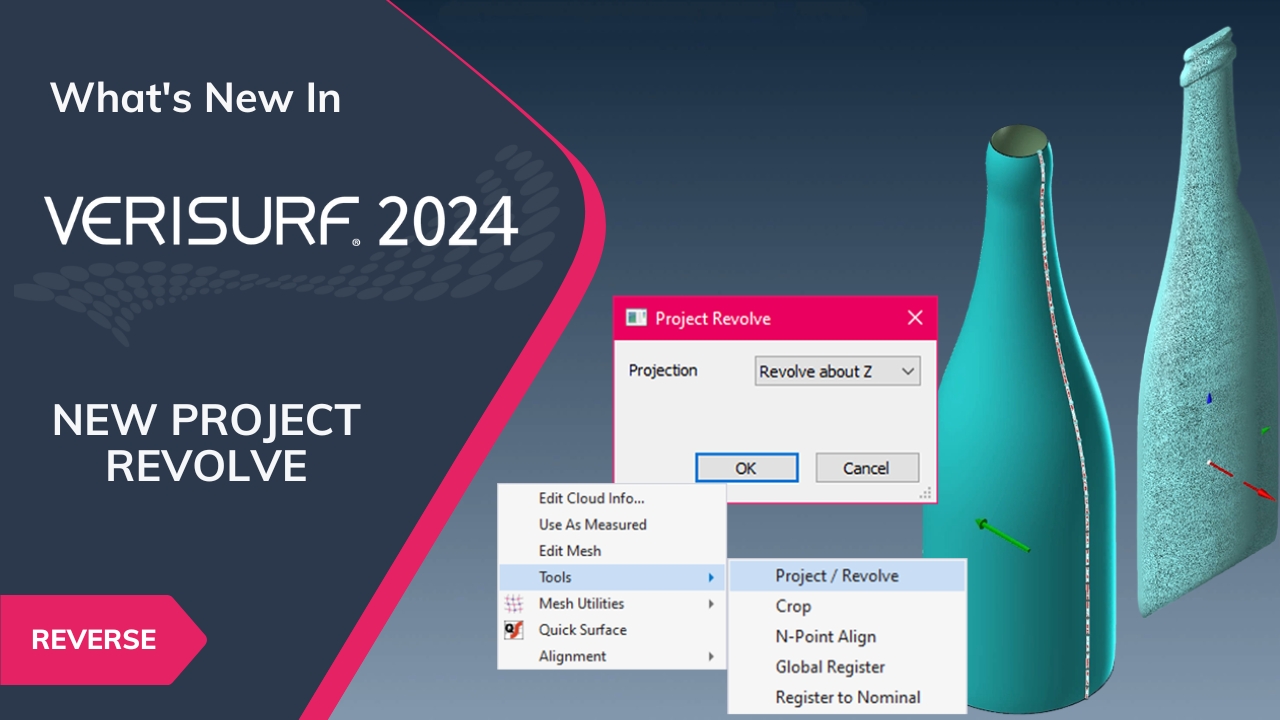

- Simplifies surface of revolution reverse engineering
- Create 2D cloud from a 3D cloud (silhouette)
- Supports using an axis of revolution or plane of projection

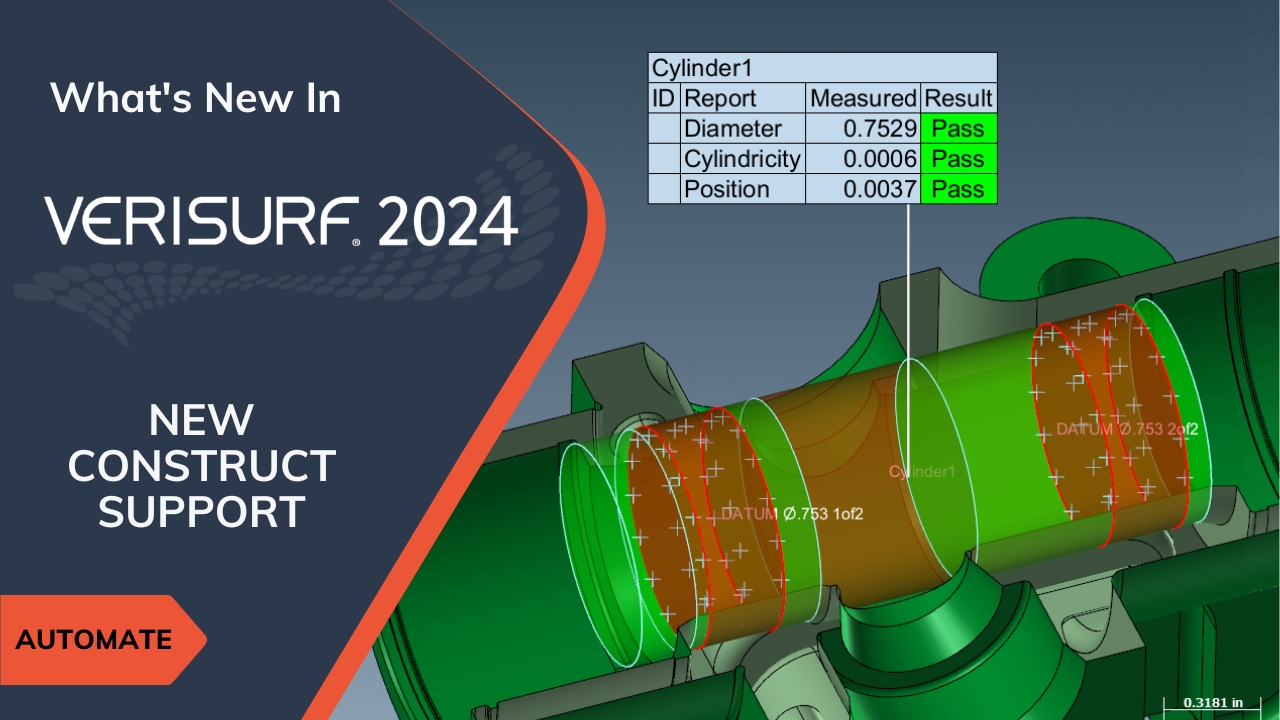

- Control feature constructs using center points or measured points
- Flexibility to use points from one or more measured features to construct a new feature
- Evaluate features using alternate fit methods without remeasuring

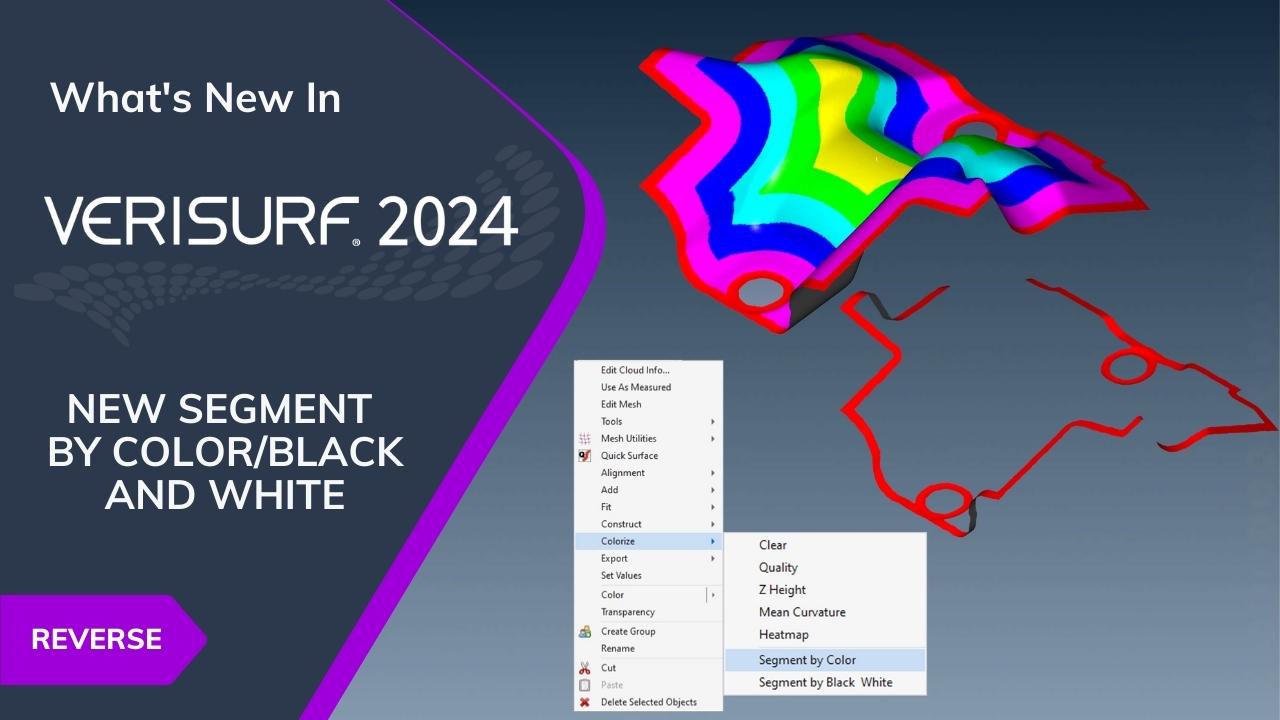

- Segment colored regions into independent datasets
- Simplifies data management
- Supports Clouds and Meshes

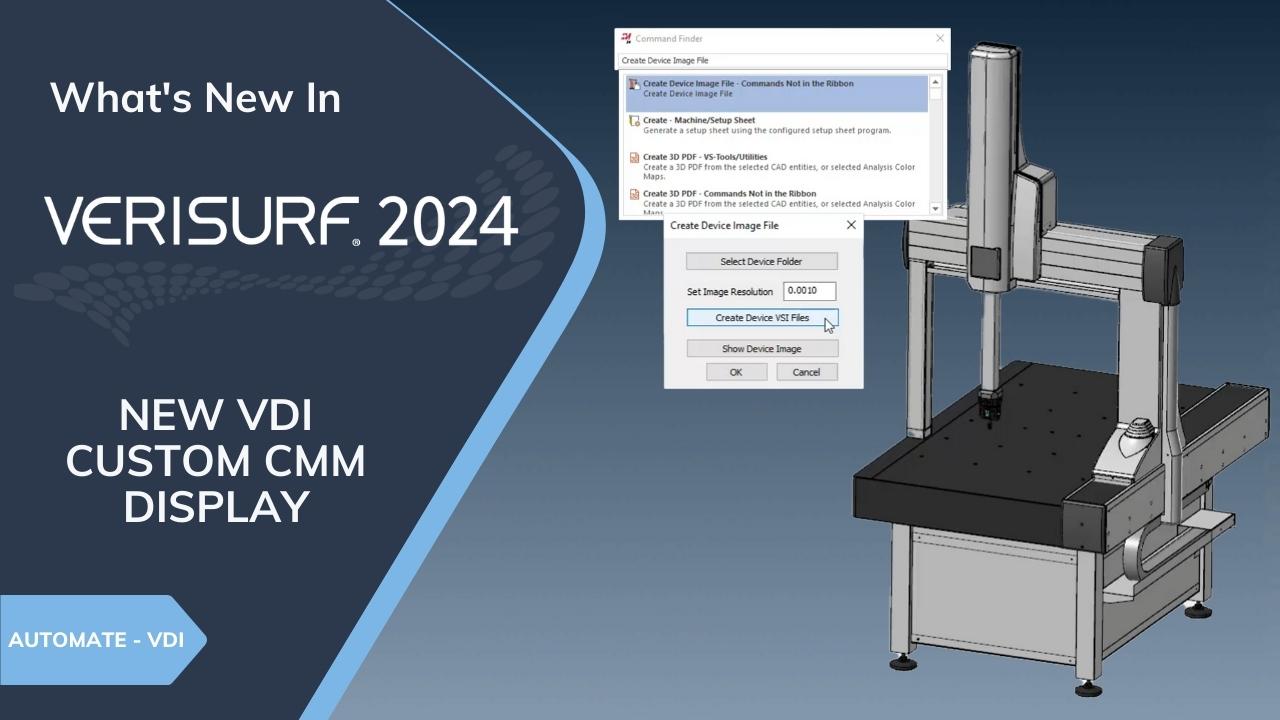

- Create and display your own 3D CMM model
- Supports 3-axis and 5-axis systems
- Use OEM models or create your own using Verisurf CAD
- Ultrasonic thickness evaluation
- Metal parts ranging from 1 mm to 20 mm
- Accuracy better than .010 mm
- Surface finish/roughness evaluation
- Variety of surfaces, including bores as small as 5 mm in diameter
- Output Ra, RMS, and raw data
Introducing Verisurf 2024

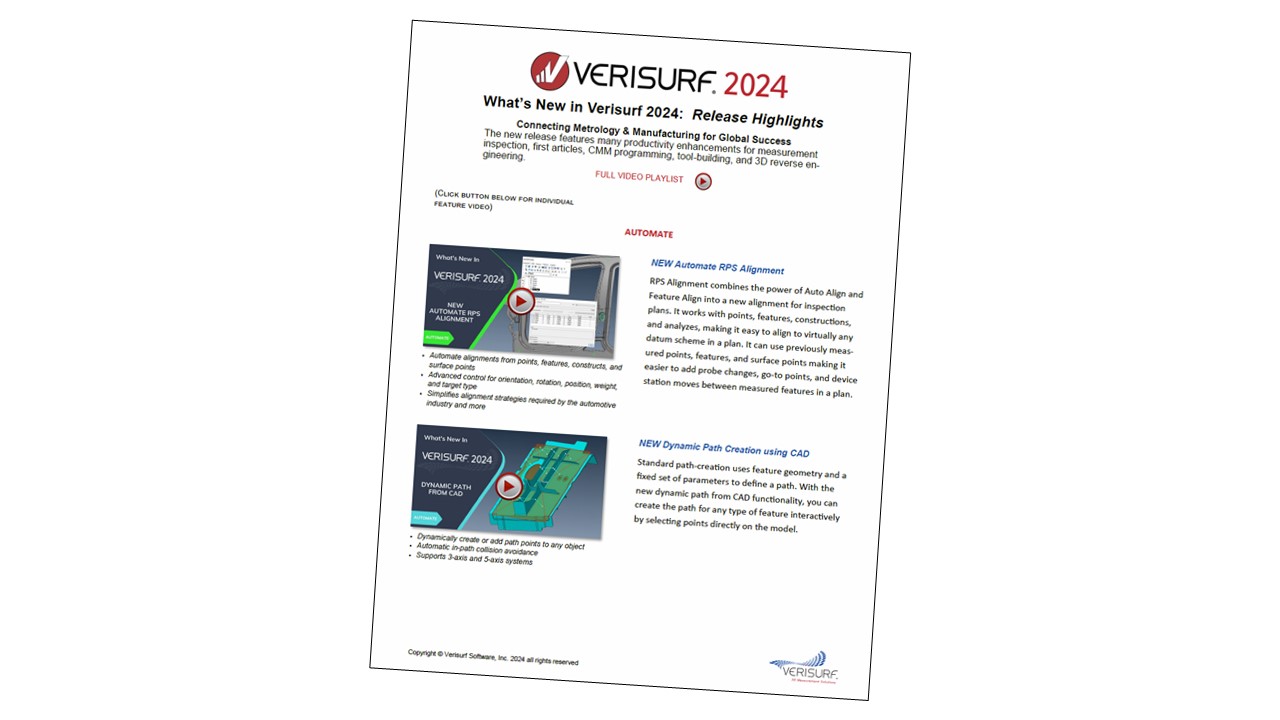

Release Highlights PDF
In addition to the capabilities illustrated above, Verisurf 2024 includes more new functions and refinements to existing features. Contact us for a live or online demonstration or with your questions. Verisurf 2024 is another new release driven by our customers, partners, and professionals facing new measurement challenges in the real world.
