Powerful, Versatile Reverse Engineering Software

Features Overview

KEY BENEFITS

Verisurf REVERSE is a complete reverse engineering solution offering innovative tools to create CAD models from points, clouds, and meshes.

REVERSE optimizes the performance of probing and scanning technologies such as portable arms, laser trackers, structured light, laser scanners, and many others.

3D Metrology Software, Training and CMMsREVERSE

Powerful set of point cloud and mesh editing and optimizing tools

3D Metrology Software, Training and CMMsREVERSE

Easily transform data from complex contours into surface, mesh, or solids in your choice of CAD format

3D Metrology Software, Training and CMMsREVERSE
Geometric features are automatically created using NIST-tested math, and results easily adjusted for design intent or saved in the as-built condition

Measure or Import Scan Data

  • Import points, clouds or meshes in any file format, or use Verisurf MEASURE to scan or probe data as you go
  • Create geometric features directly in CAD as they are measured or fit them from points, clouds and meshes

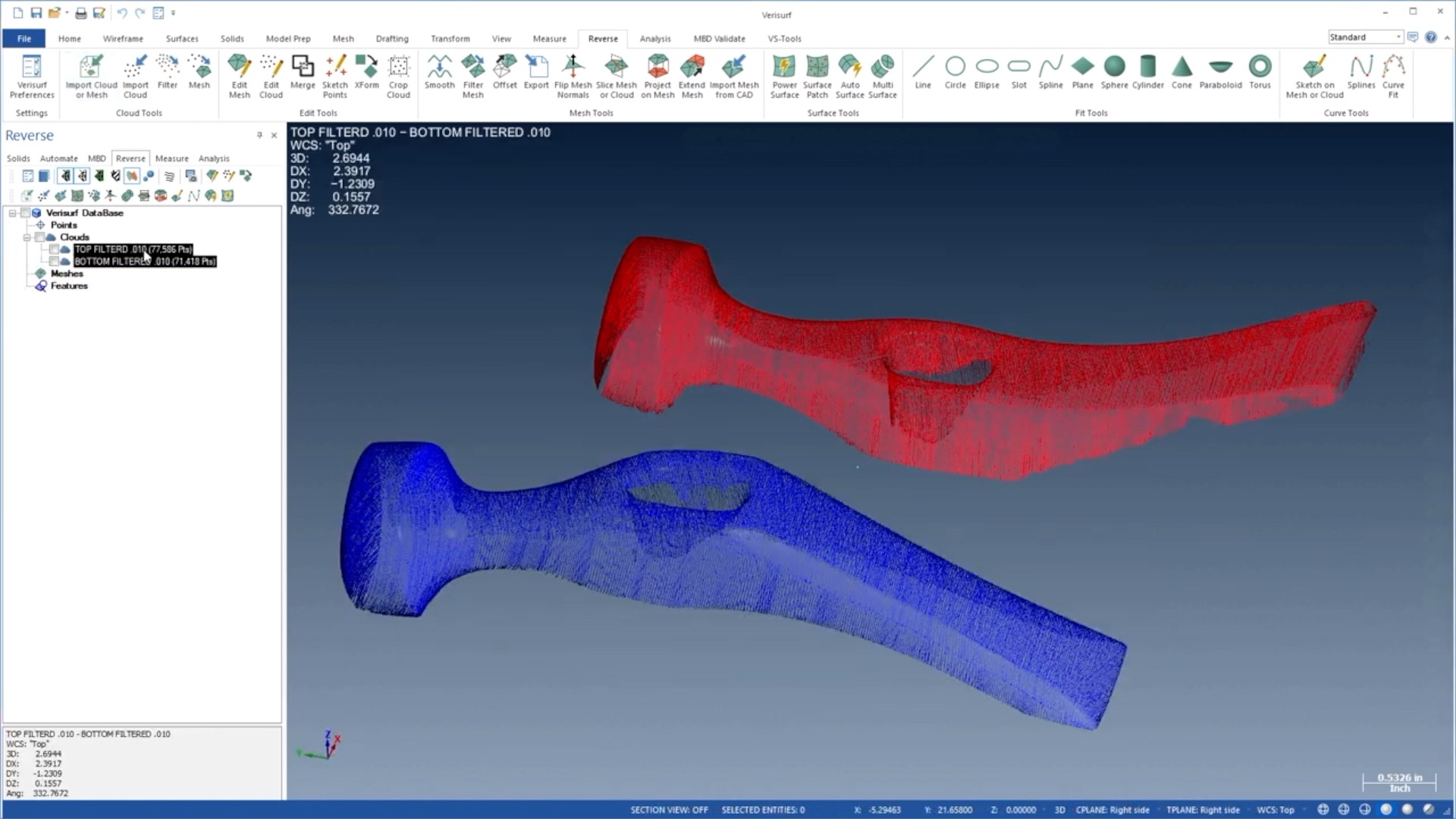

Align Clouds & Meshes

  • Register and merge multiple point-clouds or meshes with manual and automatic methods
  • Align data to reference frame or coordinate system to facilitate modeling and manufacturing

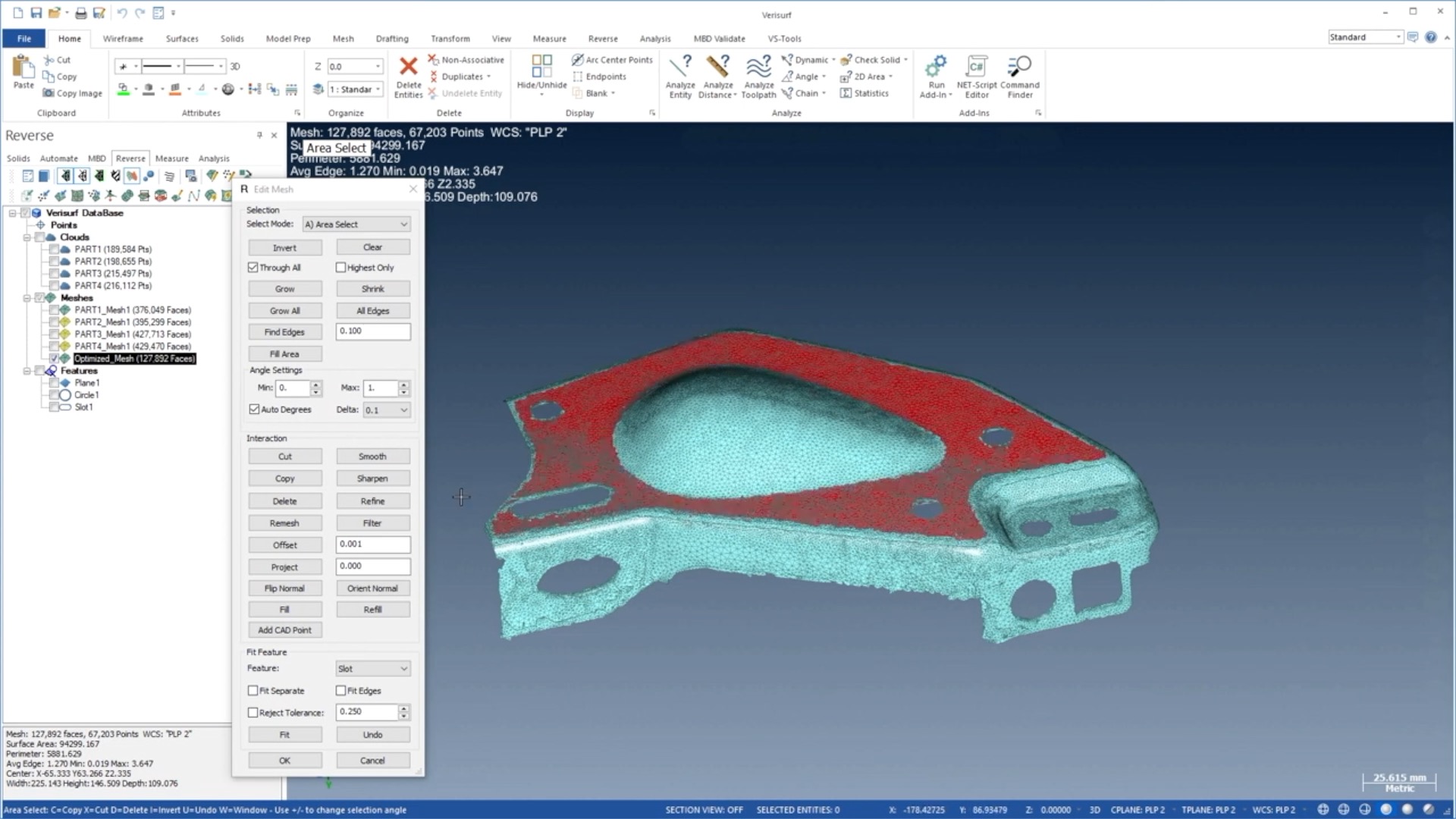

Mesh Tools & Utilities

  • Filter and remove extraneous data, smooth, sharpen, refine, and re-mesh parts of the mesh or offset, project, and reverse selected faces
  • Optimize meshes by reducing face count while maintaining accuracy
  • Power Mesh simultaneously creates, smooths, fills, blends, and refines meshes

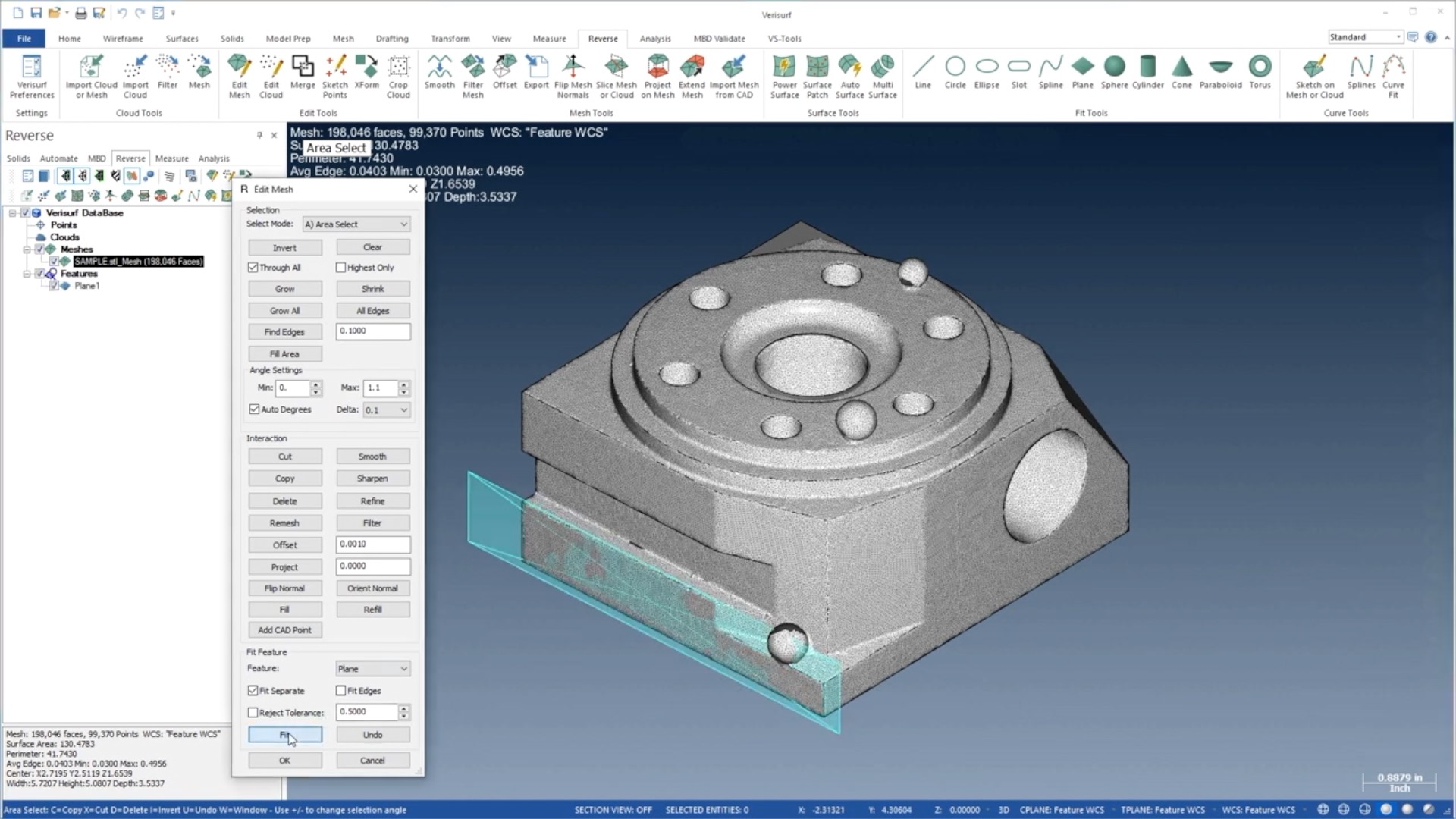

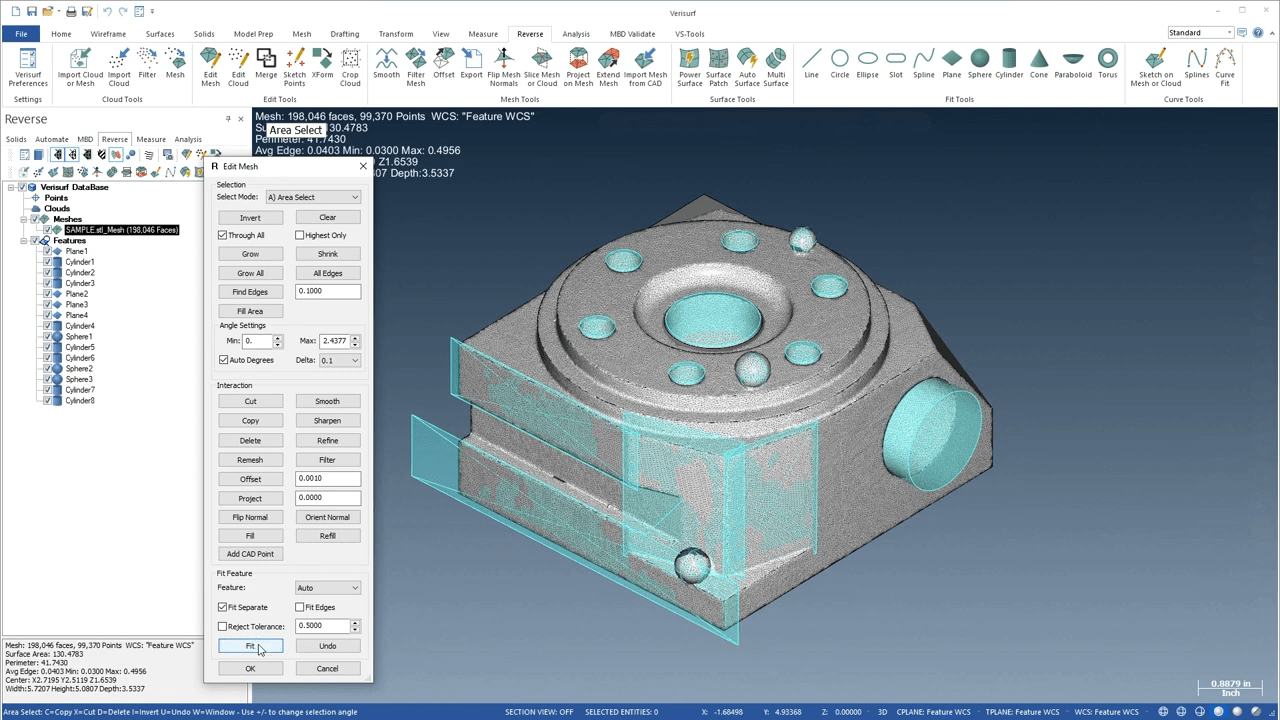

Feature Extraction & Auto-Surfacing

  • Quickly and easily extract geometric features from probe or scan data
  • Automatic feature fitting of planes, spheres, cylinders, cones, lines, splines, parabola, and torus
  • Create double-curvature patch surfaces from sparse data
  • Auto Surface is one-click creation of surfaces for complex profiles

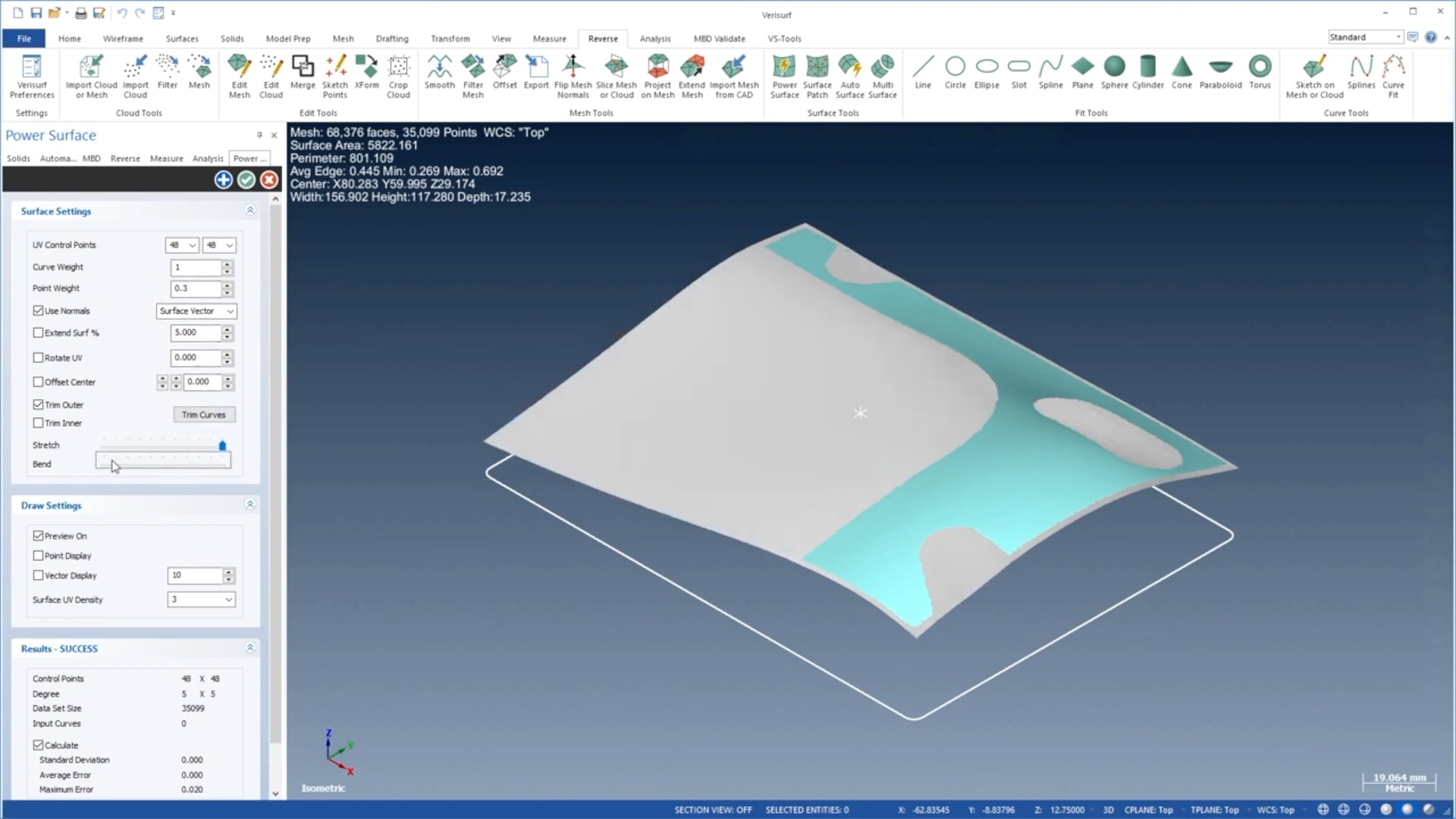

Power Surface

  • Surfacing controls with UV control points, curve and point weighting, and surface normal vector control
  • Stretch and bend surfaces to conform to the mesh and be trimmed to curves
  • Results graphically and numerically displayed in real-time to get the right surface

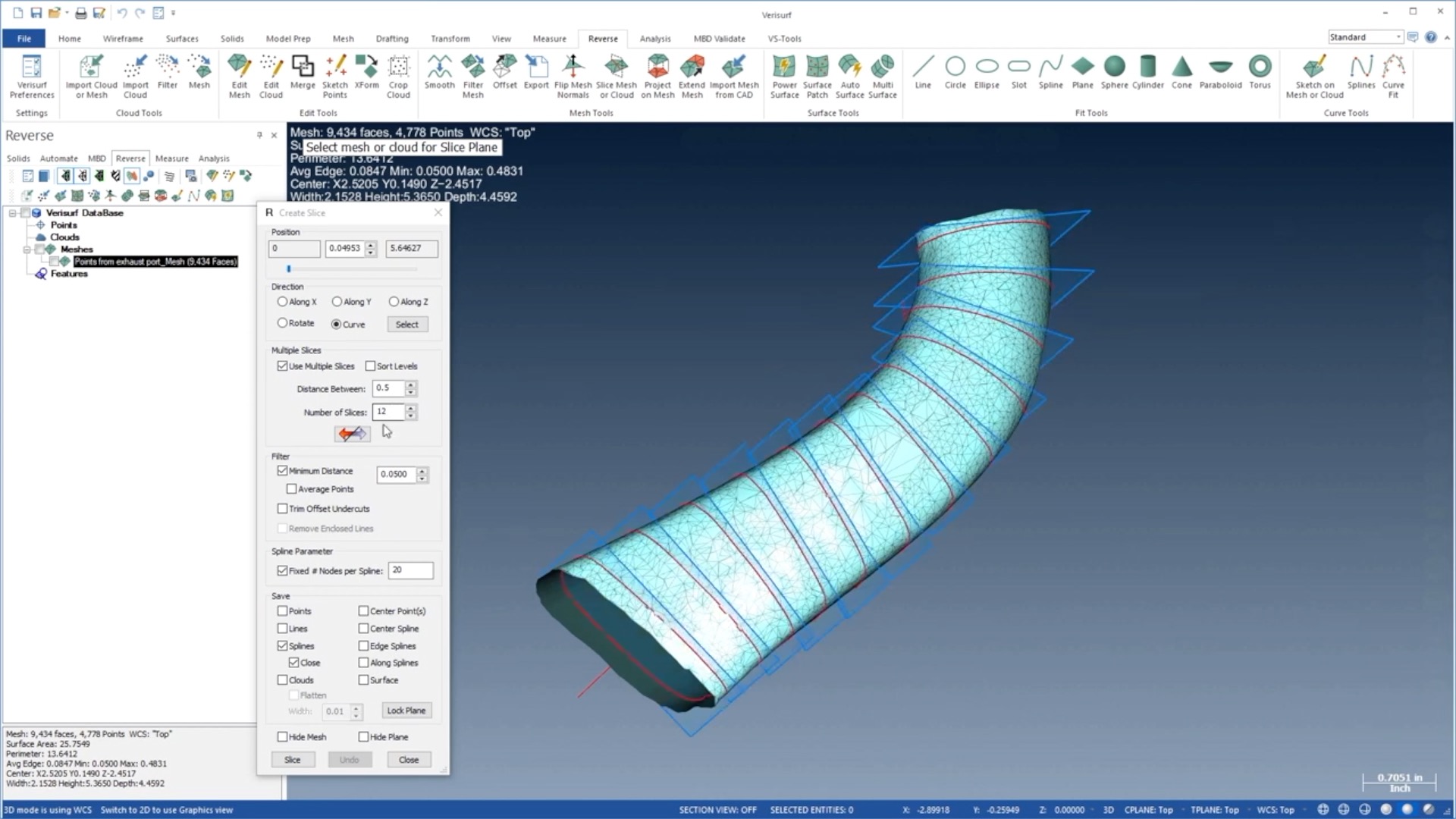

Modeling Tools & Entities

  • Slicing and sketching tools to create curves for surface and solid modeling
  • Ruled or lofted surfaces or extruded, swept, revolved, and lofted solids
  • Full solid modeling and ability to finish models with bosses, holes, chamfers, and fillets furnished by Verisurf CAD

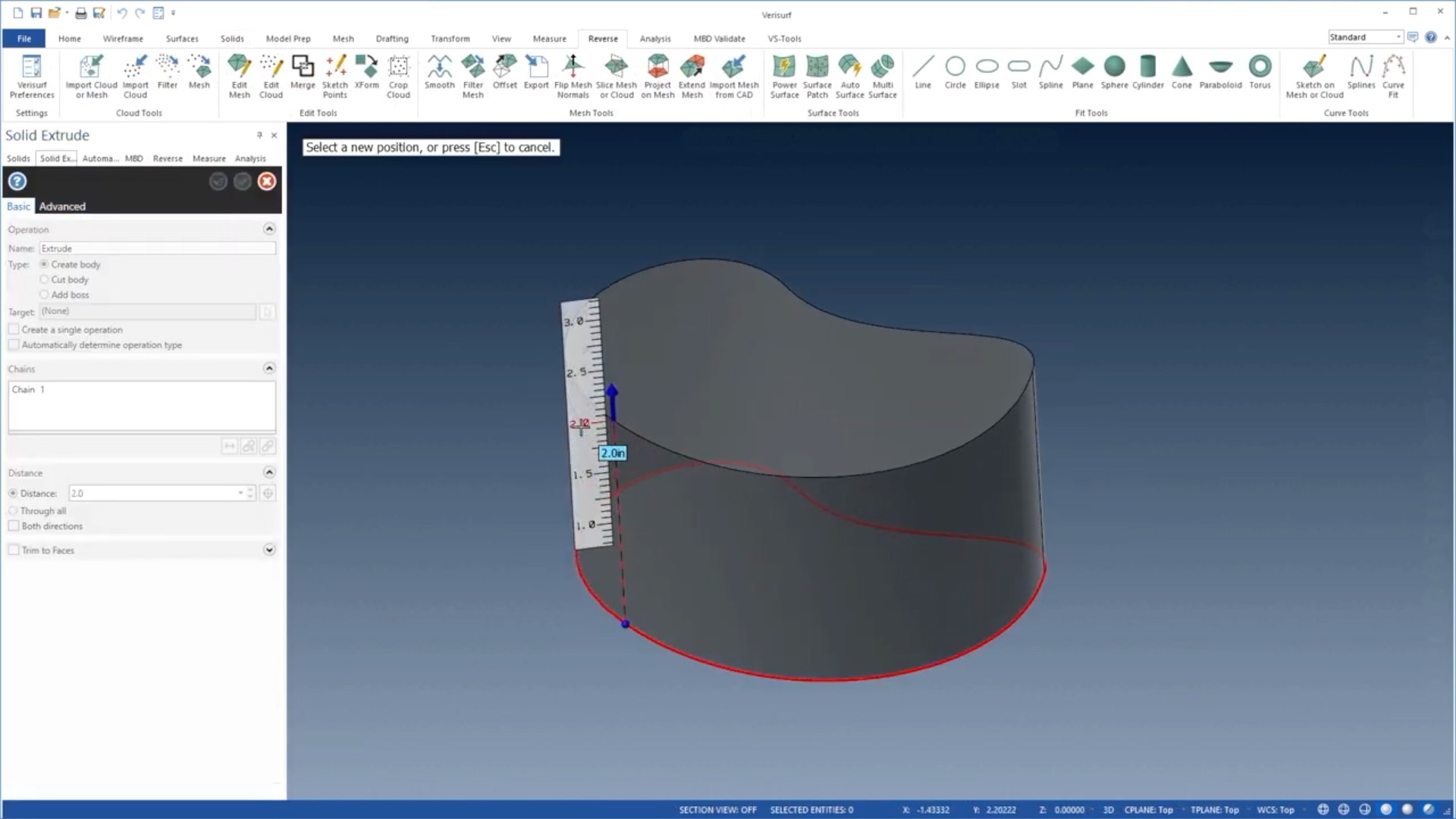

Direct Solids Manager

  • Solids Manager with complete history of modeling operations
  • Access underlying wireframe geometry to reflect measurement changes
  • Modify operations parametrically and regenerate the solid model

Optional Quick Surface

  • Fast freeform NURBS surfaces ready for 3D printing or machining
  • Interactive control to visualize and adjust curvature continuity
  • Quick surface quality check with fit analysis of surface to original mesh

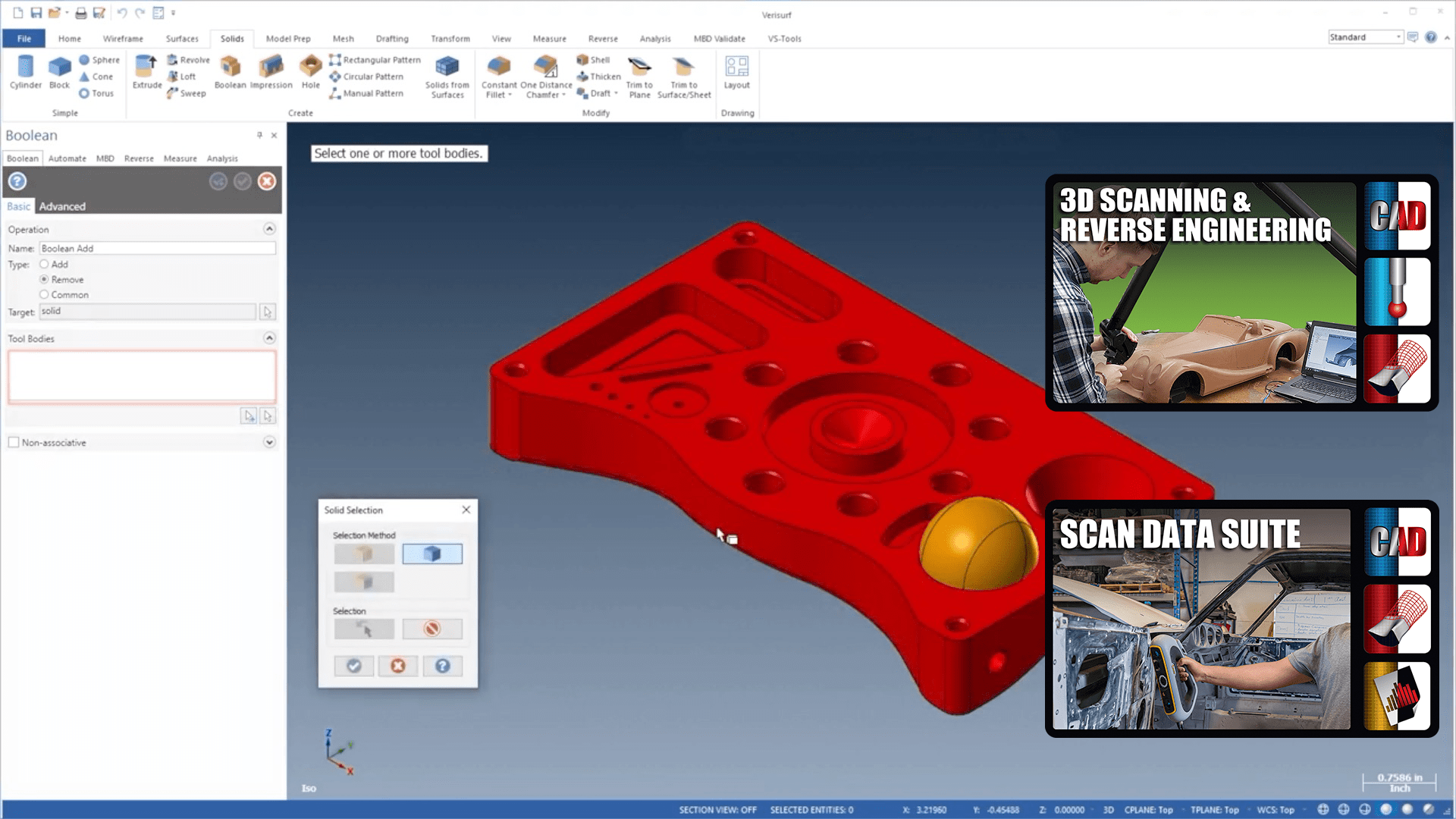

REVERSE Based Suites

  • The 3D Scanning & Reverse Engineering Suite with CAD, MEASURE and REVERSE modules is the ideal for direct scanning with portable CMM arms and trackers
  • The Scan Data Suite with CAD, ANALYSIS and REVERSE modules is the leading price/performance solution for scanners that come with data capture software

The Foundation of Real Time Measurement Suites.

Verisurf CAD and MEASURE modules are the online measurement foundation of Verisurf.
Once you have the basics of measurement you can add specialized modules for your specific Application Suite.

3D Metrology Software, Training and CMMsREVERSE
3D Metrology Software, Training and CMMsREVERSE
3D Metrology Software, Training and CMMsREVERSE
3D Metrology Software, Training and CMMsREVERSE

REVERSE

Overview Video

Ready to See the Difference?

• Download a brochure  • Schedule a demo  • Request a quote
