The worlds most affordable 3D portable measuring arm for industry and education.

KEY BENEFITS

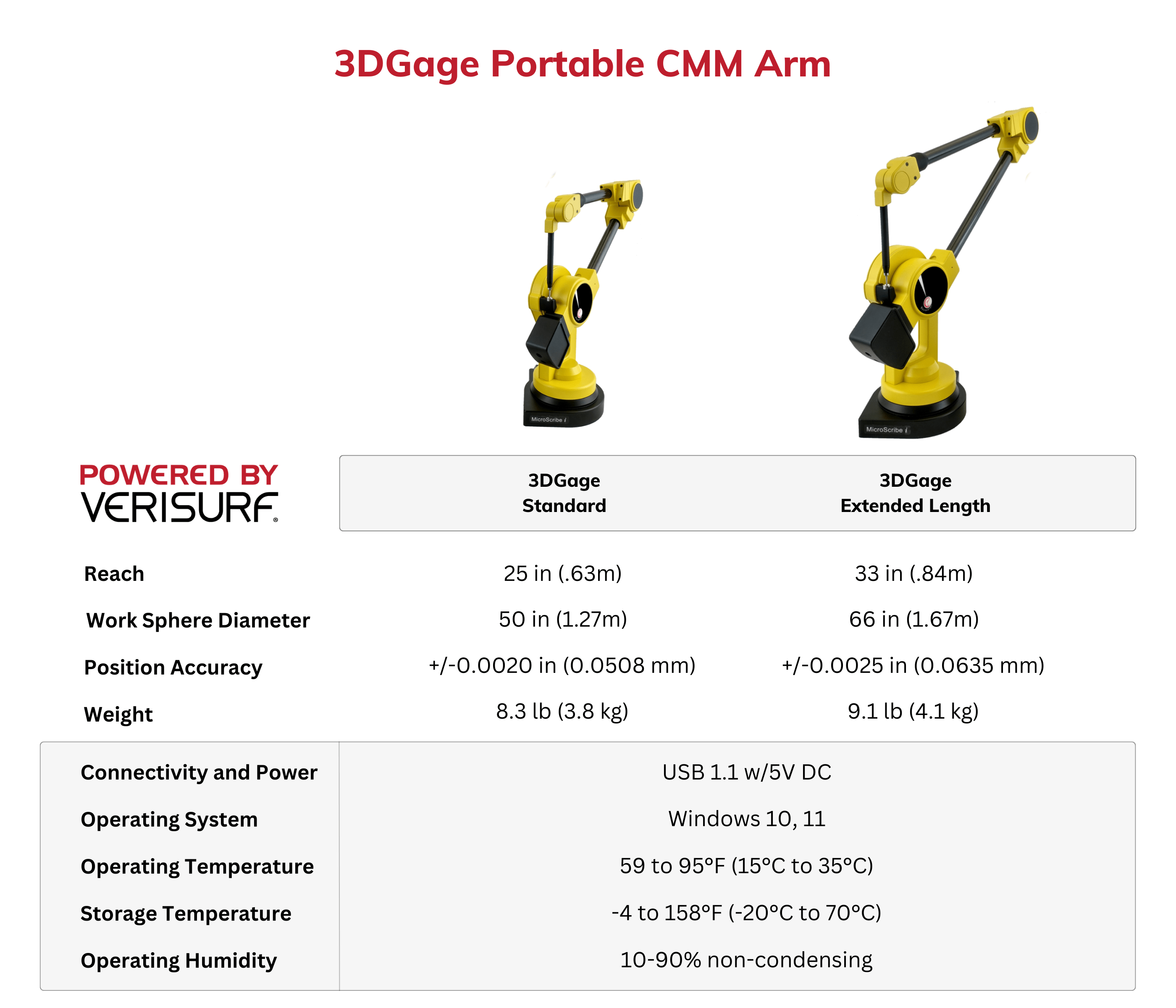

The 3DGage portable CMM provides economical desktop 3D coordinate measurement at an affordable price. Showcasing several new enhancements, the latest 3DGage provides accuracy appropriate for a wide range of measurement and 3D modeling applications required for engineering, manufacturing and education. The 3DGage digitizes physical objects of any shape, material or color.

3D Metrology Software, Training and CMMs3DGage
Calibrated to ASME B89.4.22 specifications for performance of articulated arm CMMs.
3D Metrology Software, Training and CMMs3DGage
Probe calibration software and a precision calibration fixture for rapid tip changing.
3D Metrology Software, Training and CMMs3DGage
RoHS compliant, CE and FCC certified and standard one-year manufacturer’s warranty.

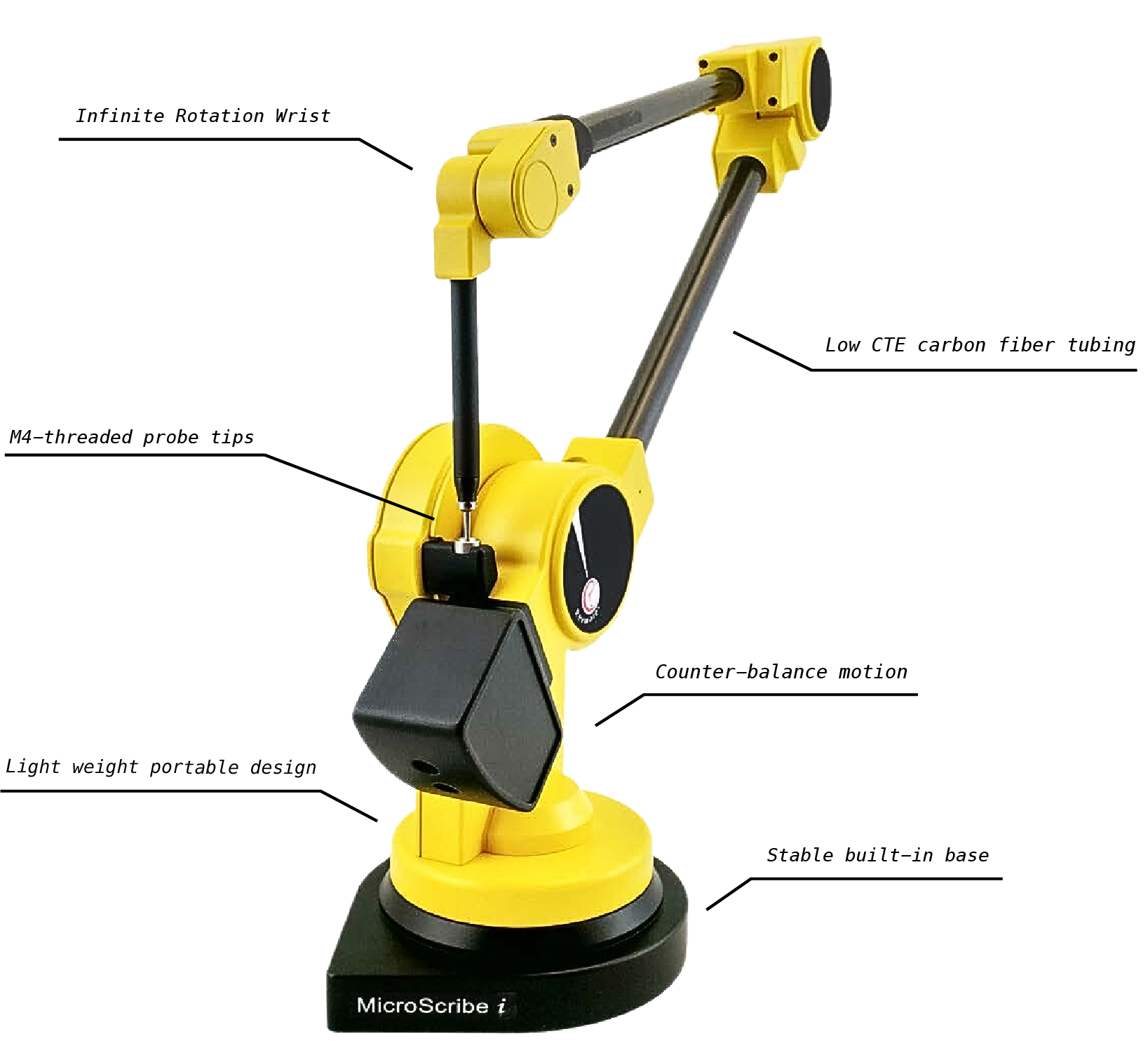

Features

3D Metrology Software, Training and CMMs3DGage

Standard Accessories & Services

Storage Strap

3D Metrology Software, Training and CMMs3DGage

Safely secure the 3DGage arm for hand carrying short distances and longer term storage.

Probe Kit & Calibration

3D Metrology Software, Training and CMMs3DGage

Two 5mm ruby ball probe tips, one 3mm ruby ball tip and one point probe tip. Precision probe tip calibration fixture and probe tip change tool.

Connectivity

3D Metrology Software, Training and CMMs3DGage

Hand switch to trigger measurements. USB data cable, Measurement Utility Software (MUS).

Training Part

3D Metrology Software, Training and CMMs3DGage

Anodized aluminum training part for Verisurf documentation and training courses. Side one has complex profile. Side two has geometric features and pattern.

Calibration Certificate

3D Metrology Software, Training and CMMs3DGage

American Society of Mechanical Engineers’ B89.4.22 specifications for the performance evaluation of articulated arm CMMs.

One Year Warranty

3D Metrology Software, Training and CMMs3DGage

RoHS compliant, CE and FCC certified, and come with a standard one-year manufacturer’s warranty.

Optional Accessories & Services

Optional Probes

3D Metrology Software, Training and CMMs3DGage

Custom probes for reaching internal cavities and pockets. Includes stainless steel base and stem with M4 thread. Specify length, ball diameter, silicon nitride or ruby tip material.

Rugged Case

3D Metrology Software, Training and CMMs3DGage

Ideal for safely moving your arm around the shop floor or transporting as checked baggage. Includes space for training part, probe kits and magnetic mounts.

Dual Foot Pedal

3D Metrology Software, Training and CMMs3DGage

The optional Dual Foot Pedal is used as an alternative to the standard hand switch allowing you to use both hands for measurement.

Magnet Base

3D Metrology Software, Training and CMMs3DGage

Black anodized aluminum adapter plate with three magnets firmly holds the 3DGage to CNC machines and steel tables.

Tripod Mounting Plate

3D Metrology Software, Training and CMMs3DGage

Securely mount the 3DGage to any standard tripod thread with this black anodized aluminum plate.

Tripod

3D Metrology Software, Training and CMMs3DGage

High quality tripod with standard 3/8-16 threaded mount. Mounting plate sold separately.

Software Suites

Inspection & Analysis

3D Metrology Software, Training and CMMs3DGage

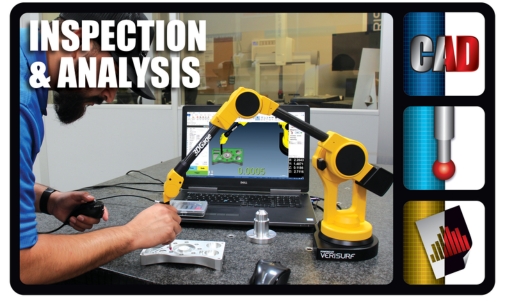

Connect to measuring device to probe and scan parts. Quickly identify deviation and report tolerance conditions between measured parts and nominal CAD.

Reverse Engineering

3D Metrology Software, Training and CMMs3DGage

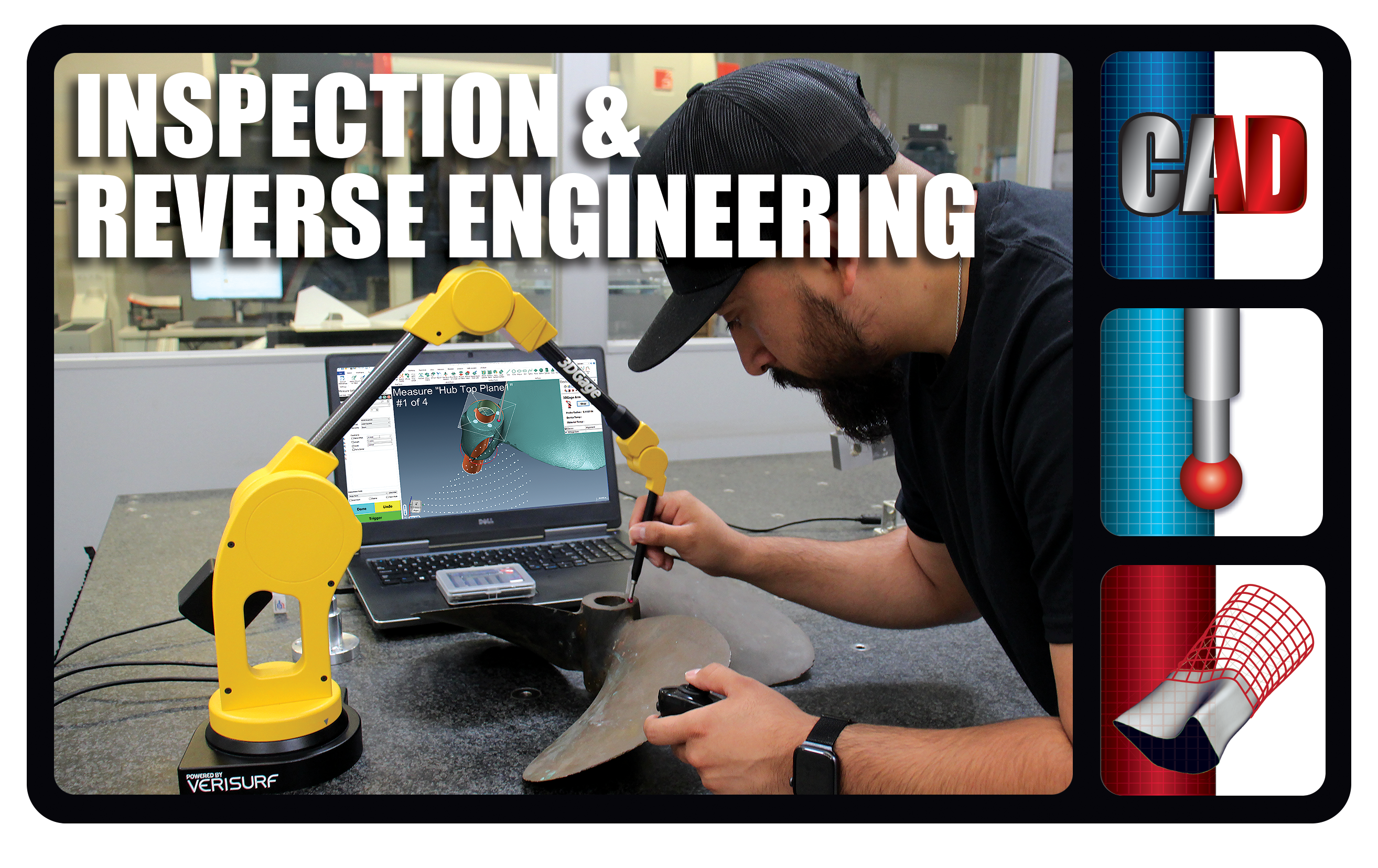

Connect to measuring device to probe and scan parts. Complete 3D SCAN-TO-CAD workflow quickly learned and retained by new users thanks to the intuitive user interface.

Tool Building

3D Metrology Software, Training and CMMs3DGage

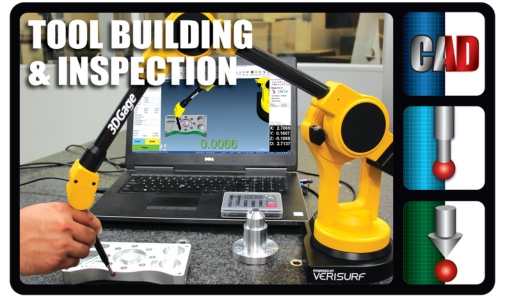

Used by major aerospace and automotive manufacturers worldwide to build jigs fixtures and tooling, align assemble and inspect small parts or large assembles.

3D Metrology Software, Training and CMMs3DGage

Metrology Education

Metrology Educational Software is designed for anyone who desires to earn job-ready manufacturing inspection, tool building, and reverse engineering skills needed in Aerospace, Automotive, Marine, Energy, and Biomedical industries. The suite includes all software modules so education institutions can train the next generation metrologists needed in today’s competitive manufacturing industries.

Verisurf Metrology Education Solutions are complete packages with the HardwareSoftwareCurriculum and Training instructors need to expand their CAD, CAM, 3D Printing and Machinist courses with Computer Aided Reverse Engineering (CARE) and Computer Aided Inspection (CAI).

Ready to See the Difference?

• Download a brochure  • Schedule a demo  • Request a quote
