Product Spotlight

Quick Surface

Quick Surface is a seamlessly-integrated Verisurf Reverse option that fits smooth, freeform CAD surfaces through any mesh.

KEY BENEFITS

Quick Surface is a powerful option for Verisurf Reverse that efficiently creates smooth, high-quality surfaces from meshes derived from scan data or STL files. Quick Surface maintains curvature continuity between adjacent surfaces and is ideal for creating smooth, high-speed toolpaths.

With Quick Surface, it’s a snap to produce freeform CAD surfaces from organic or prismatic Verisurf meshes and assess the surface-to-mesh fit quality prior to export for additional, downstream modeling or other processing. Quick Surface is an ideal enabler for scan-to-part or scan-to-3D-printing workflows.

Auto create surfaces from 3D meshes

Controls curvature continuity at edges

Ideal for creating Class A surfaces

High-Quality Surfacing of

Complex Scan Data

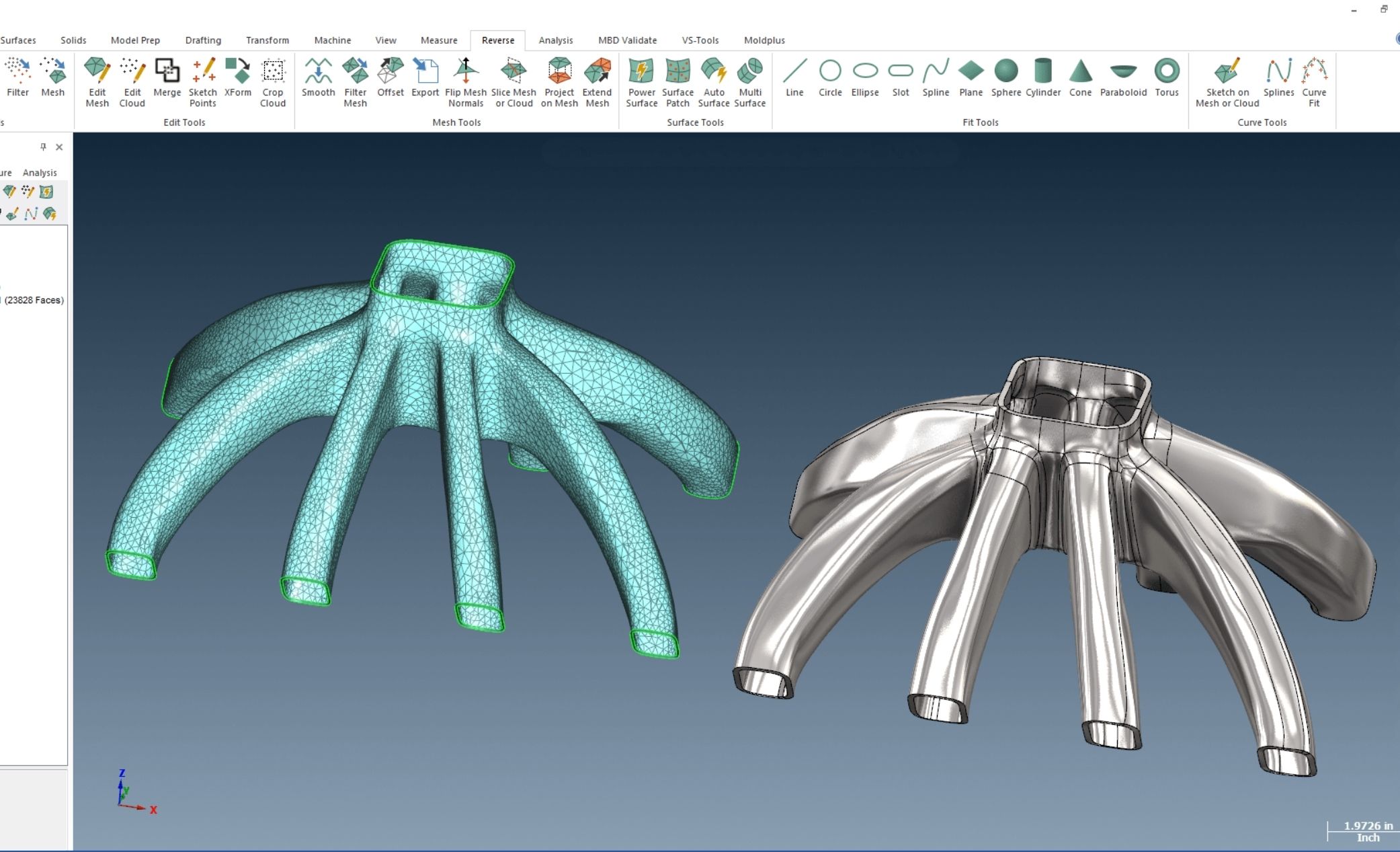

With Quick Surface, it’s a snap to produce freeform CAD surfaces from organic or prismatic Verisurf meshes and assess the surface-to-mesh fit quality prior to export for additional, downstream modeling or other processing. Quick Surface is an ideal enabler for scan-to-part or scan-to-3D-printing workflows.

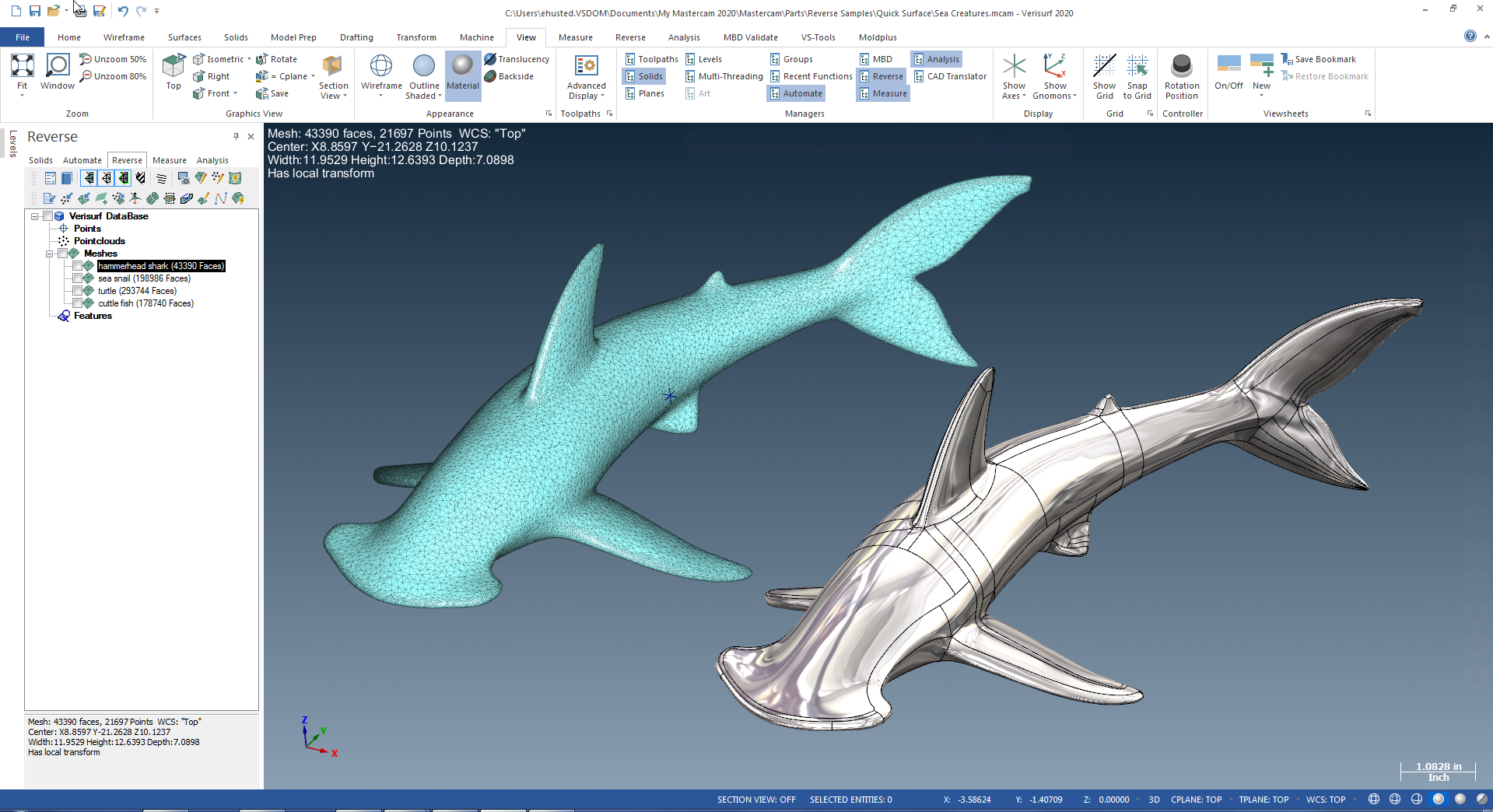

Quick Surface creates smooth, high-quality surfaces continuous across adjacent boundaries suitable for downstream machining or 3D printing.

VERISURF + QUICK SURFACE

Complete toolset for all the nuances of challenging, complex contours

Perform any reverse

engineering task with ease.

  • Import and export data in any common CAD/CAM format
  • Combine, segment, register, edit large, dense pointclouds
  • 2D/3D pointcloud meshing with multiple, advanced editing, and fully-automated optimization tools
  • Extensive mesh surfacing options with fine-tuning controls and a full CAD system for building solid models suitable for downstream inspection, manufacturing, and tool building
3D Metrology Software, Training and CMMsQuick Surface

Before Quick Surface: Mesh from scan data Quality Planning & Process Control

Quick Surface quad mesh

Quick Surface fit analysis

After Quick Surface: final NURBS surfaces in Verisurf

Quick Surface

Online Training

An Open X Verisurf Collaboration
Enroll Now
3D Metrology Software, Training and CMMsQuick Surface
3D Metrology Software, Training and CMMsQuick Surface
Quick Surface Basics
Organic Shapes
Mesh Preparation
Sheet Metal Repair
Reducing Deviations
Snapping & Extrapolation
Using Manipulators
Filling & Smoothing
Smoothing & Creasing

Quick Surface Overview

Ready to See the Difference?

• Download a brochure  • Schedule a demo  • Request a quote
