Along with modern CMM head, sensor, and controller technologies, new 5-axis CMM programming methods from Verisurf software deliver high-performance measuring speed and flexibility. Furthermore, it’s achieved while avoiding the speed-versus-accuracy compromises inherent with conventional methods.

SPECIAL PROGRAMMING CAPABILITIES

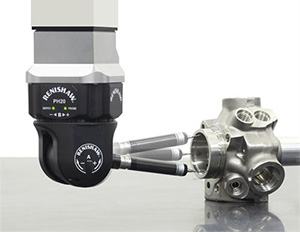

Verisurf adds new and unique measurement techniques improving the speed and accuracy of 5-axis enabled CMMs. Verisurf supports all standard 5-axis probing techniques. You can use the same program for either PH20 or REVO.

3D Metrology Software, Training and CMMs

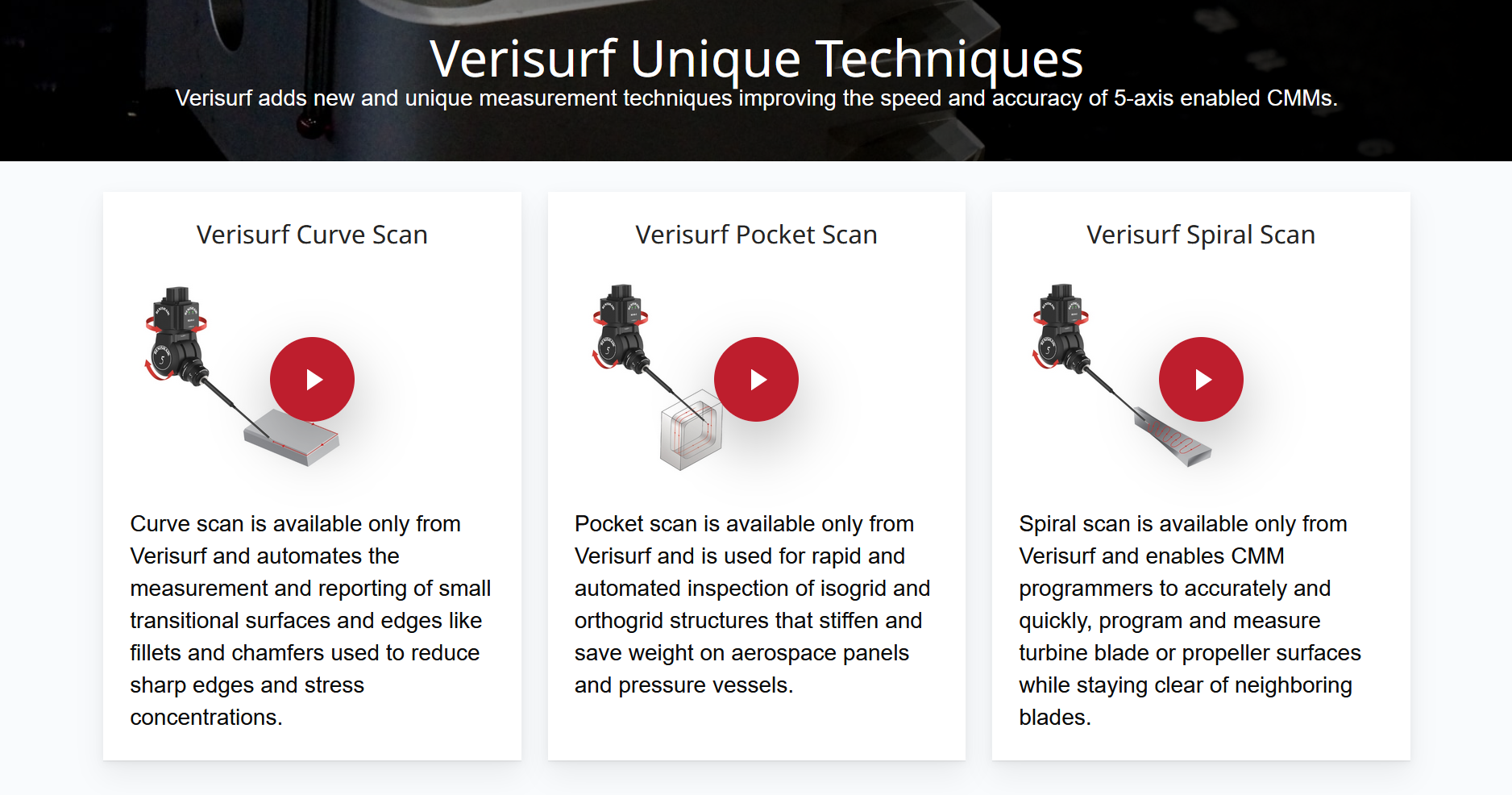

Pocket Scan is great for “Light weighting” projects where there is critical design balance between strength and weight.

Pocket Scan is one of several scan techniques available with Verisurf 5-axis programming. See them all by clicking image below:

Unique Verisurf 5-Axis Programming Features:

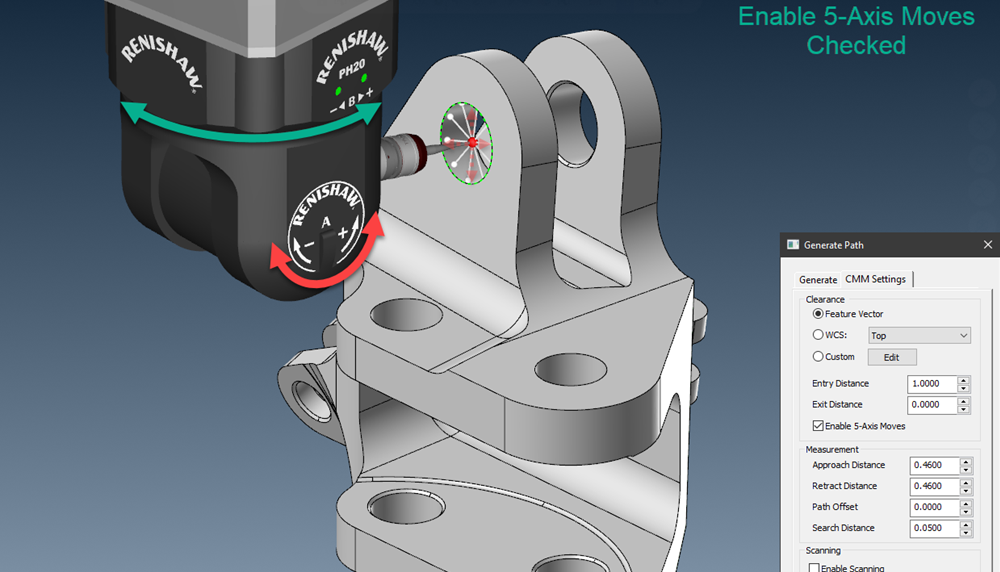

Enable 5-Axis Moves

Custom Clearance

Five-axis motion allows the stylus to follow a continuous path along complex contours without leaving the part surface to index the probe angle or change the stylus. Controller algorithms synchronizing CMM and head motion, produce optimal probe paths that minimize dynamic errors.

There are extensive productivity gains offered by 5-axis probing, as it dramatically reduces the number of setups and special fixturing. It also allows fewer probe changes and requirements for unique probes, which are common in 3-axis probing.

VIDEO

CUSTOMER CASE STUDY

hydroplane race boat Ellstrom Racing

See how Five-Axis Industries and Ellstrom Racing combine 5-axis CNC milling and 5-axis CMM probing for efficiency through these modern technologies. Click image above.

See our comprehensive page on 5-axis CMM programming:
