Repeatability Test from Original

Software Highlights – AUTOMATE – CMM PROGRAMMING


REPEATABILITY TEST FROM ORIGINAL

Use the Repeatability Test From Original (RTFO) function when measured data is the control data (not a CAD model). This function is ideal when data from a Master Part controls the Pass/Fail criteria for subsequent parts in a production run.

  • Use to verify the thickness of coating, plating, or other additive machining procedures.
3D Metrology Software, Training and CMMs

CREATING A REPEATABILITY TEST FROM THE ORIGINAL USING A MODEL

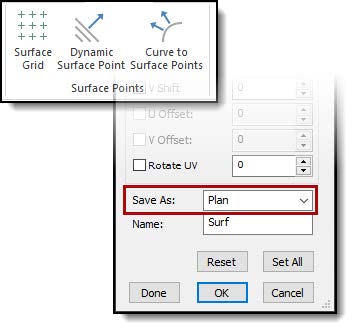

1. Create the part inspection requirements (Analysis Object) from the model using any Surface Points tools found under the Analysis Tab on the Ribbon Bar.

• Using any Surface Points Tool allows you to create an Analysis Object that saves in a Plan.

3D Metrology Software, Training and CMMs3D Metrology Software, Training and CMMs

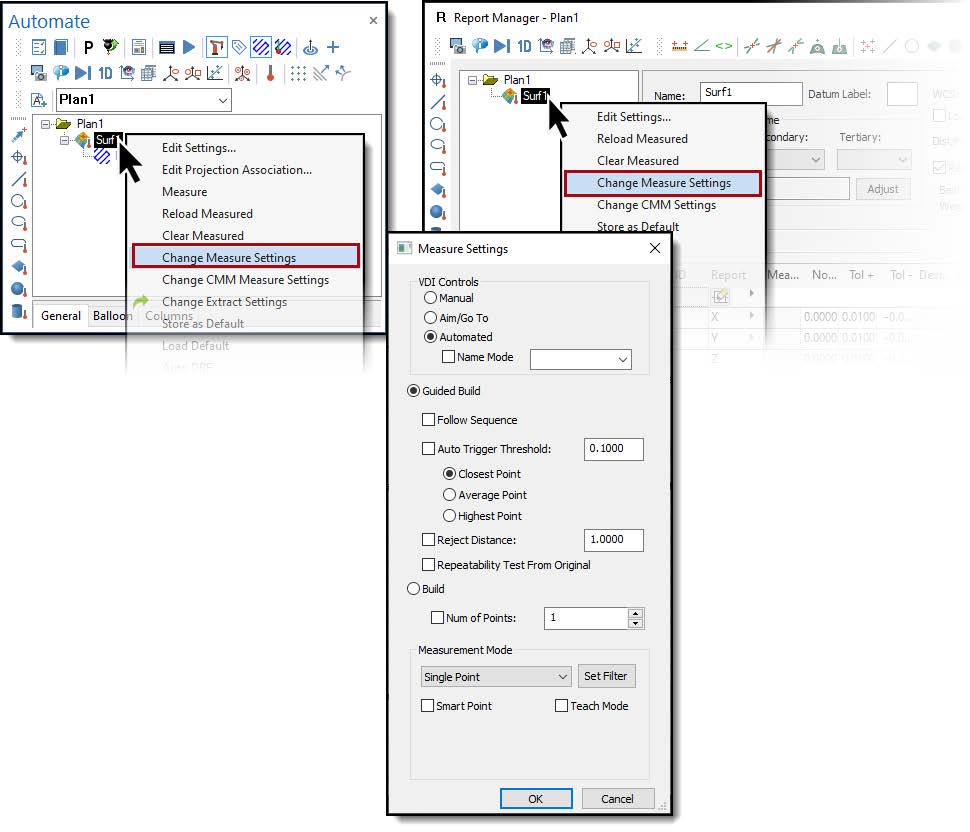

2. Open the Plan in Automate or the Report Manager, click on the Analysis Object, and select Change Measure Settings.

• Choose the measure settings needed to collect the measured data. Find Explanations of Measure Settings in the Verisurf Auto Inspect Reference Guide found in the Verisurf Docs Folder on your Desktop.

3D Metrology Software, Training and CMMs

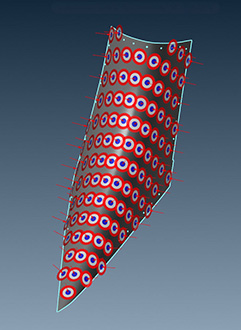

3. Close the Report Manager and run the plan from Auto Inspect; prompts guide you to measure the created points from the model.

4. Once the plan is complete, you have a second Analysis Object in the Measure Tree with the collected measurements.

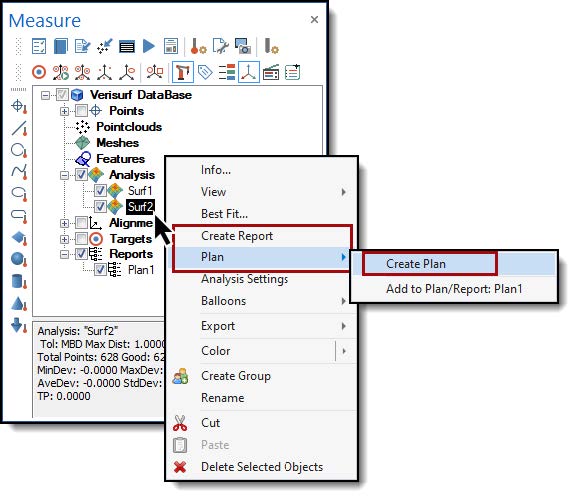

5. Select the second Analysis Object in the Data Tree, access the speed menu, and create a new Report or Plan.

3D Metrology Software, Training and CMMs

6. We recommend changing the Analysis Object name to any identifying name to associate the measurements to the process.

• Select the required reporting fields.

7. In the Automate Plan or the Report Manager, right-click on the Analysis Object and select Change Measure Settings.

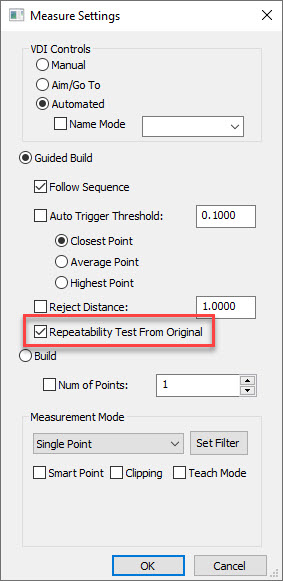

• Choose the measure settings needed and select Repeatability Test From Original. See Measure Settings in the Verisurf Report Manager_Auto Inspect Reference Guide found in the Verisurf Docs folder on your Desktop.3D Metrology Software, Training and CMMs

• Run the plan from Auto Inspect.

8. The Measured Data from the original Plan now becomes the Nominal Data for the second inspection.

3D Metrology Software, Training and CMMs

Above – Measure Data as compared to CAD nominal



3D Metrology Software, Training and CMMs

Above – Measured Data from the first measured part becomes the Nominal values for subsequent Reports.


3D Metrology Software, Training and CMMs

LEVERAGING THE CMM MASTER FOR REPEATABILITY TEST FROM ORIGINAL



Based on the Renishaw Equator Gauging System – The Verisurf CMM Master embraces the mastering and repeatability process for fast and reliable process verification with Comparator Mode.
