Verisurf Manual CMM Upgrades

Verisurf Manual CMM Retrofit

Breathe New Life into New and Existing CMM’s

Verisurf offers complete manual CMM upgrades that transform any manual CMM into a high-performance 3D model-based inspection system by adding the power of Verisurf software with a modern interface. “Verisurf software has been powering portable CMM’s for nearly 30 years. We also offer the same ease of use and productivity for thousands of manual CMM’s, many of which struggle with old, outdated, or unsupported computers, interfaces, and software,” said David Olson, Director of Sales & Marketing.

The granite tables and structures of manual CMM’s are designed to last a very long time however the communications interface and operating software can become quickly outdated, lowering the device’s effectiveness in today’s production environment. By retrofitting a manual CMM to run Verisurf software you add additional functionality and productivity features that are quickly becoming requirements of manufacturing and quality engineers.

  • Model-Based Definition/Inspection with associative GD&T, readable directly from CAD, or create your own within Verisurf
  • Enjoy the benefits of sharing the same software with your portable CMMs
  • Import all native CAD file formats
  • Create rapid CAD-based alignments without the need for multiple iterations
  • Create HTML, PDF, Excel, or AS9102 reports or output to SPC and first-article inspection databases
  • Easily create real-time, colorful displays of complex profile deviations
  • Digitize, reverse engineer, and create solid models
  • Operate in the latest 64-bit operating system and ensure functionality with modern peripherals
  • Use optional hard probes for digitizing and scanning

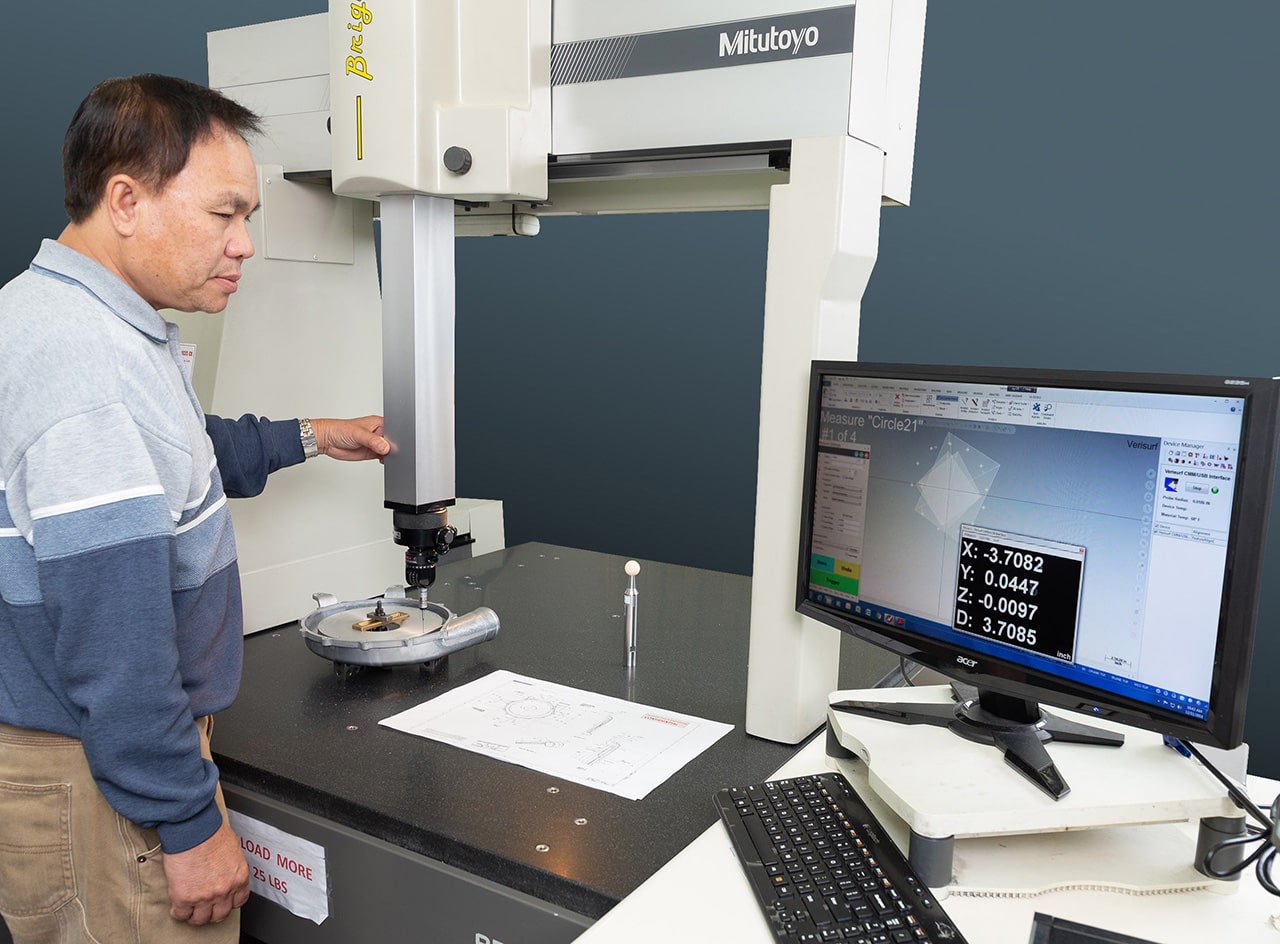

The Verisurf retrofit of your CMM comes complete with a new USB interface along with Verisurf software configured to your specific requirements. Any necessary mechanical adjustments and complete geometric compensation are completed by experienced technicians. A calibration certificate is provided with the new verified accuracy of the CMM.

Verisurf software configurations are customized to each customer’s specific application and supported by Verisurf metrology engineers.

Inspection Suite – Verisurf software supports both modern model-based measurement techniques and traditional blueprint measurement processes. Measurement includes the import of any CAD model, the creation of model-associative GD&T, automated alignment of 3D CAD models to physical parts, and real-time probe position with deviation display.

Inspection & Analysis Suite – Includes the functionality of Inspection with the addition of advanced 6 degrees of freedom best fitting alignment, auto inspection programming, custom color deviation plots, results ballooning, and analysis reporting.

3D Scanning & Reverse Engineering Suite – Digitize parts directly into CAD. Create, import, filter and edit point clouds. Create, import and edit STL mesh surfaces with hole filling, slicing, feature recognition, and auto surfacing. Create and edit NURBS surfaces including extruded, revolved, and lofted surfaces. Create and edit CAD features including planes, holes, and pockets.

Inspection & Analysis Suite with optional REVERSE module – Bundles all the functionality of Inspection & Analysis and 3D Scanning & Reverse Engineering Suites.
