Software Highlight
5-Axis CMM Scan Paths
Technique: Gasket Scan

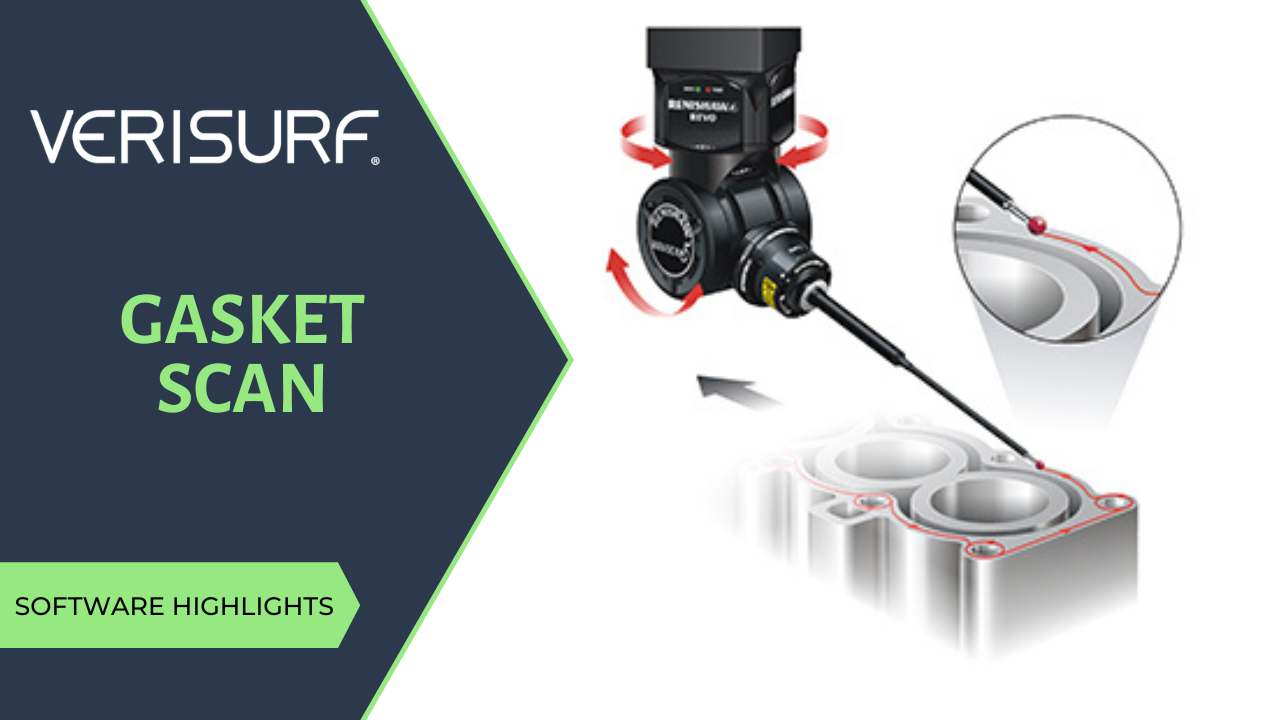

GASKET SCAN is a 5-axis CMM tactile scanning technique. It works under a full 5-axis motion control to follow any complex path during scanning operations. By defining target points along a path a blended path is created that captures a large data set while minimizing CMM motion.
![gasket-scan-touchup 3D Metrology Software, Training and CMMs](https://www.verisurf.com/wp-content/uploads/2024/03/gasket-scan-touchup.jpg)
![gasket-scan-engine-deck-profile 3D Metrology Software, Training and CMMs](https://www.verisurf.com/wp-content/uploads/2024/03/gasket-scan-engine-deck-profile.png)
The complex geometry around features such as the head gasket, will have edges or CAD curves that define the combination of shapes and blends. This can be one-click selected as a CAD chain, then instantly set to be the “drive curve” for the Gasket Scan CMM path. The scan drives the CMM’s carriage along a straight line and speed, leaving the 5-axis head to perform the 2 rotations that trace the curve. The result is higher scanning speeds with greater accuracy.
![cluster-edt 3D Metrology Software, Training and CMMs](https://www.verisurf.com/wp-content/uploads/2024/03/cluster-edt.jpg)
![clusterscan-scrshot 3D Metrology Software, Training and CMMs](https://www.verisurf.com/wp-content/uploads/2024/03/clusterscan-scrshot.jpg)
Verisurf’s Full-Featured CAD Enhances CMM Pathing
Verisurf’s CAD foundation enables us to better recognize surfaces and create complex CMM scanning paths to gain superior performance from 5-axis CMM scanning technology.
