Datums Labels in a CMM Plan

Software Highlights – AUTOMATE – CMM PROGRAMMING


Datum Labels for Feature Align and Best Fit

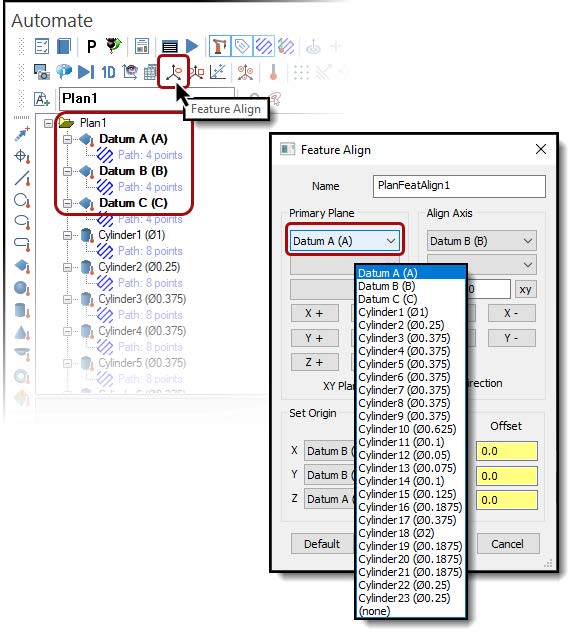

DATUMS FOR FEATURE ALIGN IN A PLAN

When working with Feature Align in a Plan, all user-defined Datum Labels are displayed in parenthesis next to the Feature name in the Feature Align dialog.

  • Applies also to Report Manager.

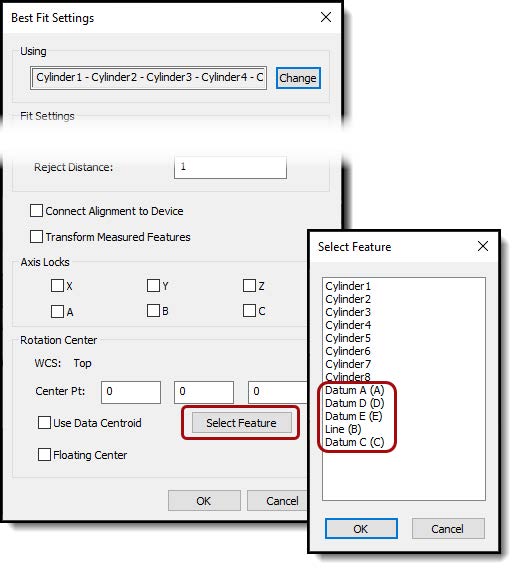

DATUMS FOR BEST FIT IN A PLAN

User-defined Datum Labels display in parenthesis next to the feature name in the Select Feature list, making the selection of the Rotation Center intuitive.

  • Also applies to Best Fit in Report Manager.
