Software Highlight
5-Axis CMM Scan Paths
Technique: Edge Scan

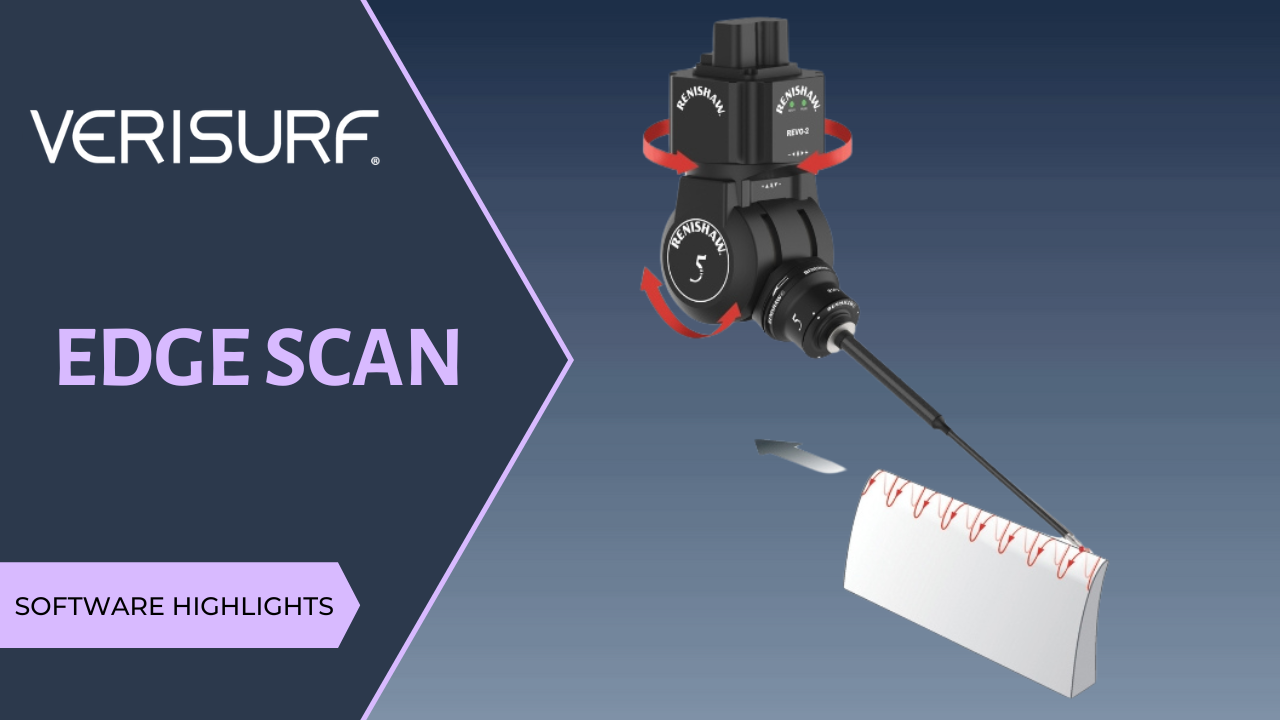

EDGE SCAN is a 5-axis CMM tactile scanning technique. It drives the CMM in a uniform direction to minimize the inherent inaccuracies of the CMM structure while the system adapts to the changing surface shape by controlling the contact pressure of the stylus.
![edge scan sXs2 3D Metrology Software, Training and CMMs](https://www.verisurf.com/wp-content/uploads/2024/02/edge-scan-sXs2.jpg)
EDGE SCAN is well suited to the measurement of airfoil leading edges and similar contours.
![airfoil-edge-2b 3D Metrology Software, Training and CMMs](https://www.verisurf.com/wp-content/uploads/2024/02/airfoil-edge-2b.jpg)
Verisurf’s Full-Featured CAD Enhances CMM Pathing
Verisurf’s CAD foundation enables us to better recognize surfaces and create complex CMM scanning paths to gain superior performance from 5-axis CMM scanning technology.
