REVO RUP1 Thickness Sensor Support

Verisurf provides support for the Renishaw RUP1 CMM ultrasonic thickness probe.

  • Ultrasonic thickness evaluation
  • Metal parts ranging from 1 mm to 20 mm
  • Accuracy better than 0.010 mm

The Renishaw RUP extends Verisurf’s multi-sensor support for the REVO system by enabling ultrasonic thickness evaluation.

3D Metrology Software, Training and CMMs

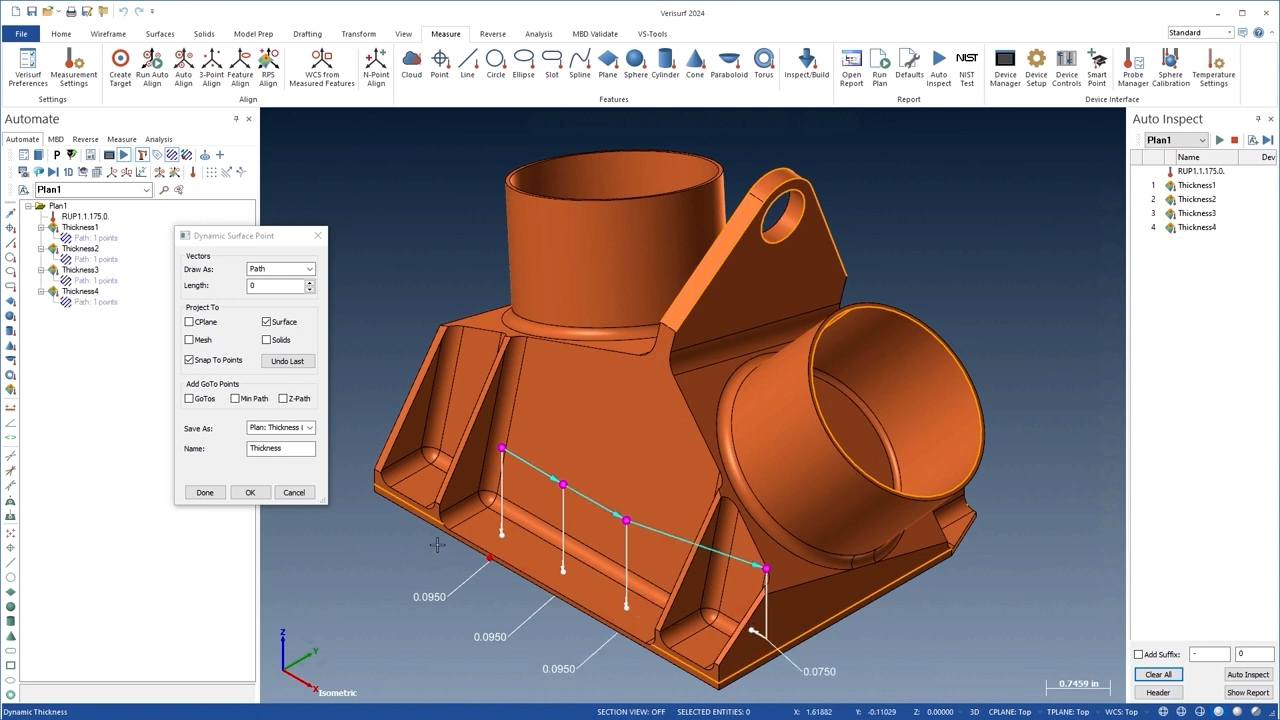

The Dynamic Surface Point tool is used to add the new one-point thickness measurements to a plan by selecting surfaces or nominal points on the model. The distance between the selected and opposing surfaces is saved as the nominal thickness. Inspection points can also be created using the Surface Grid and Curve-to-Surface-Points tools.

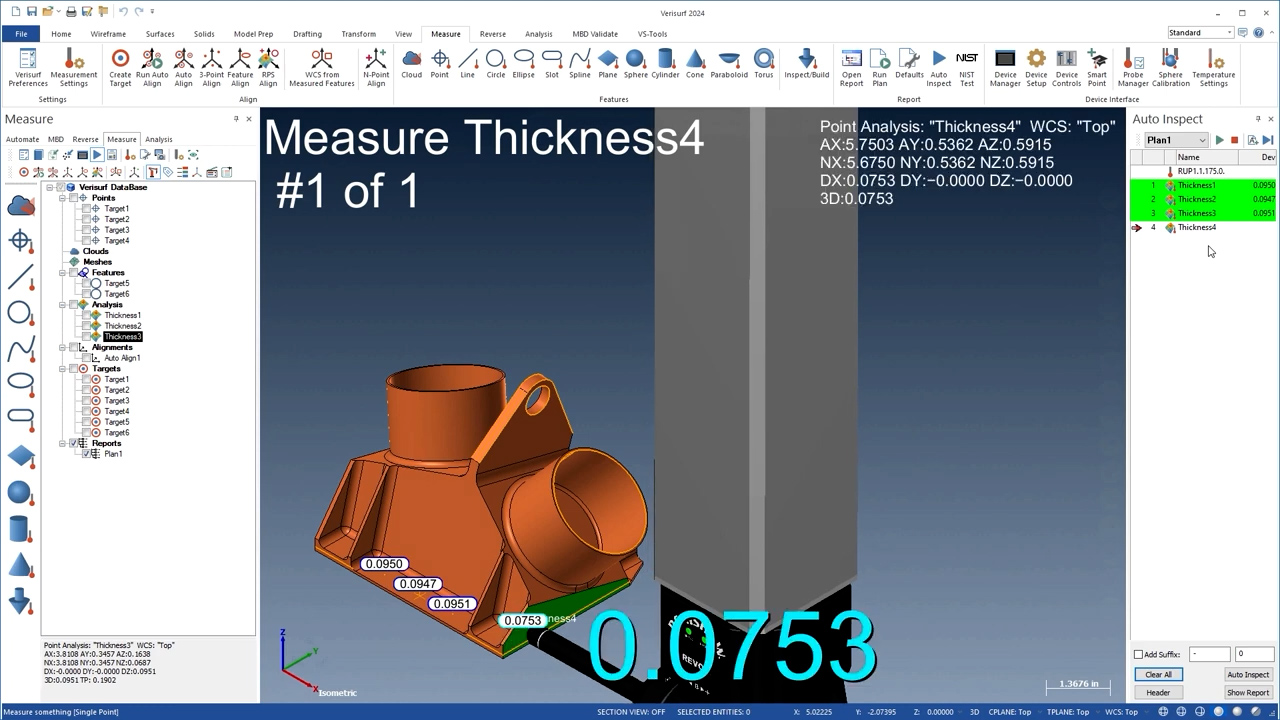

When the plan is run the RUP measures the actual thickness at the target point and reports the difference as a deviation. The RUP works on metal parts ranging in thickness from 1 to 20 millimeters and has an accuracy better than 0.01 millimeters.

For more information or a demonstration on this or other
