Accurate Handheld Scanner for Fast and Easy Data Collection

A next-gen handheld scanner that is the ideal companion to Verisurf for rapid data collection

Watch the Peel 2 scanner video here:

3D Metrology Software, Training and CMMs

The Peel 2 scanner is extremely easy to use, features enhanced performance metrics, and offers an unprecedented scan rate of up to 550,000 measurements per second with an accuracy of up to 0.250 mm (0.01 in).

Thanks to this new 3D scanner, you can tackle more complex projects and take advantage of higher measurement resolution, color capture, enhanced tracking, and better geometry capabilities.

3D Metrology Software, Training and CMMsThe Peel 2 scanner works seamlessly with Verisurf in a single, integrated workflow. Bundle the scanner with any of several available Verisurf Scan Data software suite configurations depending on your usage requirements or coordinate with your Verisurf representative to define a software configuration that best suits your unique situation.

3D Metrology Software, Training and CMMs

Inspection

Pair your Peel 2 scanner with the Verisurf Scan Data Inspection Suite. This combination of scanner hardware and software integrates Verisurf’s CAD and ANALYSIS modules to tackle inspection challenges using imported point cloud data. Easily import scan data collected with your Peel 2 scanner to automatically analyze, extract, and compare features to CAD nominal with intelligent GD&T. Save reusable, automated inspection plans to support high-volume production.

Reverse Engineering

The combination or your Peel 2 scanner and the Verisurf Scan Data Reverse Engineering Suite is the right tool set for any 3D reverse engineering project that begins with importing point cloud or mesh scan data.  The suite features an extensive set of tools for managing, merging, hole filling, smoothing, filtering, meshing, and surfacing both point cloud and mesh data. Because all Verisurf solutions are CAD-based, the suite also includes an extensive set of tools for completing a clean, smooth and water tight, printable STL file or a fully featured solid model with detailed drawings and intelligent GD&T.

3D Metrology Software, Training and CMMs
3D Metrology Software, Training and CMMs

Reverse Engineering and Inspection

For general purpose scanner applications, the Peel 2 scanner paired with the Verisurf Reverse Engineering and Inspection software suite offers ultimate flexibility to support any workflow. Quickly generate detailed reports and colored model plots that illustrate conformance or deviations between scan data and the original or reverse-engineered CAD model based on tolerance limits.

Metrology Education

The Metrology Education Suite for educational institutions includes all Verisurf modules at a fraction of the cost. Exclusively for the needs of technical educators and their students, the Metrology Education Suite presents students with the opportunity to develop the metrology skills employers seek.

The Verisurf Metrology Education Suite is a premium software bundle suitable for performing a broad spectrum of metrology tasks. It is the logical next step to extending popular CAD/CAM training programs to include reverse engineering, tool building, and inspection skills development.  Import all common 3D geometry file types, connect to any common scanner, fixed or portable measuring device, or work offline with imported point cloud or mesh files. Can be used for both scan– and probe-based inspection, tool building, reverse engineering, CMM programming, guided assembly, and more – the Verisurf Metrology Education Suite has it all.

3D Metrology Software, Training and CMMs

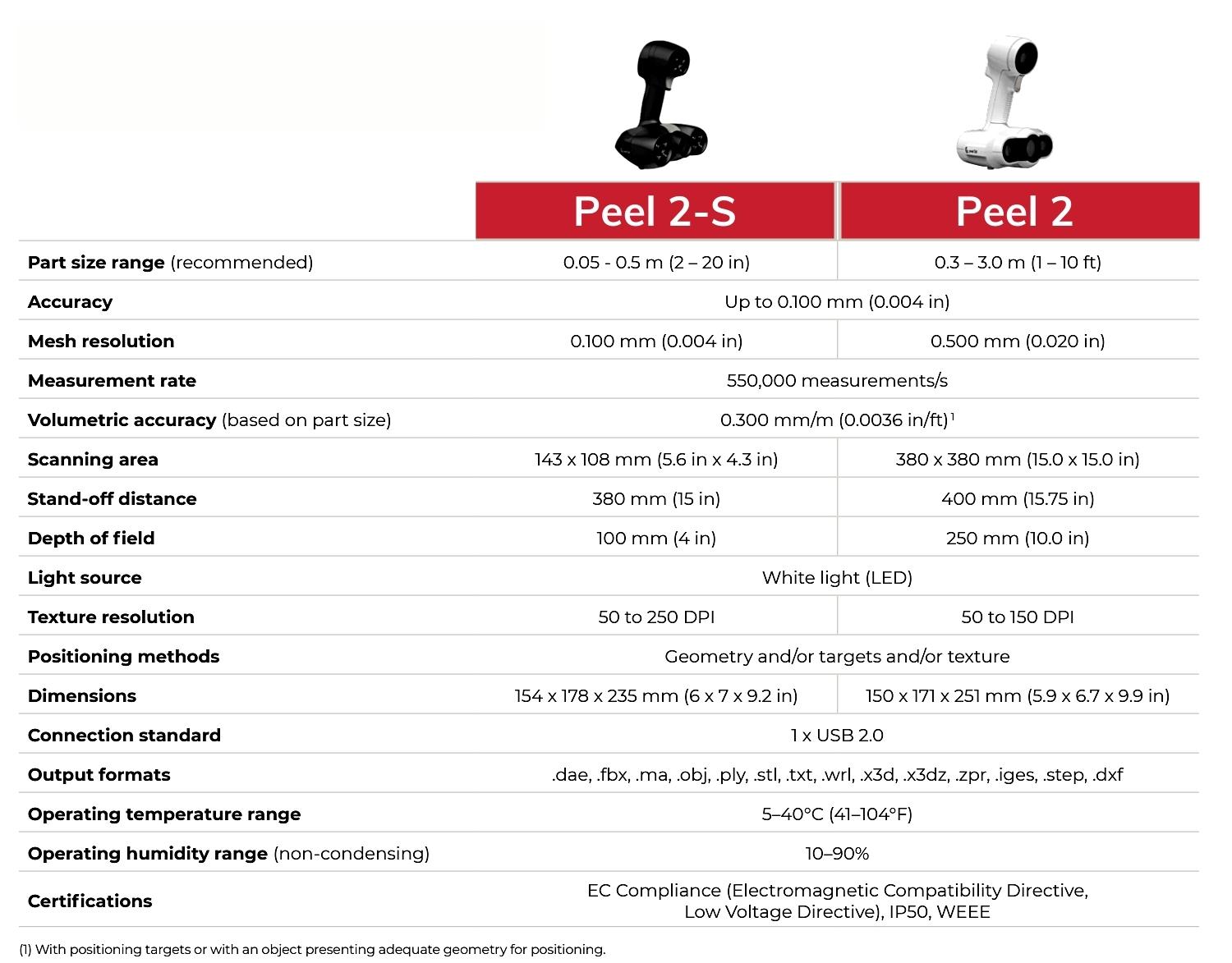

Parameter

Peel 2 Scanner

Part size range (recommended)

0.3 – 3.0 m (1 – 10 ft)

Accuracy

Up to 0.250 mm (0.01 in)

Mesh resolution

0.500 mm (0.020 in)

Measurement resolution

0.250 mm (0.010 in)

Measurement rate

550,000 measurements/s (1)

Volumetric accuracy (based on part size)

0.500 mm/m (0.006 in/ft)

Scanning area

380 x 380 mm (15.0 x 15.0 in)

Stand-off distance

400 mm (15.75 in)

Depth of field

250 mm (10.0 in)

Light source

White light (LED)

Colors

24 bits

Texture resolution

50 to 150 DPI

Positioning methods

Geometry and/or targets and/or texture

Weight

950 g (2.1 lb)

Dimensions

150 x 171 x 251 mm

Connection standard

1 x USB 2.0

Output formats

.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr

Operating temperature range

5–40°C (41–104°F)

Operating humidity range (non-condensing)

10–90%

Certifications

EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE

(1) With positioning targets or with an object presenting adequate geometry for positioning.
