Fast, Powerful Alignment of 3D Scan Datasets
High-performance 3D scanning alignment with any combination of clouds, meshes, and CAD models.

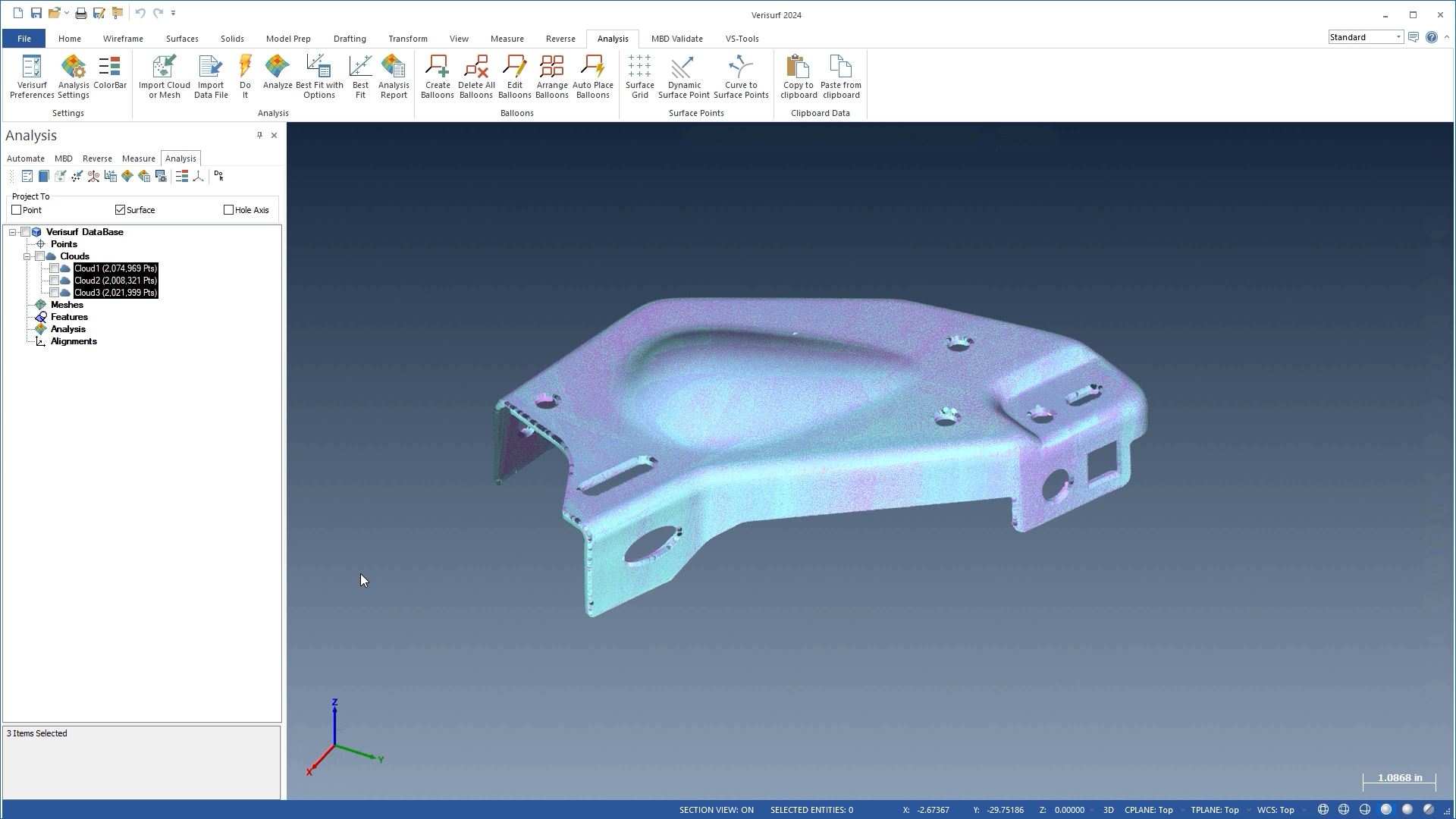

Enhanced Global Register
Verisurf maximizes the speed and accuracy of global registration with RAPID SAMPLING.

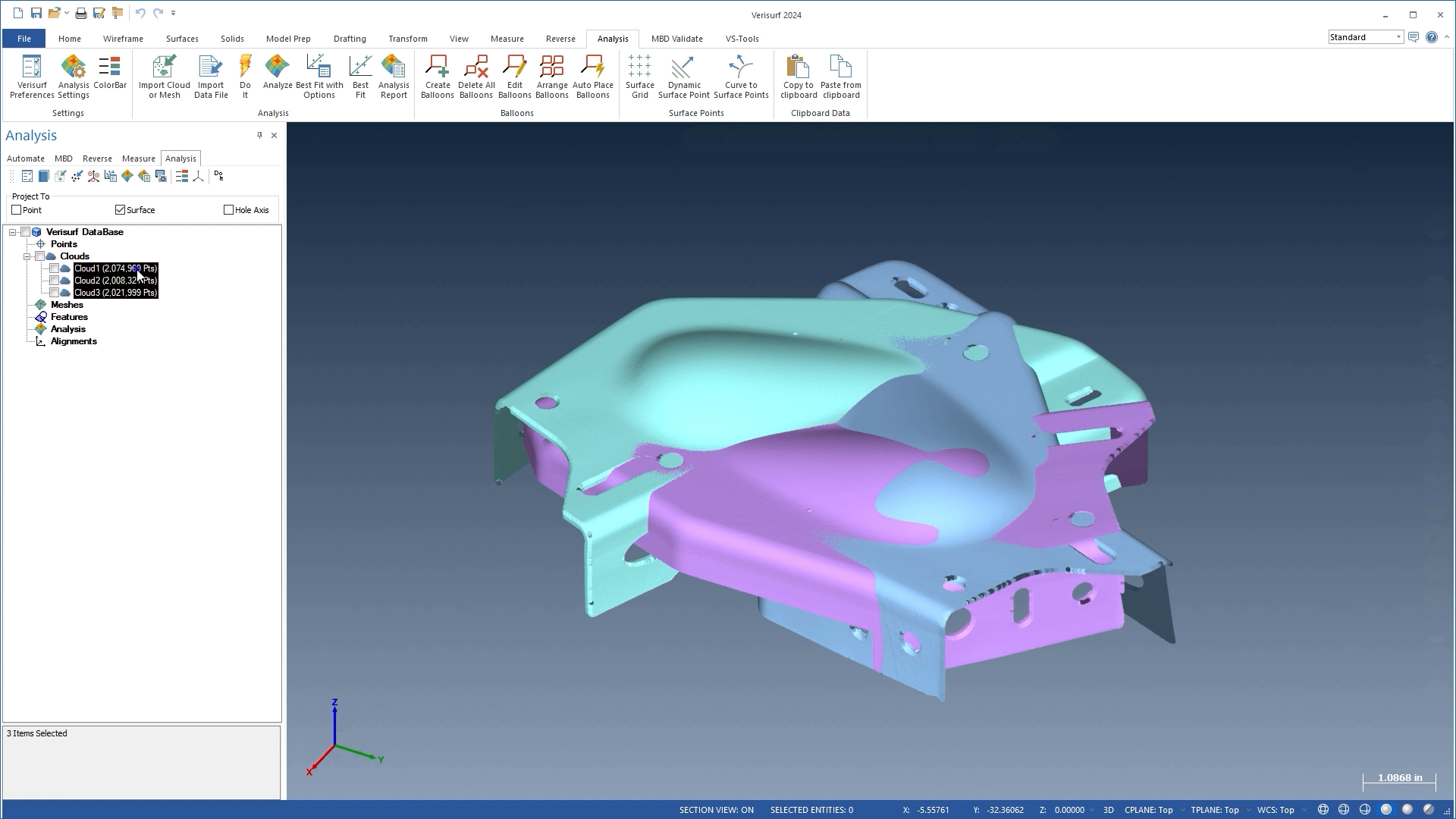

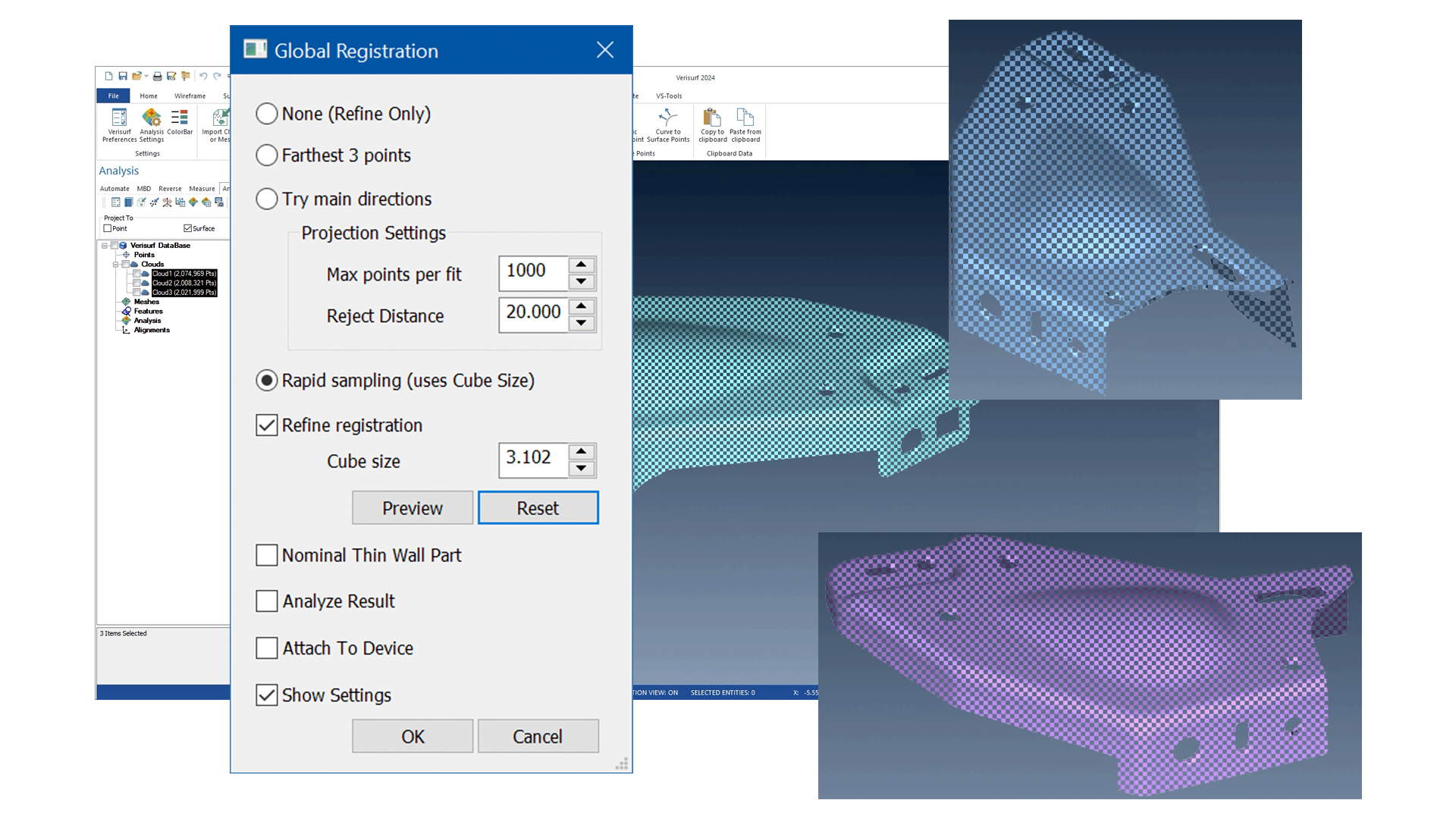

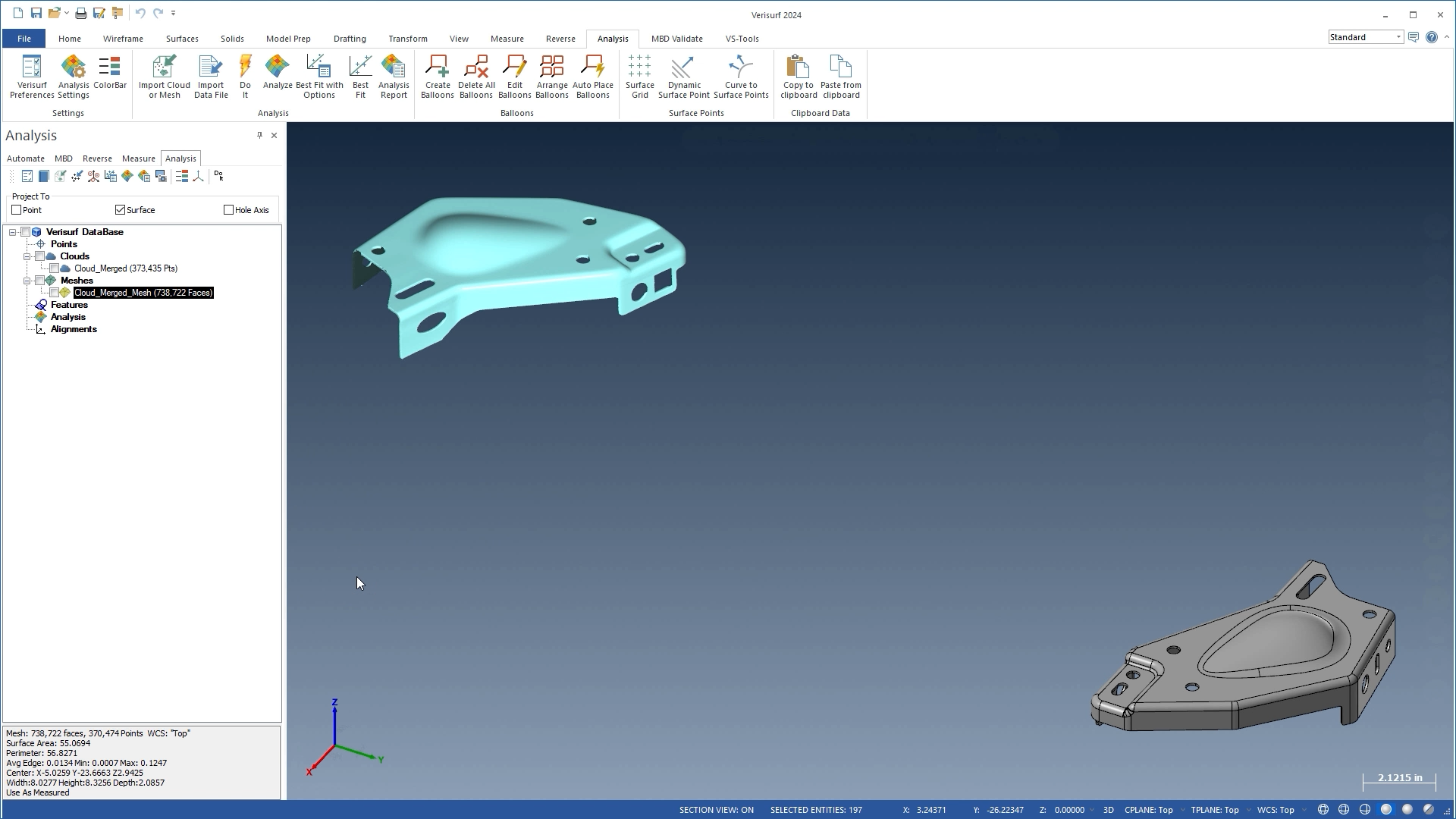

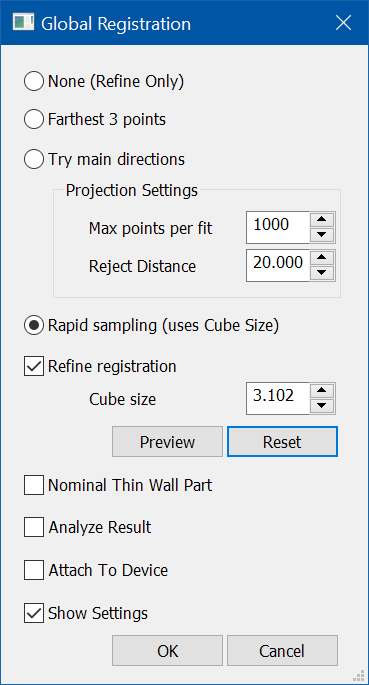

Verisurf improves the speed and accuracy of GLOBAL REGISTRATION through the addition of RAPID SAMPLING. GLOBAL REGISTER, used in the Reverse, Measure, and Analysis managers, features an option to align data sets by automatically sampling the appropriate cubic volumes from each set and then matching the cube patterns to provide a fast, robust alignment. RAPID SAMPLING works with any combination of clouds, meshes, and CAD models. With Verisurf, engineers and manufacturers can achieve Fast Alignment of 3D Scan Data, streamlining workflows and ensuring precise results.

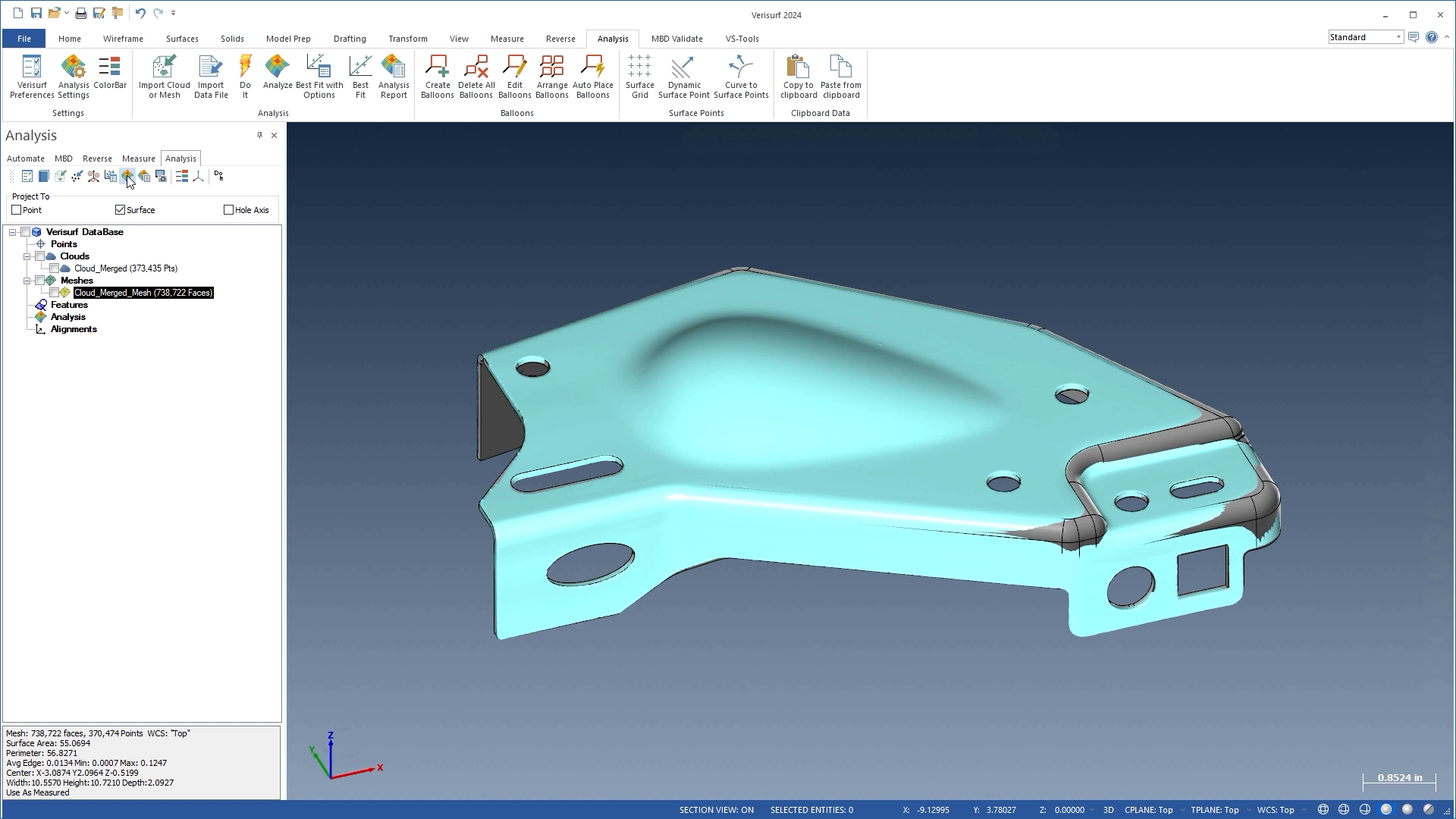

GLOBAL REGISTRATION also includes an option to refine the registration to improve the alignment between data sets. This fine tuning serves the same purpose as REGISTER TO NOMINAL and REGISTER CLOUDS AND MESHES to each other, but it’s much faster, and can be performed from within the GLOBAL REGISTER dialog. These enhancements provide a fast, accurate and reliable way to align and analyze data to a model.
The speed of ANALYSIS for large scan datasets is faster than ever!

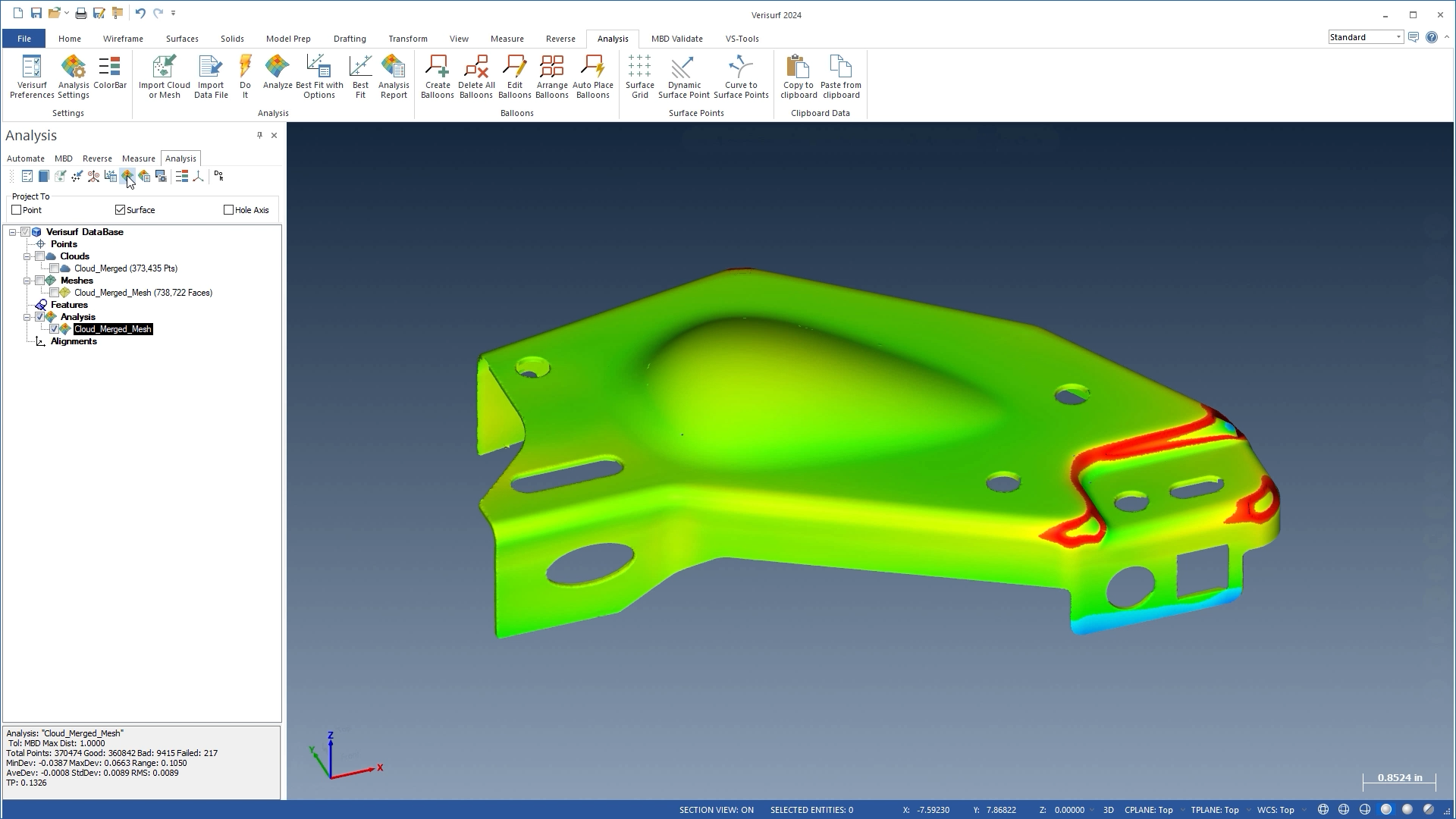

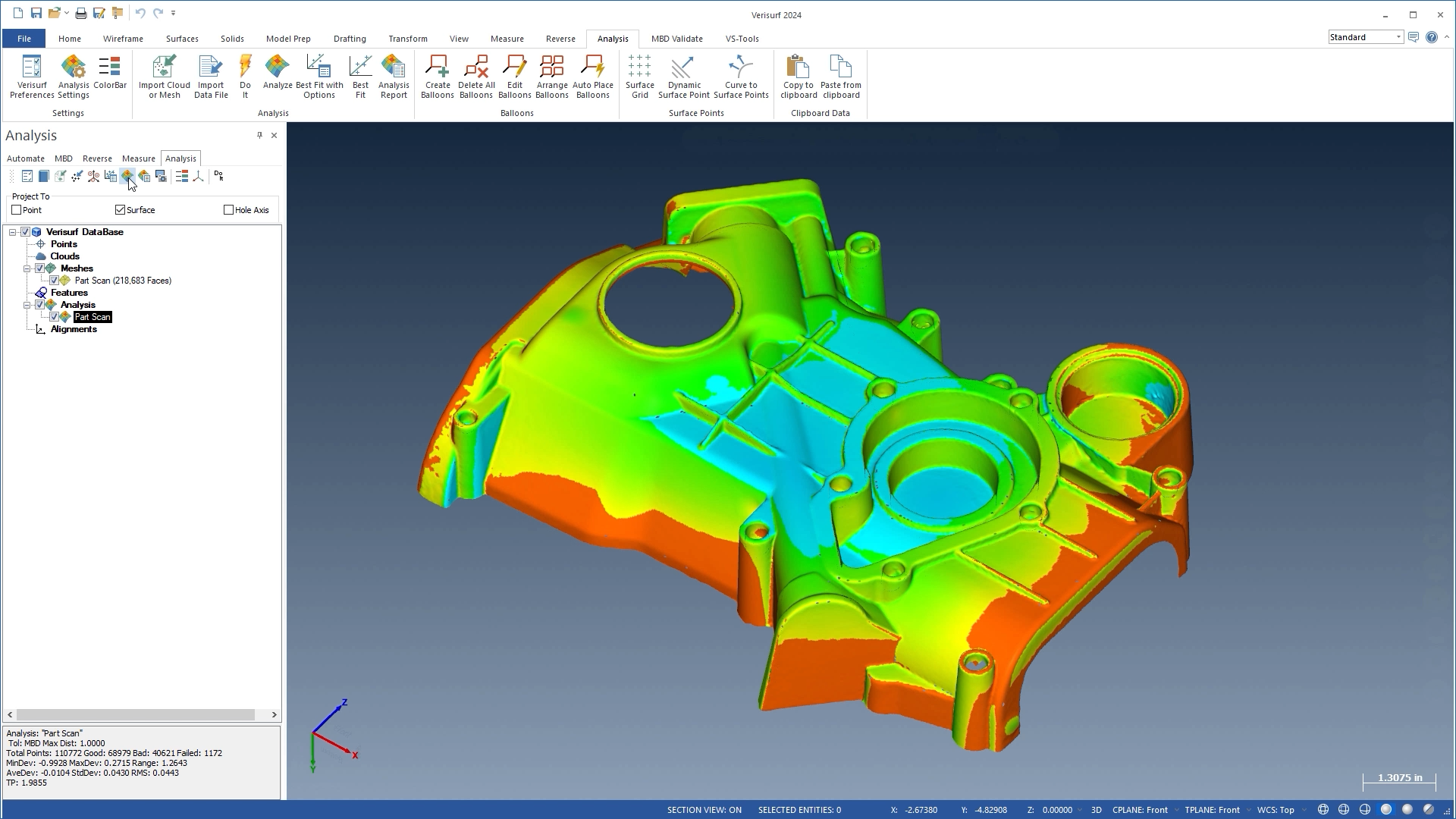

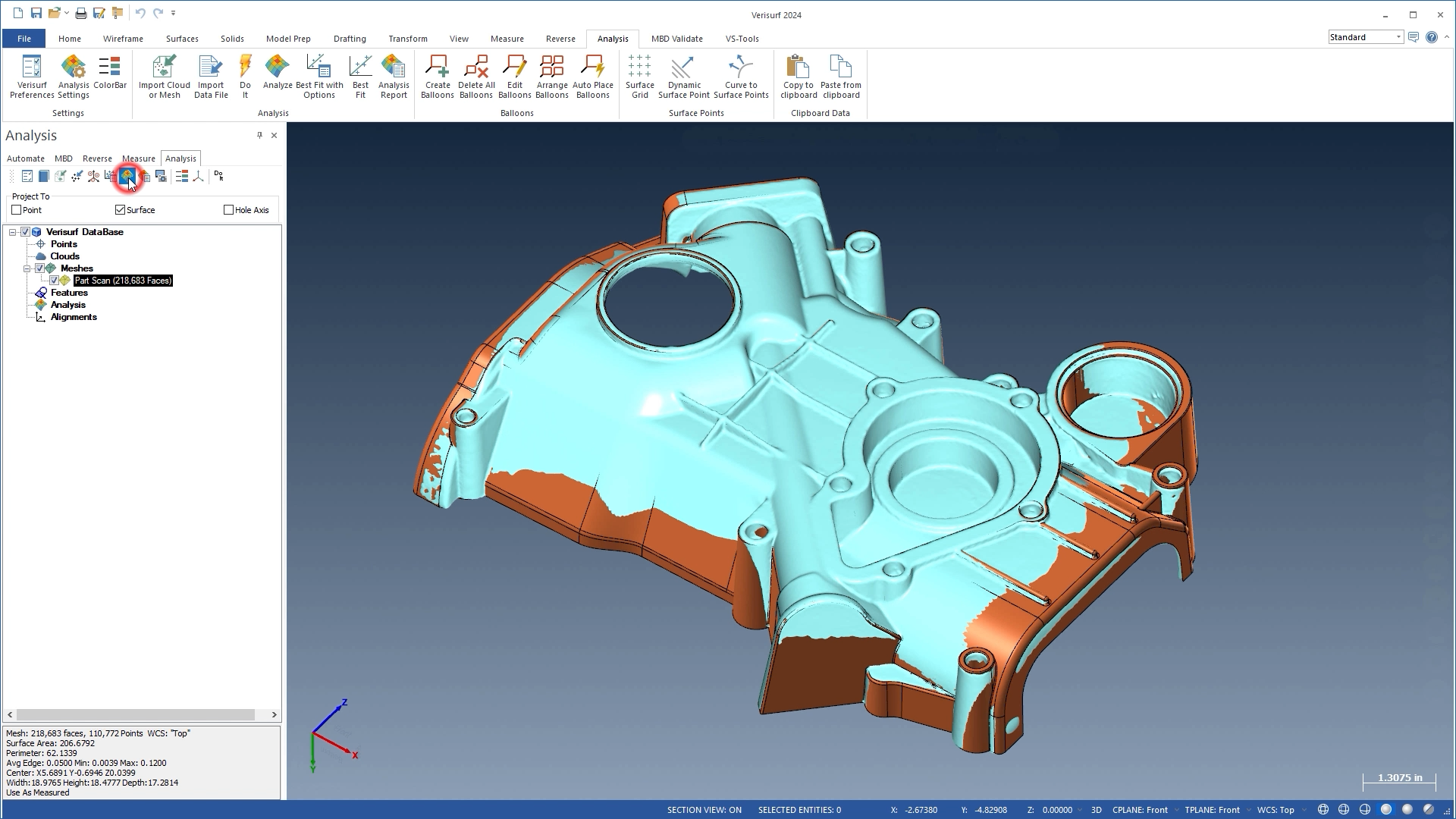

The speed of ANALYSIS has been dramatically improved since earlier versions, making it super-fast and easy to scan, align, analyze, and report using massive data sets in both manual and automated inspections. This capability not only improves inspection speed but also delivers Fast Alignment of 3D Scan Data across complex parts and assemblies.
3D SCANNING TYPICAL MEASUREMENT HARDWARE
Structured Light
Portable CMM
Scan Arm
Handheld
Optical Tracker-Scanner
