Automated 3D Scanning Inspection Optimized For Data Extraction
Pre-Built Plans for Automatic 3D Scanning Inspection
Scan, Feature-Fit, Solve & Analyze – Then Report
Verisurf optimizes 3D scanning inspection with advanced controls for scanned data pre-selection and advanced controls for CAD-based extraction.

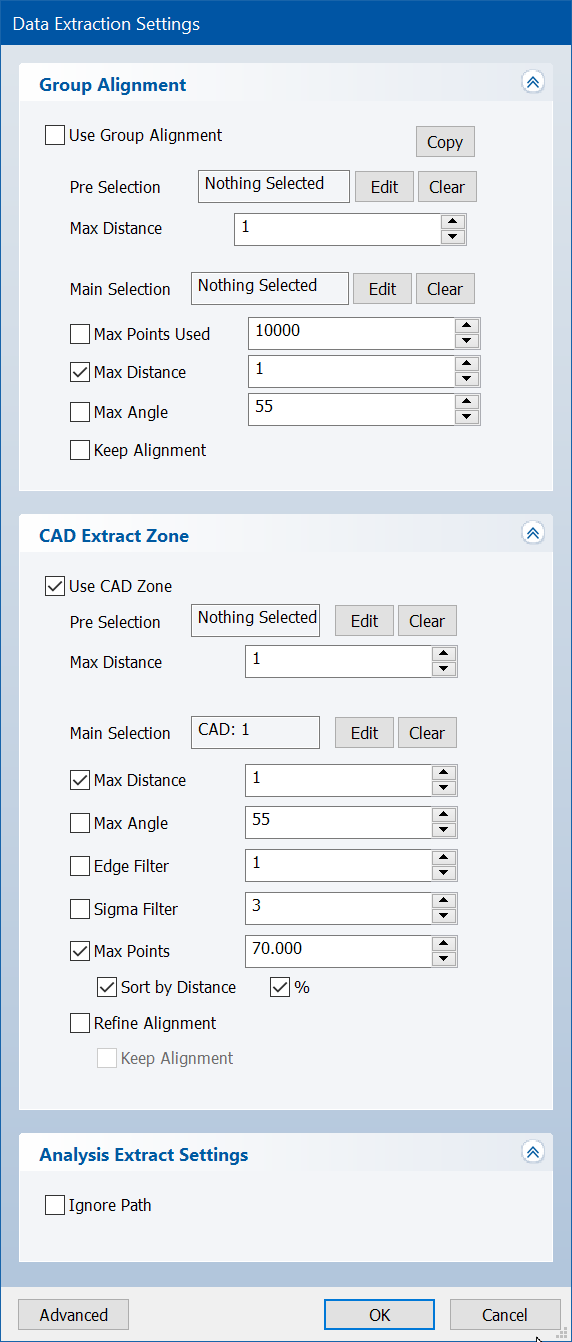

Group Alignment and CAD-Based Extraction Pre-Selection Filter of Scanned Data
Verisurf fine tunes CAD-based extraction through the use of a pre-selection filter for scan data. Pre-selection enables more advanced extraction strategies by allowing the main selection to operate on subsets of the scan data, and it improves extraction efficiency by processing only the required data.

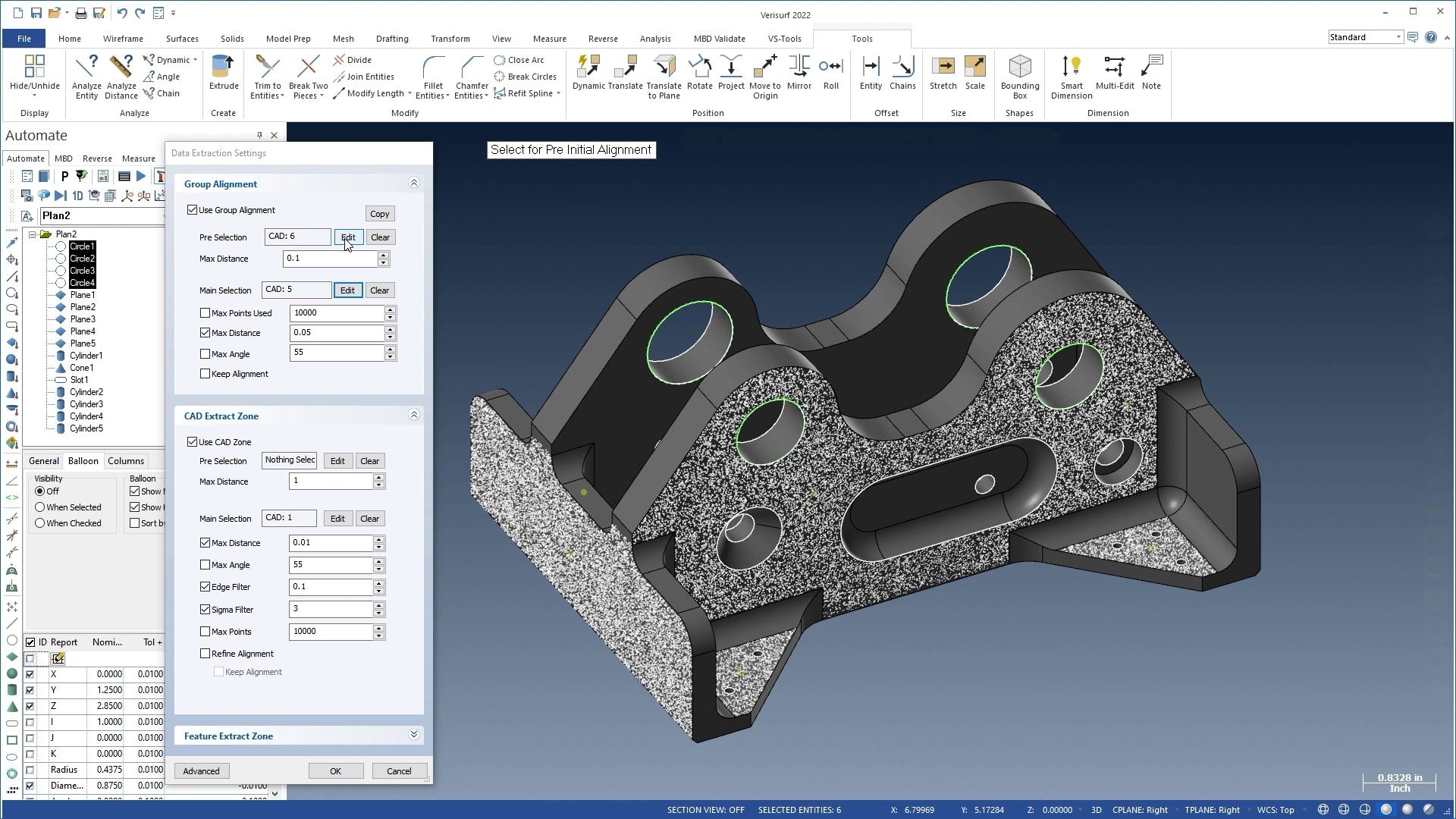

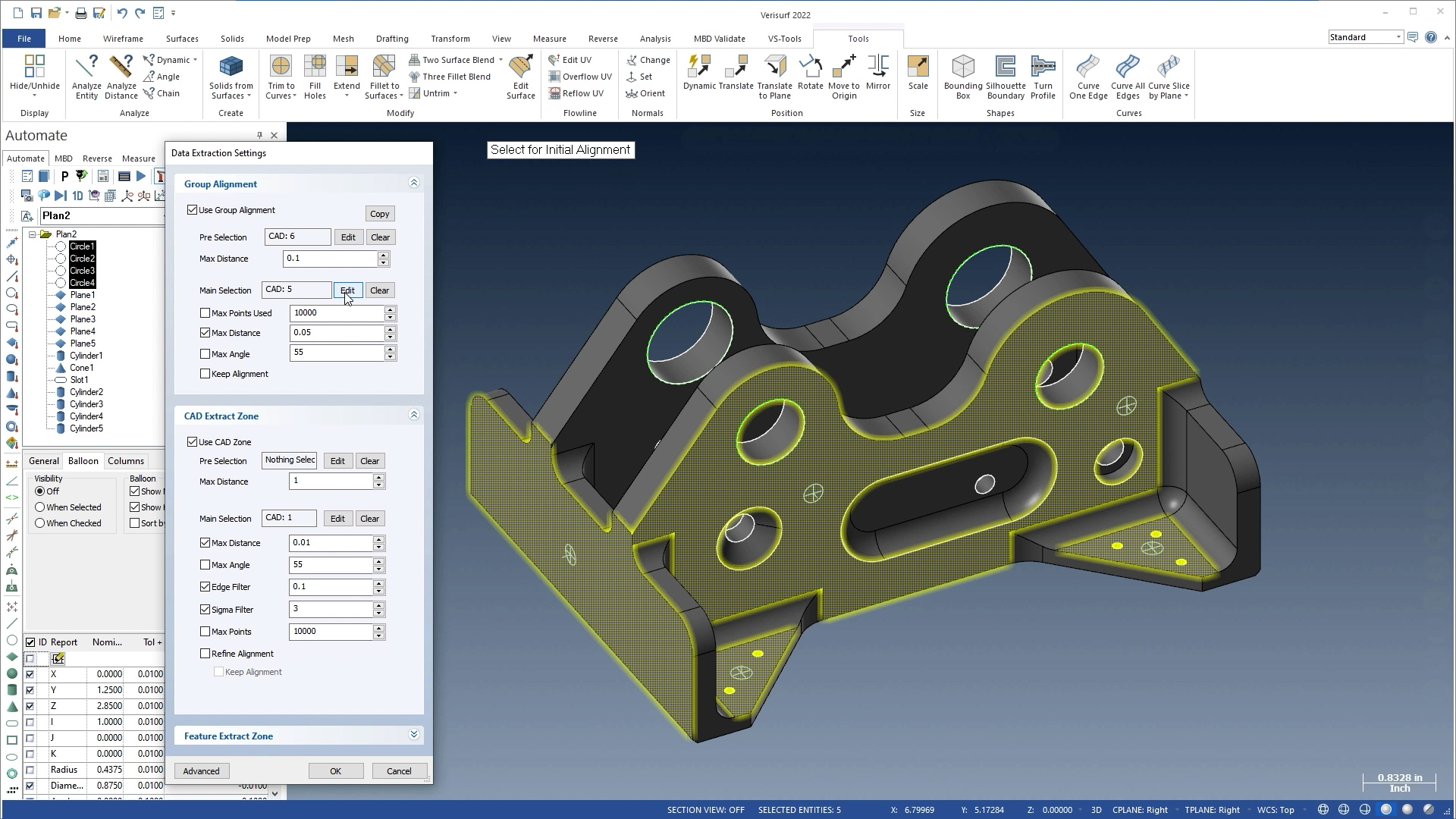

Pre-selection is used with group alignment to first filter the scan data based on proximity to the pre-selection CAD entities, such as datum targets. This subset is then registered to the main selection, such as CAD surfaces.
Using two-stage selection in this case enables automation of non-contact 3-2-1 alignment prior to feature extraction. Pre-selection can also be used to filter the CAD extraction zone prior to fitting or analysis.
Pre-Selection of Planar Section Cuts for Analysis of Contour Profile Slices

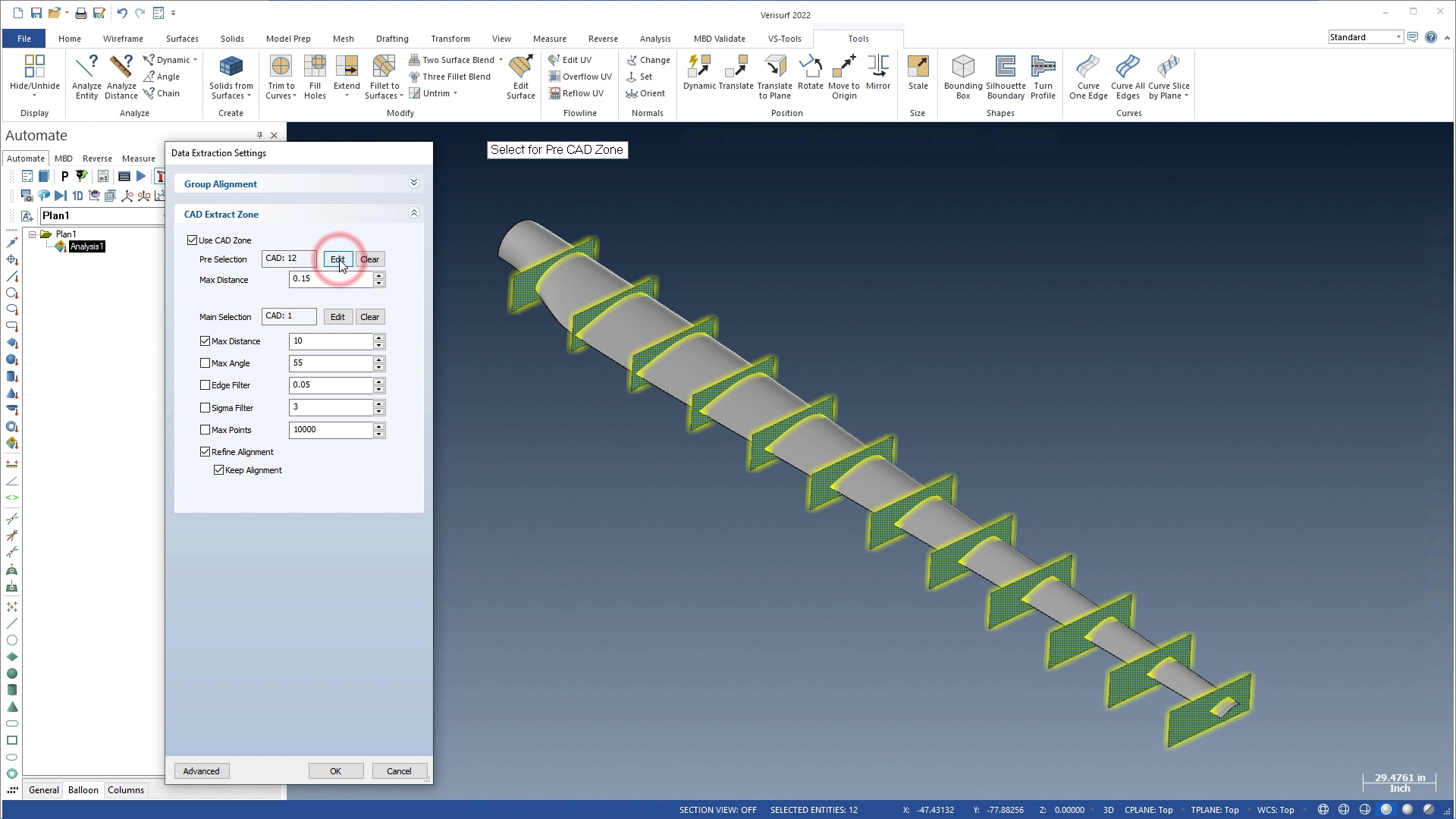

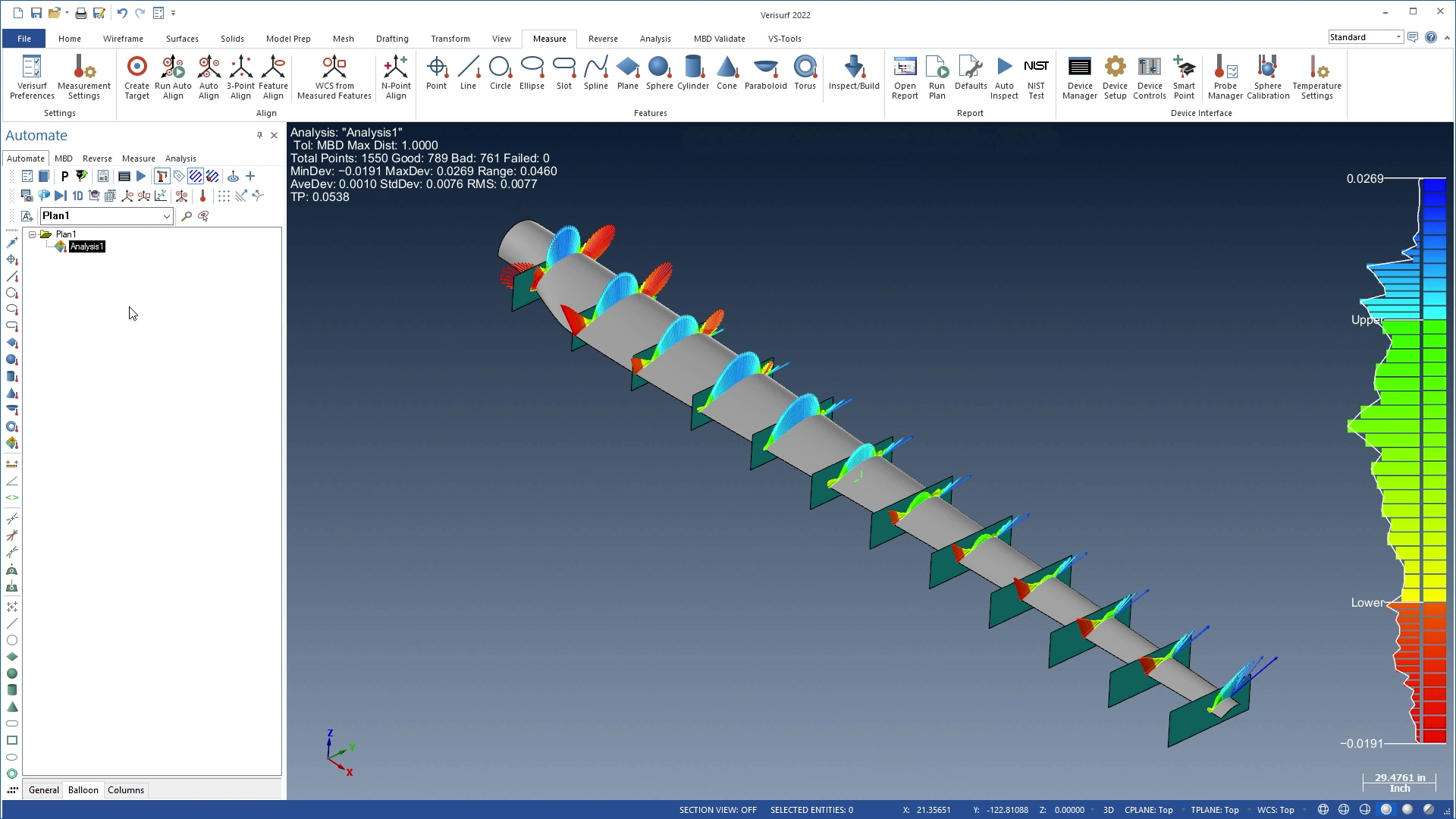

For example, section planes can be used to pre-select profiles from the scan data. These profile slices are then compared to the main CAD selection as an Analysis. Here, two-stage selection enables automation of the line or surface profile in a single operation.
