3D Mesh Controls for Inspection and Reverse Engineering

3D Mesh Controls for Inspection & Reverse Engineering

For fast and easy mesh and cloud merging, alignment, and optimization.

3D Mesh Controls

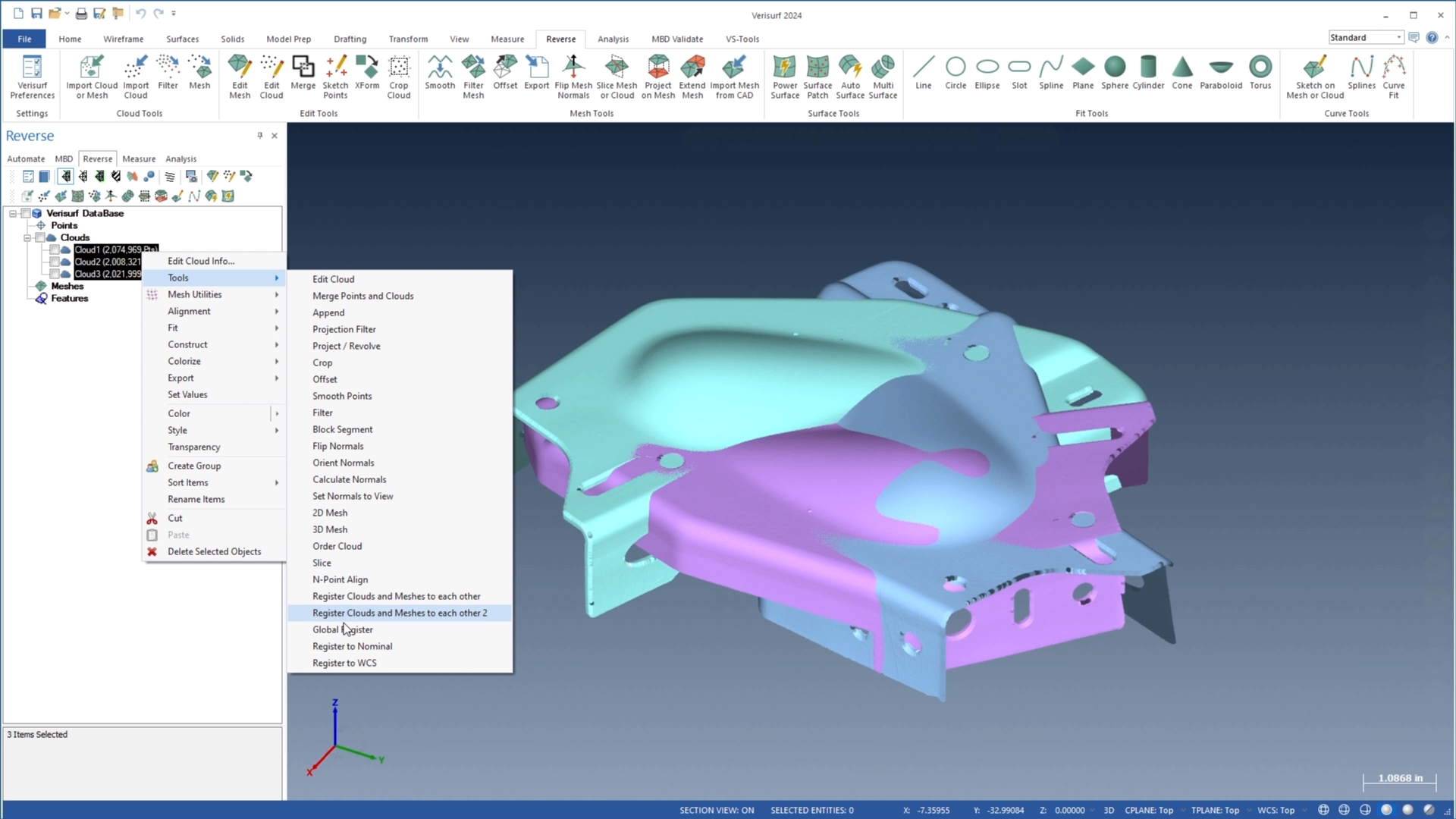

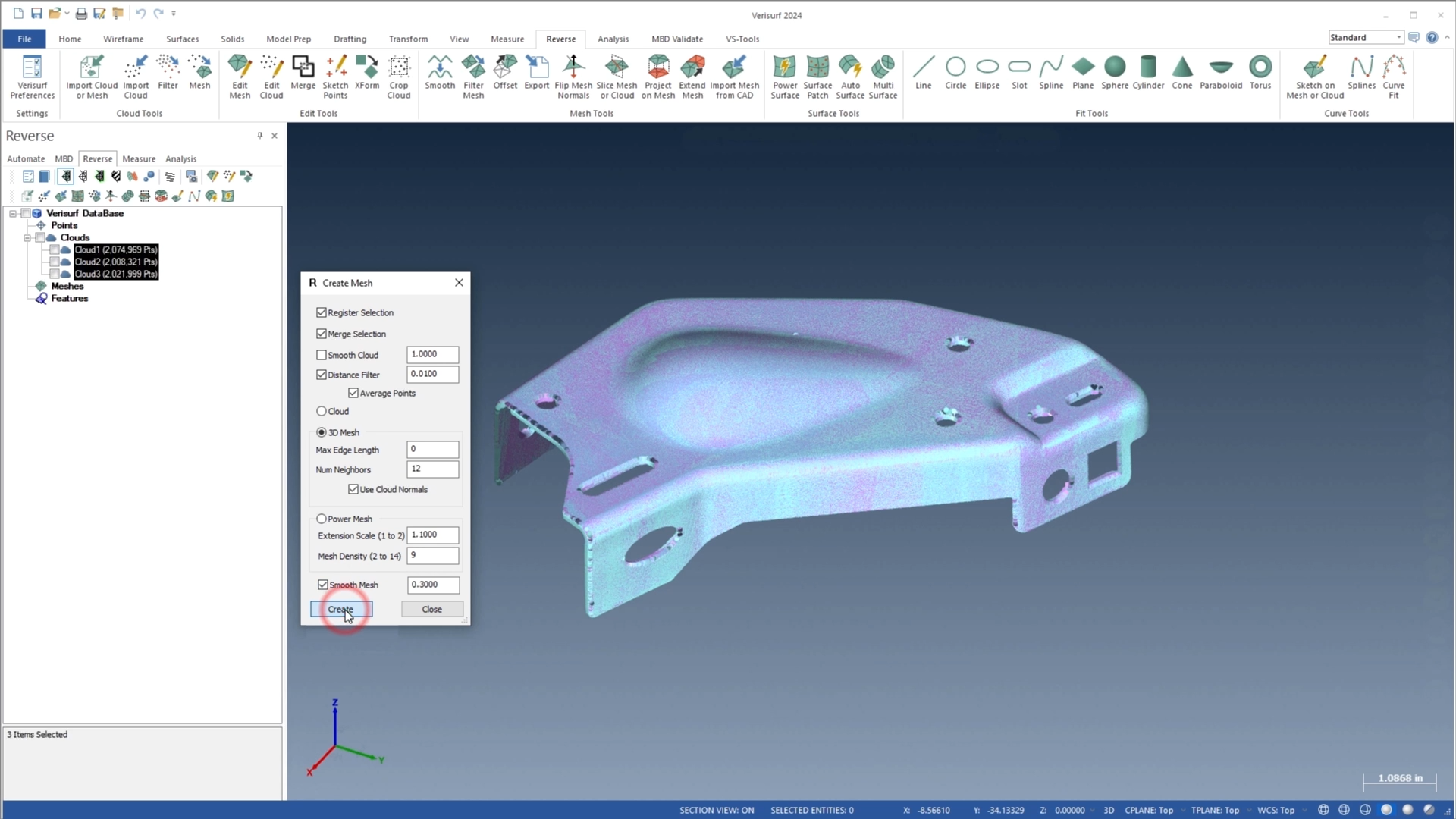

Verisurf features controls that streamline the creation of 3D meshes from clouds. When meshing multiple, overlapping clouds, the 3D mesh dialog includes an option to refine the cloud alignment to minimize noise generated during merging and meshing.

Fast and Accurate Meshing

In addition, the meshing algorithm can use the cloud’s normal vectors to increase the speed and accuracy of meshing.

Additional, Powerful Mesh Features

A cloud option enables registration, merging, smoothing, and filtering of clouds for workflows that require a single clean cloud instead of a mesh; and a Power Mesh option, improves the user experience by offering all meshing options in a single dialog.
