Portable Coordinate Metrology for Large Cast Part Machining

Machining large parts, especially castings, is not for everyone.  The generalization ‘parts are parts’ does not apply in this case.  To be proficient requires commitment to constant process improvement, equipment evaluation and investment.  And to top it off, mistakes are very expensive.

There are unique challenges associated with machining large parts, today.  Customers are demanding ever tighter tolerances, parts are large, heavy and quite often castings.  Increasing quality and efficiency is a tall order – how can you do both?  TCI Precision Metals approached  the challenge by analyzing variables of the machining process that directly affect quality and consume the greatest amount of time. The result focused on three key areas:
  1. Cutting metal more of the time
  2. Reducing part movement
  3. Maintaining a digital workflow
When machining large parts such as composite mold tooling for aerospace, or large castings for oil and gas, there are typically large surface areas involved.   Compensating for high spots on a wing mold or variances between castings can result in cutting air for hours, days or even weeks.  Being too aggressive or a miscalculation can result in tool crashes or worse.  The goal is to keep the tool cutting more often.

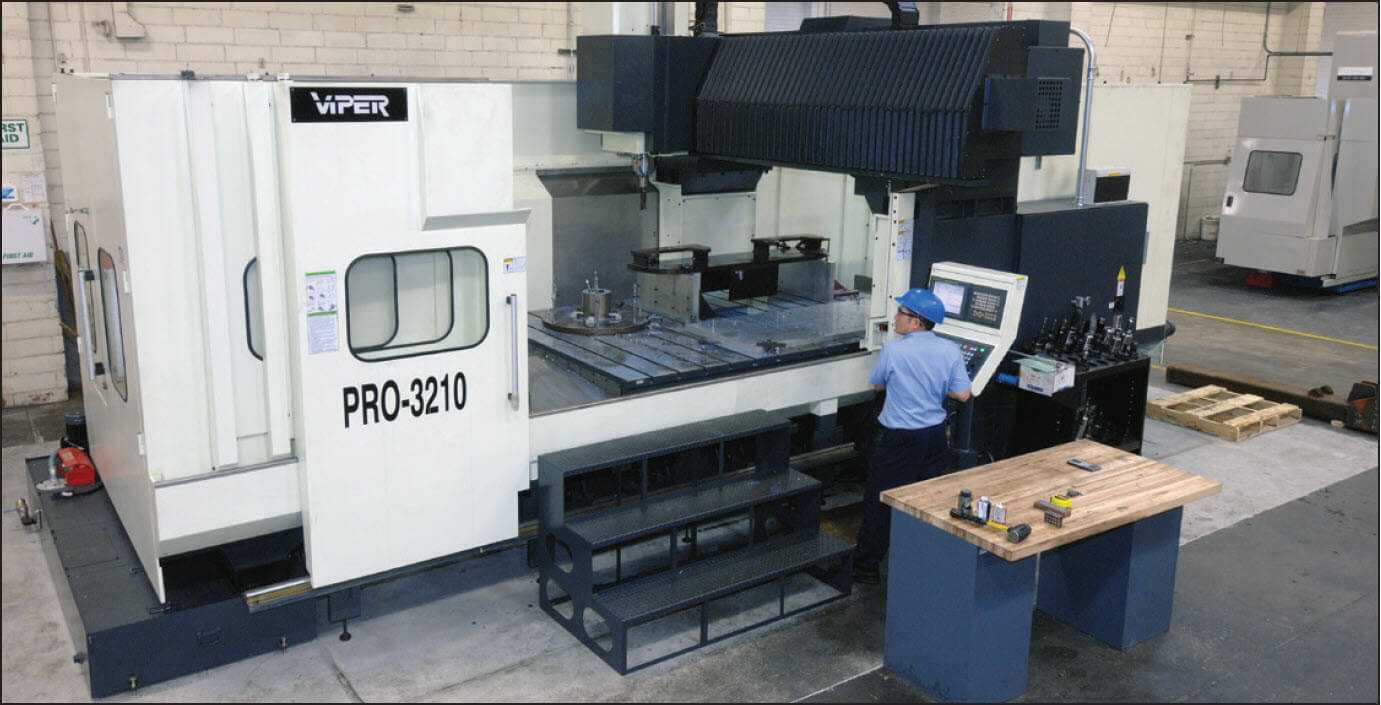

Moving a large part from the machining center to the quality inspection room, then back to the machining center, then re-fixturing and aligning for modification takes considerable time.  Not to mention the chance of damaging the part and risk of injury associated with moving large parts around the shop.  If you can place a large part in the machining center once and remove it only when it is completed and verified, you will save considerable time and effort.  Machine Operators will remain focused on completing the part at hand and avoid distractions associated with switching out parts, re-fixturing, alignment and all the potential for error that goes along with it.

Closing the loop on digital workflow is the key to improving the quality inspection and reporting process.  The CAD process is digital, the CAM process is digital, so it makes perfect sense that the quality inspection and reporting process should be digital too.  By comparing inspection data back to the original 3D CAD model,  the loop is closed and the digital integrity is maintained.

Refined Processes and a Flexible Metrology Solution Solves All Three Objectives

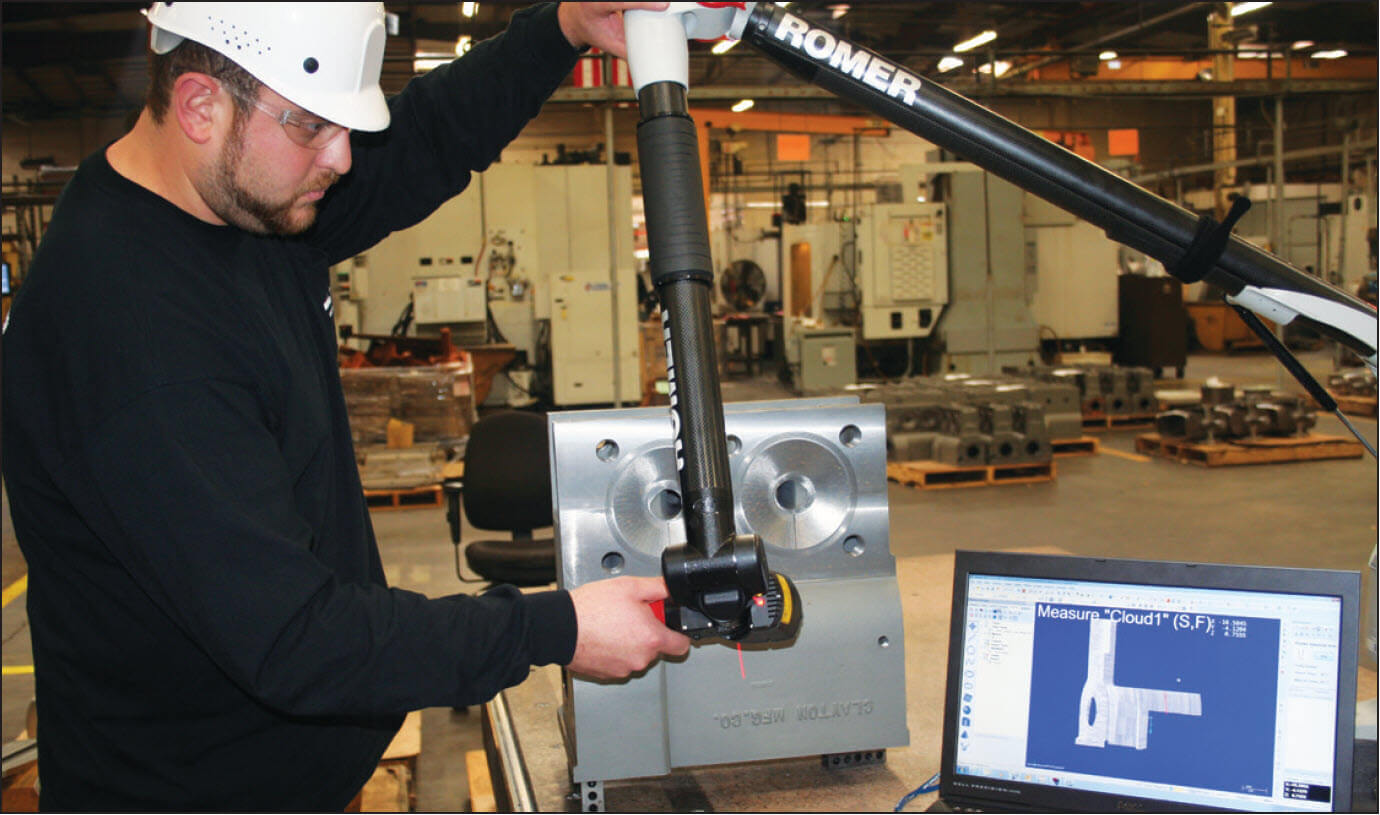

Coordinate Metrology Engineers for Verisurf Software worked with TCI to implement best practices for each of the three challenge areas.  At the core of the solution was VerisurfX Software running a portable CMM with optional scan head.  By having the standard touch probe and optional digital scan head, the device is capable of both point-based inspection and scanning to a point cloud data set.

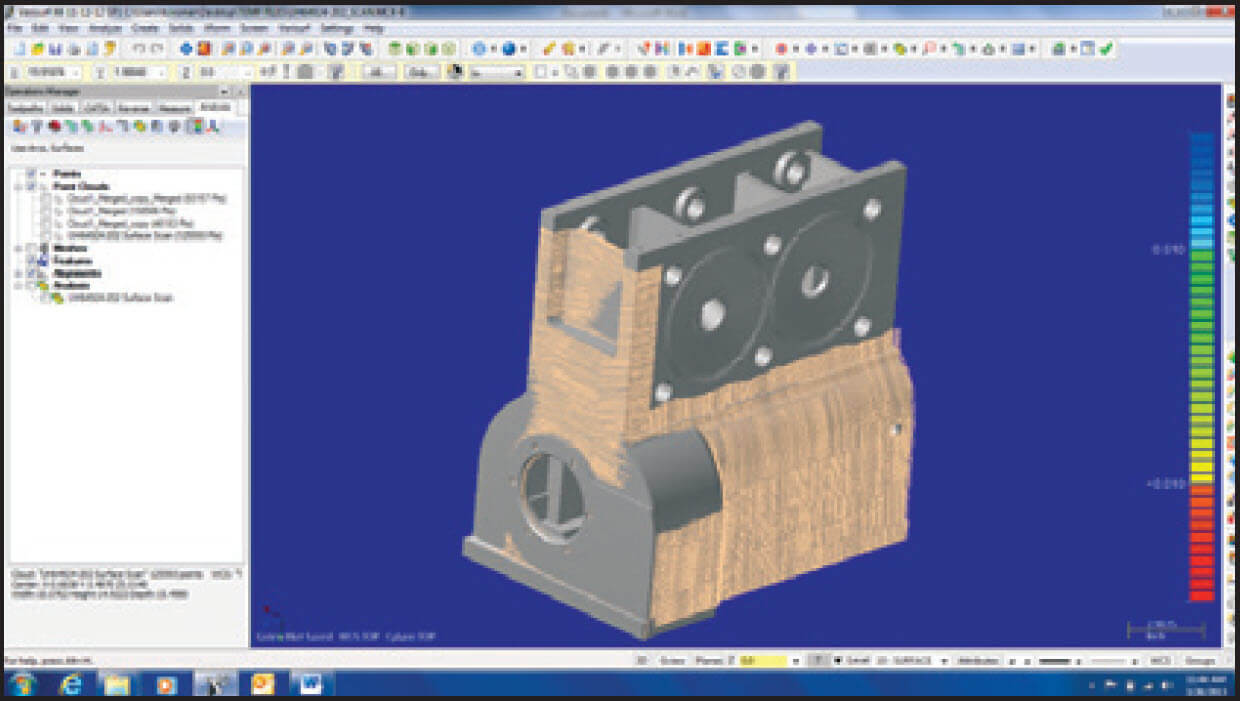

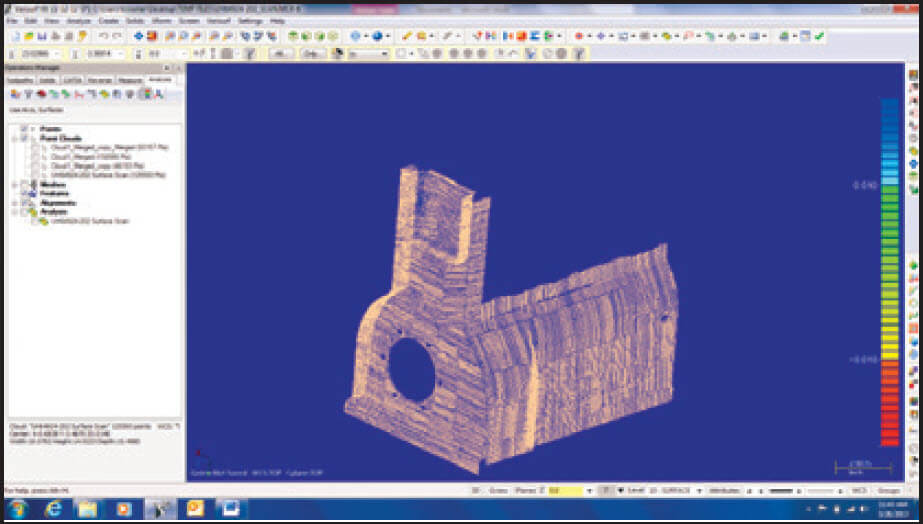

Cutting metal more of the time.  When a batch of large cast parts are received for finished machining, a sample group of the parts are painted (a term used for scanning because it is similar to painting the part with a wide brush) using the CMM with scan head.  The data is captured as a point cloud by Verisurf Reverse Software where it is then converted to a precise CAD model.  The differences between the ‘as cast’ part can now be digitally compared to the ‘as designed’ part, allowing the machine tool path to be optimized to cut metal more of the time while avoiding tool crashes.  The tool path can also be modified to start cutting specific high points vs. cutting air over the entire part.

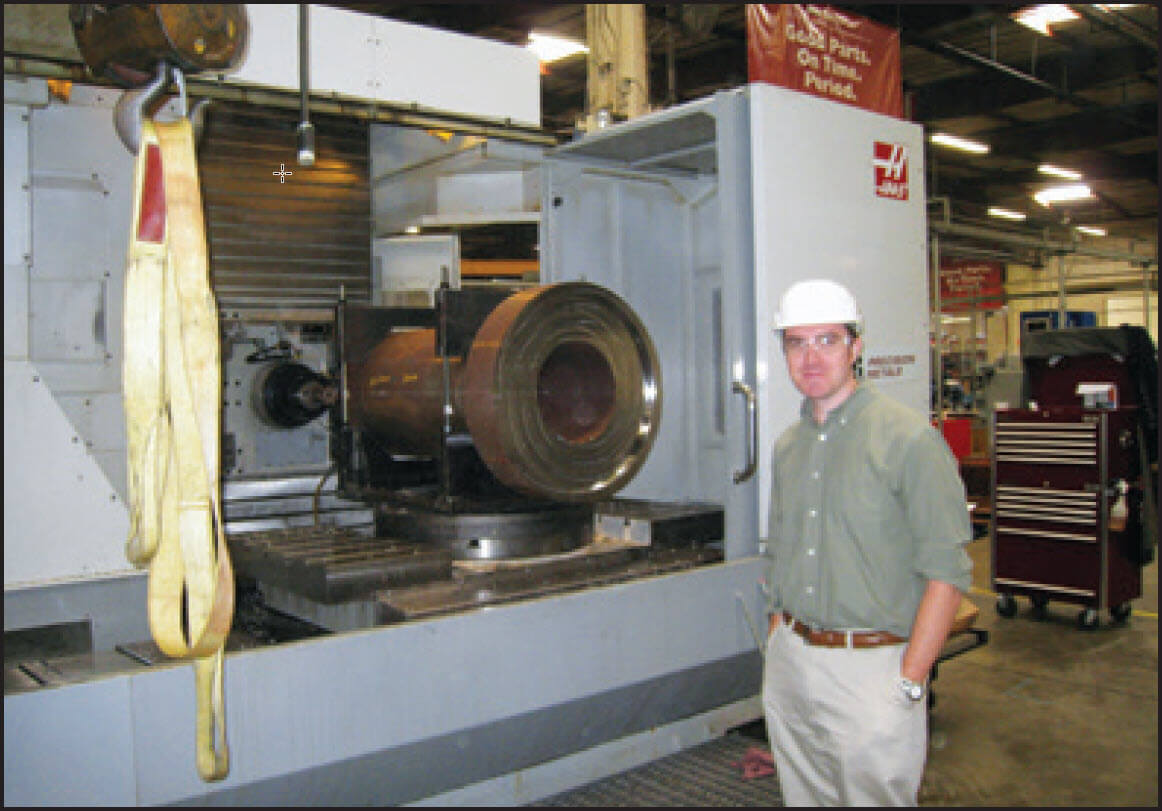

Reducing part movement.  Part movement begins with alignment and fixturing the part to the table.  By quickly probing a few relational points on the physical part with the portable CMM (using probe tip instead of scanner attachment) and running a simple alignment routine, the software can tell the machine the exact placement and orientation of the part on the table. Once the machining process is complete the portable CMM and Verisurf software is used to quality inspect the part, in process.  There is no need to move the part; the portable CMM with a laptop computer goes right into the machining center.  If the part is out of tolerance, just pull back the CMM and modify the part.  No need to re-fixture or re-align.

Maintaining a digital workflow.  Because Verisurf Software accepts virtually all 3D CAD files, the design integrity of the part remains in digital form all the way through the manufacturing, inspection and reporting process.  The software accepts model-based GD&T Product Definition Data, also known as Product Manufacturing Information (PMI), directly from the 3D CAD file. GD&T annotations can also be user defined. Product definition data includes geometry, topology, relationships, tolerances, attributes and features necessary to completely define a component part or an assembly of parts for the purpose of design, analysis, manufacture, test and inspection.

TCI Precision Metals is committed to producing large high quality parts for its customer’s.  The Company regularly evaluates ways to improve processes and overall quality from an objective and practical point-of-view.  Every new tool or technology must be tested and documented as to its contributions towards a leaner, higher quality environment, before making its way into the workflow.
