Fast and Easy Inspection Plans from Scanned Data

Fast and Easy Inspection Plans from Scanned Data

Scan Data Automatic Feature Extraction To Inspection Plan

Verisurf simplifies plan creation by automatically extracting features from scanned point clouds and meshes.

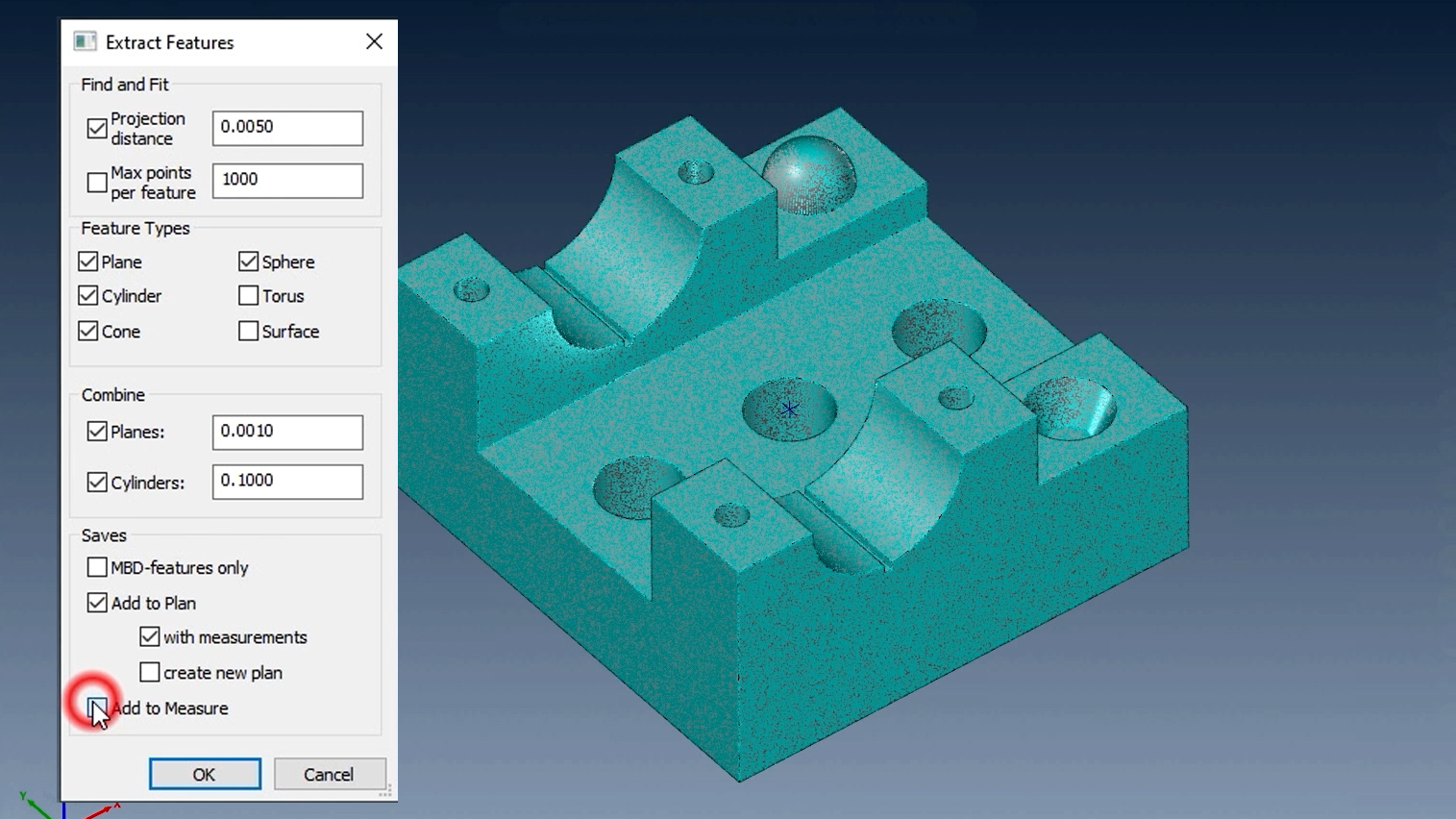

An option to extract features from scanned point clouds and meshes for an inspection plan provides an easy, fast, and reliable way to create plans for analyzing part conformance using scanned data. Features are extracted based on their projection to corresponding entities in the model, and pre-selection can be used to limit extraction to specific features.

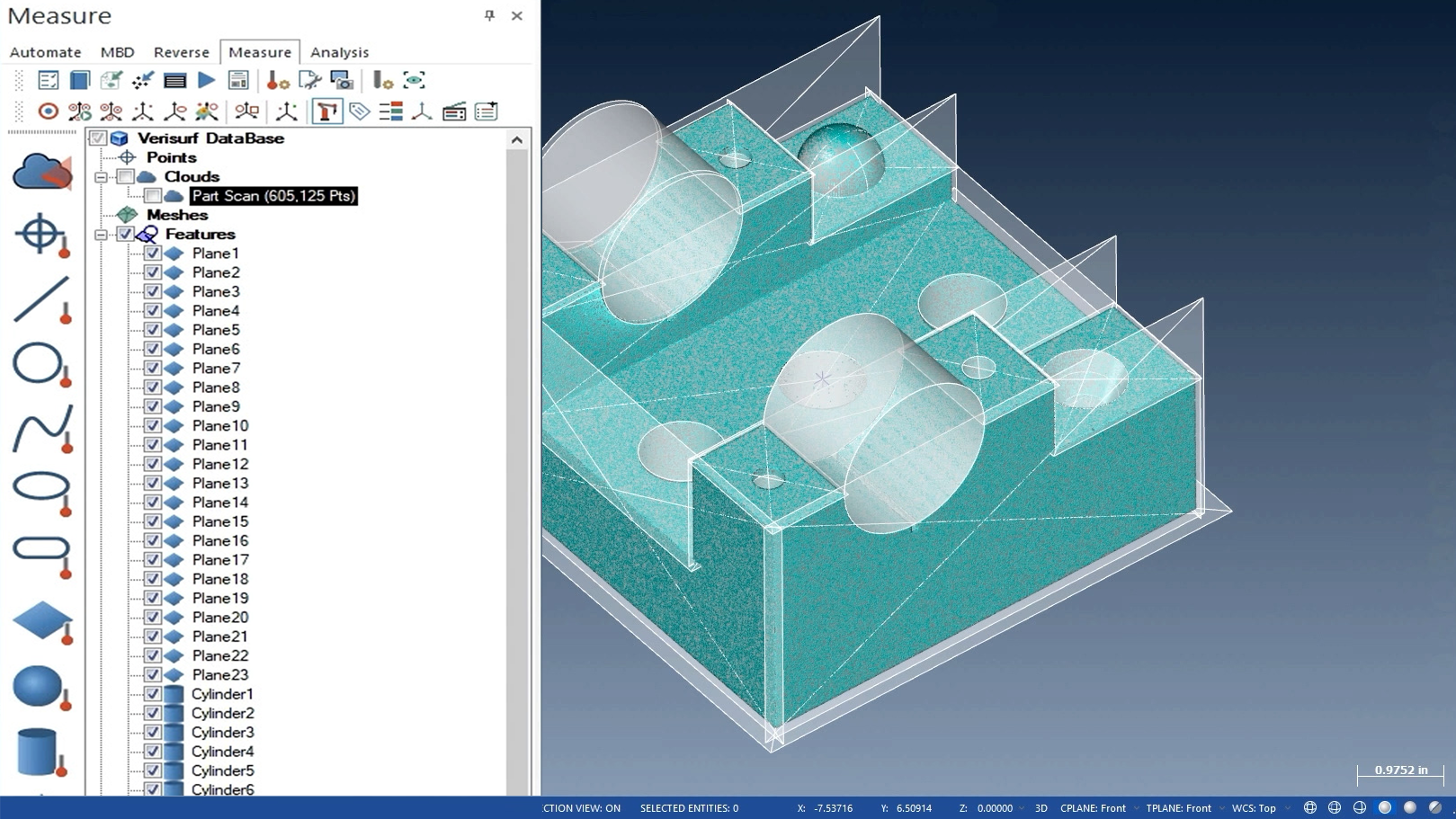

All 3D geometry is supported including free-form surfaces and co-linear cylinders, and co-planar planes can be extracted as single features. Extracted features can be added to an inspection plan with or without measurements derived from the scan and can be added to the Measure Manager for immediate evaluation and reporting.

If the CAD model contains MBD callouts, extraction can be limited to only those features that are designated for inspection.
